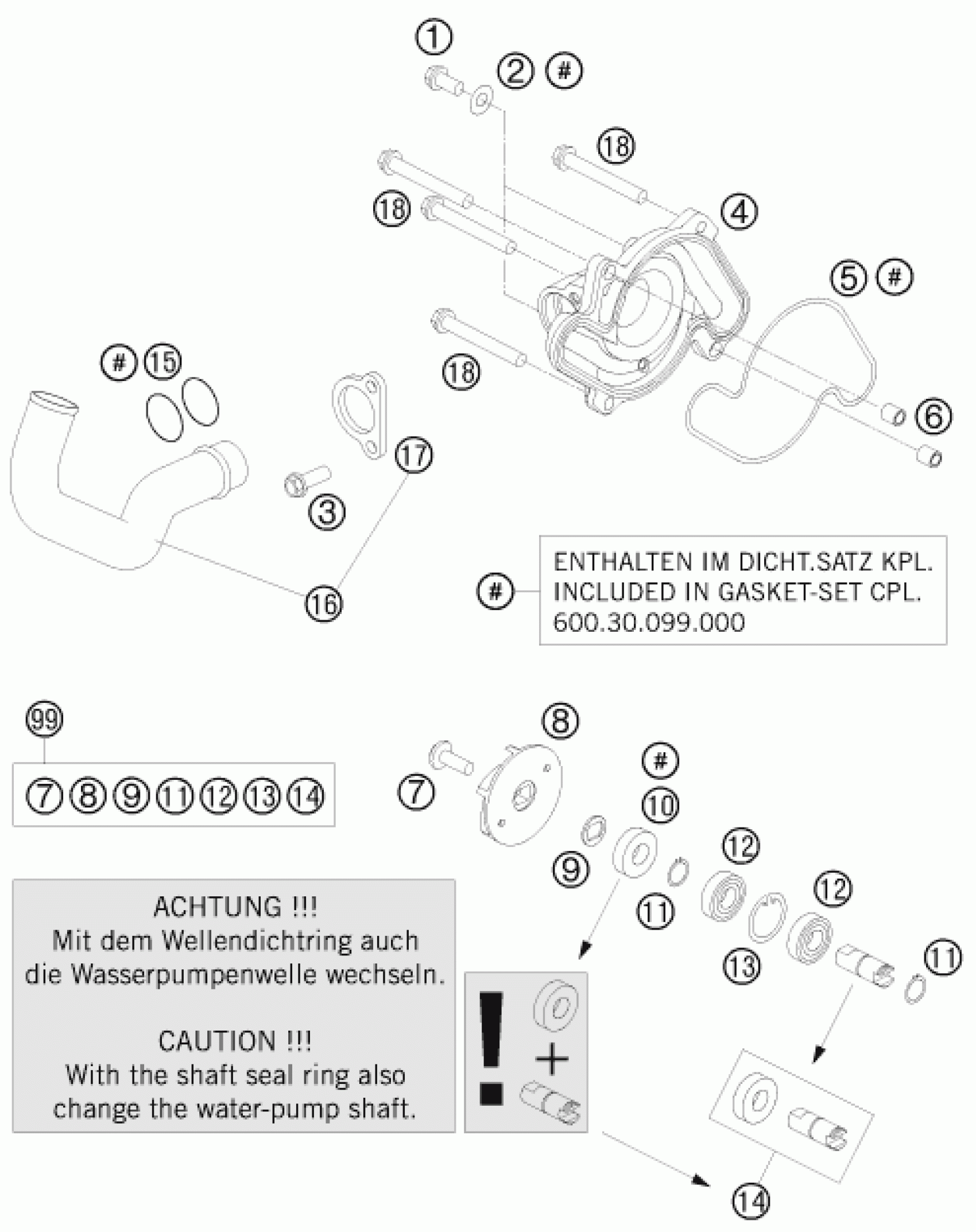

KTM 990 SUPER DUKE ANTHRAZIT 07 <2007> WATER PUMP Diagram

#

Description

Price

1

HH COLLAR SCREW M 6X10 WS=8

0015060103

$3.08

2

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

3

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

4

WATER-PUMP COVER 03

60035052000

$52.58

5

WATER-PUMP GASKET 03

60035053000

$6.72

6

dowel sleeve 6x8x11.5

59030023000

$1.49

7

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

8

WATER-PUMP WHEEL LC8 03

60035055100

$6.44

9

double-d washer 16x1 SST

60035055150

$1.49

10

SHAFT SEAL RING 12X30X7 PTFE

0760123073

$12.52

11

retaining ring DIN 471 12x1

0471120010

$1.49

12

GROOVED BALL BEARING 6901V C3

0625069010

$20.37

13

CIRCLIP DIN472 D=24X1,2

0472240120

$1.49

14

WATER PUMP SHAFT W/ SEAL RING

60035054144

$64.04

15

O-RING 25,00X3,00 NBR 70

0770250030

$3.08

16

ALUMINUM TUBE WATER-PUMP+CLAMP

60035021000

$40.99

17

FIXING CLAMP WATER-P. TUBE 03

60035021050

$15.33

18

HH COLLAR SCREW M 6X60 WS=8

0015060603

$3.08

99

WATER PUMP REP. KIT 09-13

60035055010

Unavailable
