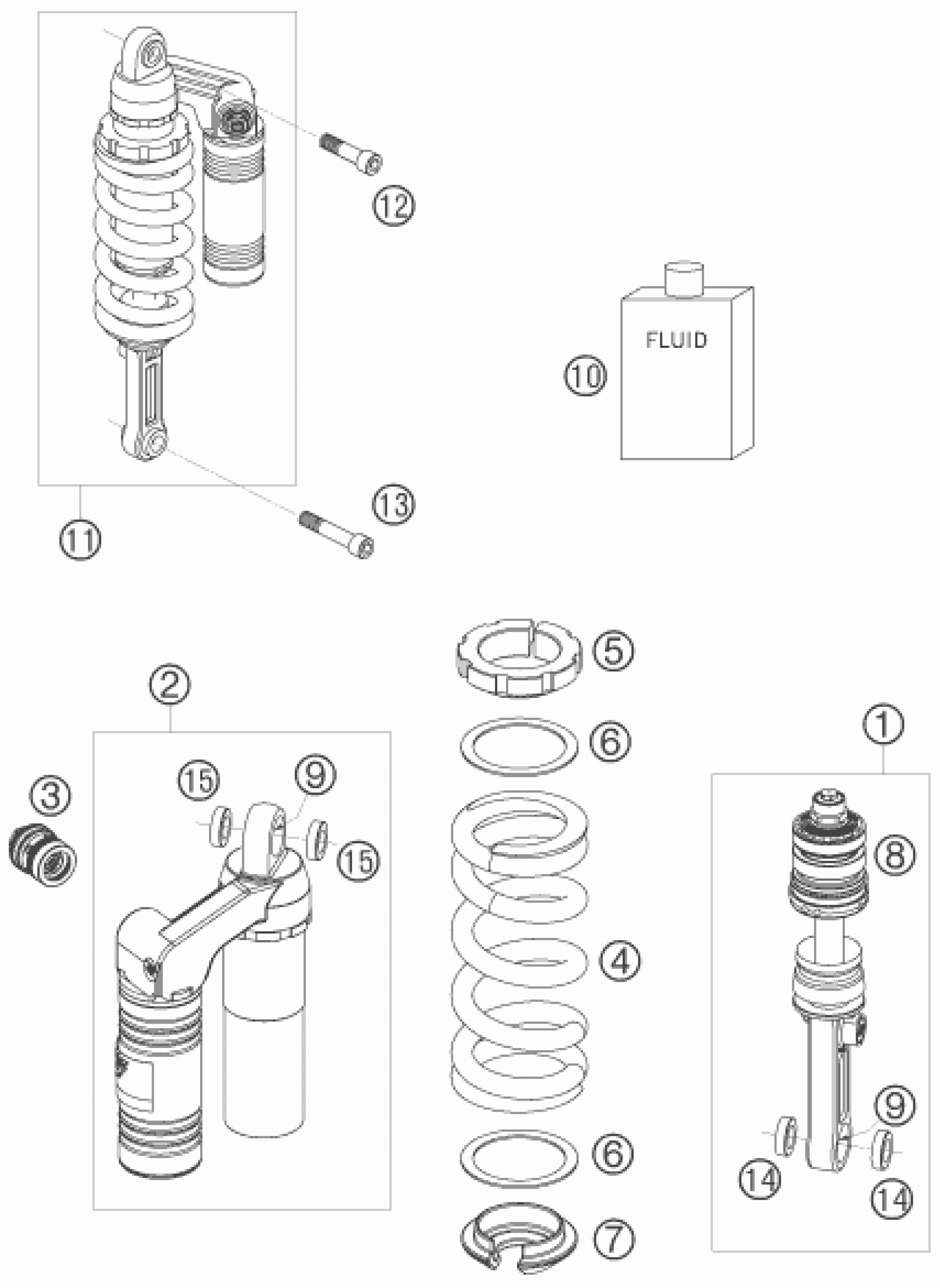

KTM 990 SUPER DUKE ANTHRAZIT 07 <2007> SHOCK ABSORBER Diagram

#

Description

Price

1

MONOSHOCK LOWER PART CPL. 05

46180364S1

Unavailable

4

SPRING (59) 160-185 D=13,5 07

91010077S

Unavailable

4

SPRING (59) 170-185 D 14 05

91010078S

$156.42

5

ADJUSTING NUT M52X1,5

46180394S

$249.90

8

REPAIR-KIT GASKET 05

R15002

$80.03

12

SCREW M14X1,5 L=55MM 03

60004016000

$3.08

13

SCREW M14X1,5 L=73MM 03

60004017000

$5.23

14

ADAPTOR BUSH KGW 14X32 07

46180362

$12.45

15

Bearing bush 14x15/18/24,5x10,

50180366

$13.94

2

MONOSHOCK CASE TOP 05

46180367S1

Unavailable

3

DCC-COMPR.DAMP.CONTROL CPL. 07

50180213S10

$107.97

4

SPRING (59) 180-185 D=14,0 07

91010079S

Unavailable

6

Washer 58,6x73,6x1,5

50180410

$4.11

7

Spring retainer 28x73x15

46180396

$61.42

9

REPAIR KIT BEARINGS 05

R15003

Unavailable

10

SHOCK ABSORBER FLUID 5 LT '03

50180342S1

$149.59

11

MONOSHOCK 990 SUPERDUKE 07

15187C01

Unavailable
