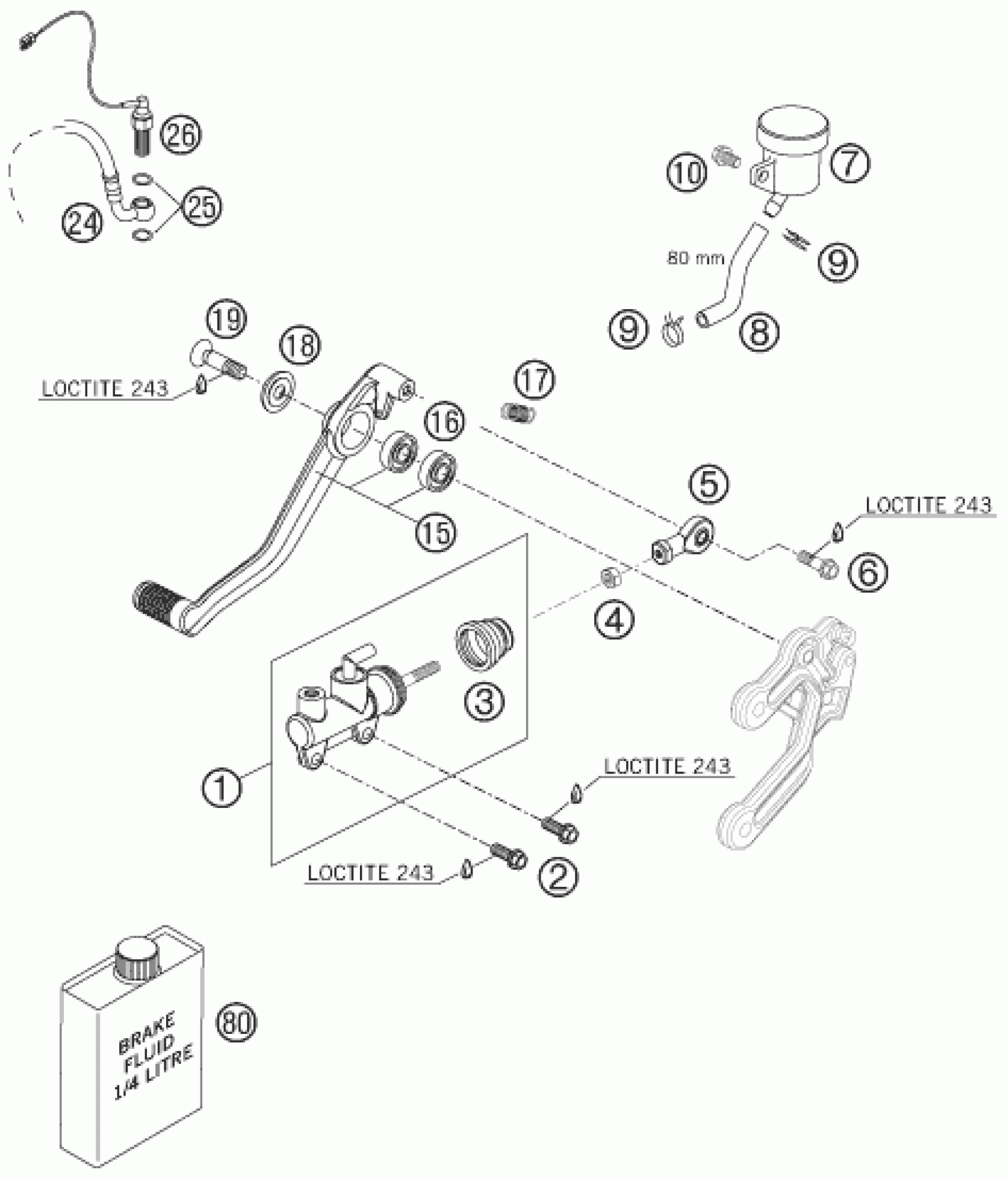

KTM 990 SUPER DUKE ANTHRAZIT 07 <2007 REAR BRAKE CONTROL Diagram

MAIN BRAKE CYLINDER 05

61013060000

$118.27

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

$2.05

CUP FOR MAIN BRAKE CYLINDER

61013064000

$4.66

Hex. nut DIN 934 M6

0934060003

$1.49

SWIVEL HEAD M6 FOOT BRAKE LEV.

54603069000

$37.20

SPECIAL SCREW M6X19 WS=8 10.9

59009062019

$2.05

reservoir, rear cpl.

61013069000

$16.07

HOSE FOR RESERVOIR 6X1,5

58007016101

$16.35

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

HH COLLAR SCREW M 6X10 WS=8

0015060103

$3.08

FOOT BRAKE LEVER CPL. 07

6101305004401S

$101.35

Grooved ball bearing 608 2RS C

0625006087

$21.40

SPRING FOOT BRAKE LEVER 05

61013052000

$3.08

SPECIAL WASHER ALU 8X24 MM ELO

58303061100

$6.07

FLAT HEAD SCREW M8X32 SL 05

61013059000

$1.49

BRAKE PIPE REAR 05

61013072000

$66.48

sealing ring DIN 7603 10x14x1

0603100141

$2.05

BRAKE LIGHT SWITCH REAR 05

61011051000

$36.27

Brake fluid DOT5.1 0,25L

00062030000

$12.52
