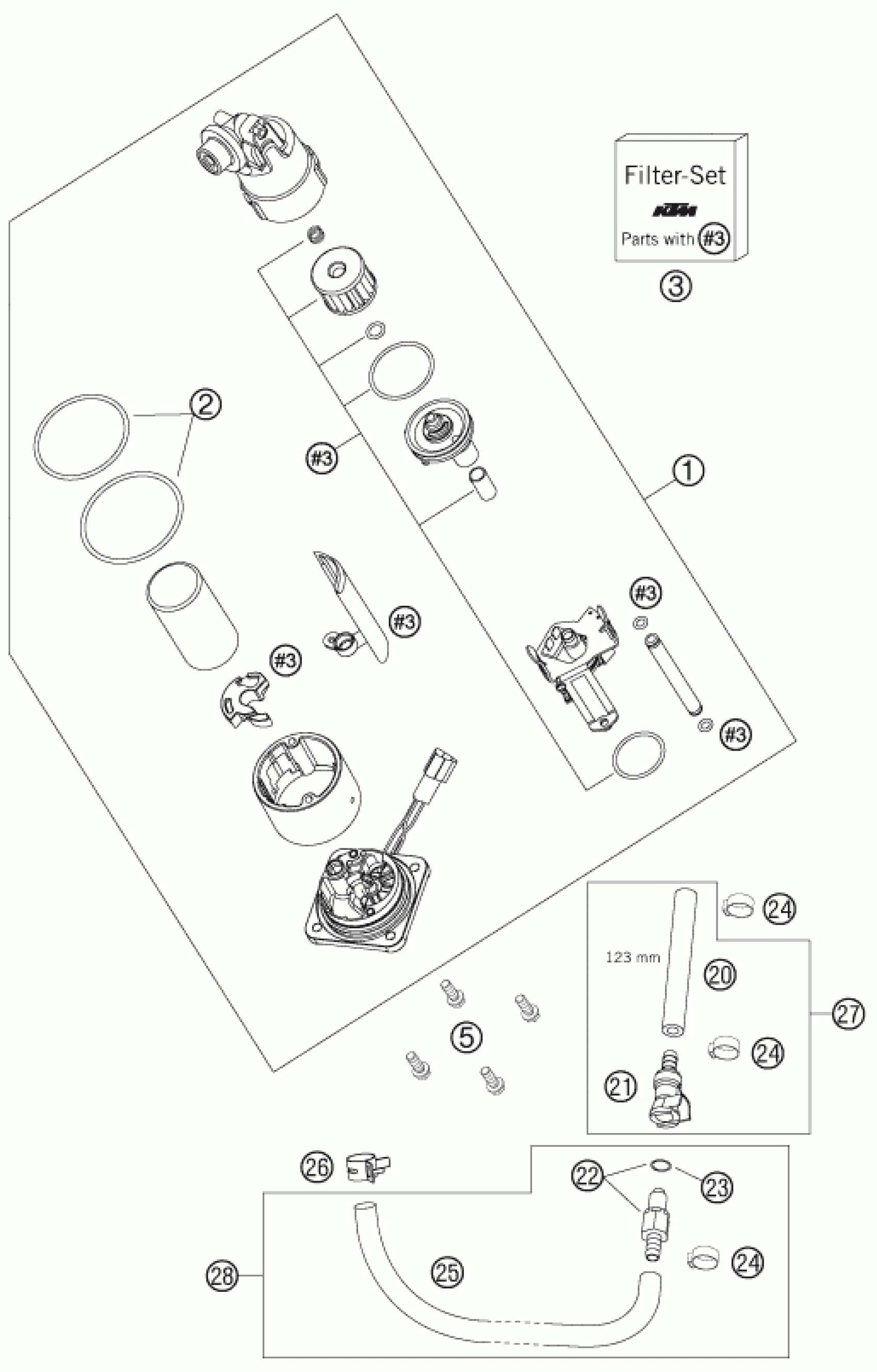

KTM 990 SUPER DUKE ANTHRAZIT 07 <2007> FUEL PUMP Diagram

#

Description

Price

1

PUMP WITHOUT RESERVE INDICATOR

61007088200

Unavailable

2

O-RING SET FOR FUEL PUMP 05

61007089000

Unavailable

3

FILTER-SET FUEL PUMP 05

61007090000

Unavailable

5

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

20

HOSE 7,5X13,5 PER METER

60007016001

Unavailable

21

Clutch CPC PLCD17005, black

5850701050030

Unavailable

22

Plug CPC black 05

5850701030030

Unavailable

23

O-ring VITON f. plug CPC 0

58507012000

Unavailable

24

VARIABLE ONE-EAR CLAMP 15,3MM

00050153706

Unavailable

25

FUEL HOSE 05

61007016000

Unavailable

26

CLAMP STD DN14

00049140121

Unavailable

27

FUEL HOSE CPL. 06

60107016051

Unavailable

28

FUEL HOSE 90° 1 CPL. 05

61007016050

Unavailable
