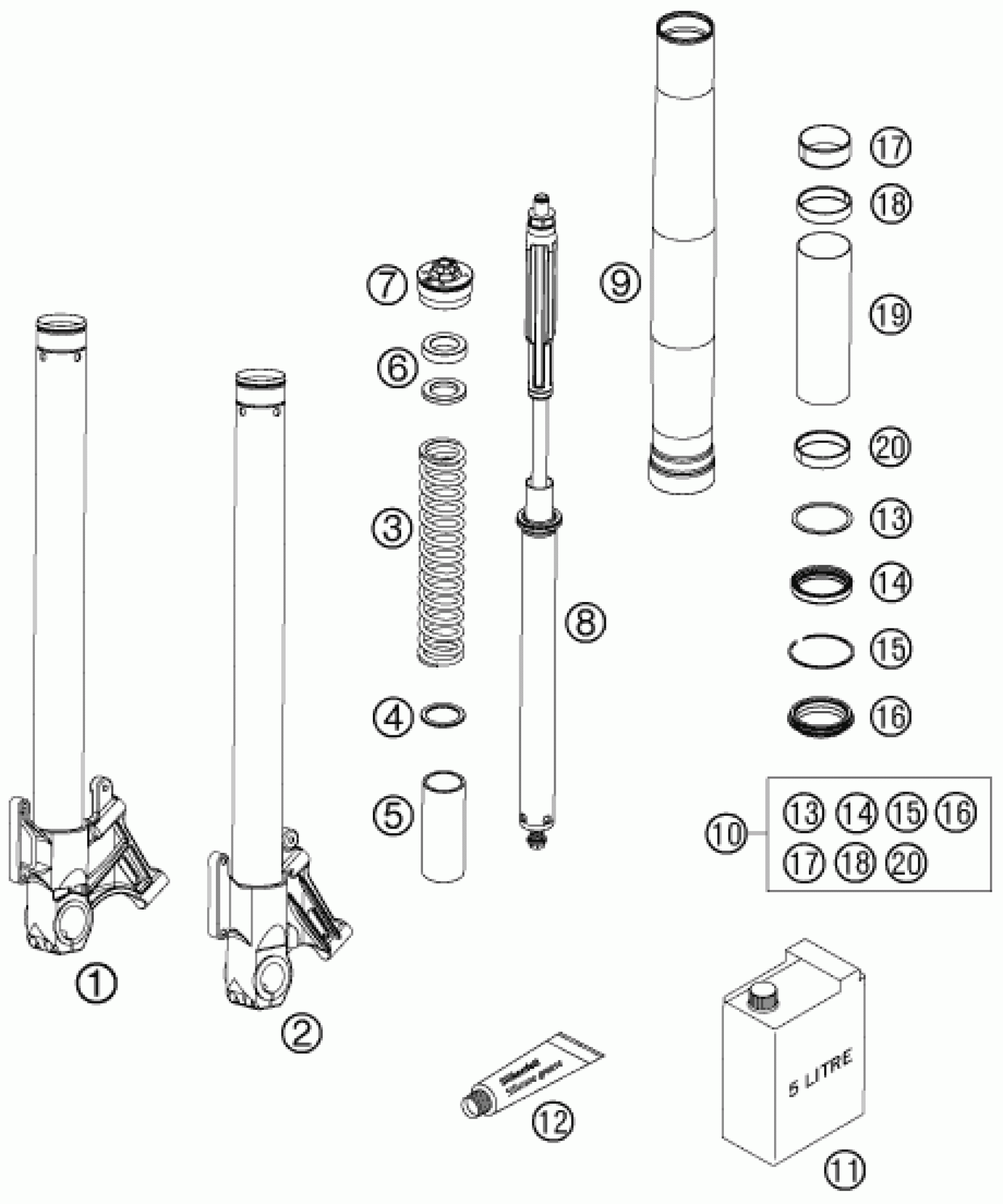

KTM 990 SUPER DUKE ANTHRAZIT 07 <2007> FRONT FORK DISASSEMBLED Diagram

#

Description

Price

13

Supportwasher 50x57,6x1,5

48600013

$3.08

14

Shaft seal SKF 48x57,8x9,5 bla

48600399

$13.64

15

Snap ring SB58x1,5 acc drawing

48600070

$2.05

16

DUST CAP D=48 58,4X11,8

48600400

$12.80

1

AXLE CLAMP R/S CPL. 07

48600482S2

Unavailable

2

AXLE CLAMP L/S CPL. 07

48600483S2

$582.25

3

SPRING C=9 L=250 D=5,1 05

91410038S

Unavailable

3

SPRING C=9,5 L=250 D=5,25 05

91410039S

$130.89

4

WASHER 32X42X2,5

48600460

$11.12

5

SPACER ALU D42 X 85

48600579

$32.06

6

Preload bush 26,5x42x1,5

48600053

$4.11

6

Preload bush 42x26,5x2,5

48600036

$2.05

6

Preload bush 26,5x42x5

48600037

$4.11

7

PRE-LOAD ADJ. CPL. M51X1,5 05

48600431S

$127.99

8

CARDRIDGE CPL. 07

48600580S

$510.52

9

OUTR TUBE L=500MM D=54/60 SET

48600362E

$396.72

10

REPAIR-KIT GASKET 4860 MXMA 05

R14009

$106.21

11

FORK OIL SAE5 5L 2005

48600401S1

$149.59

12

SILICONE GREASE F. DUST STRI

T511

$34.59

17

DU-BUSH D47XD49X20DDL02

48600428

$12.05

18

Guide bushing 48x51x12

48600236

$22.99

19

SPACER 50,95X0,85X161,5

48600245

$26.22

20

DU-BUSH D48XD52X12DDL02

48600429

$12.05
