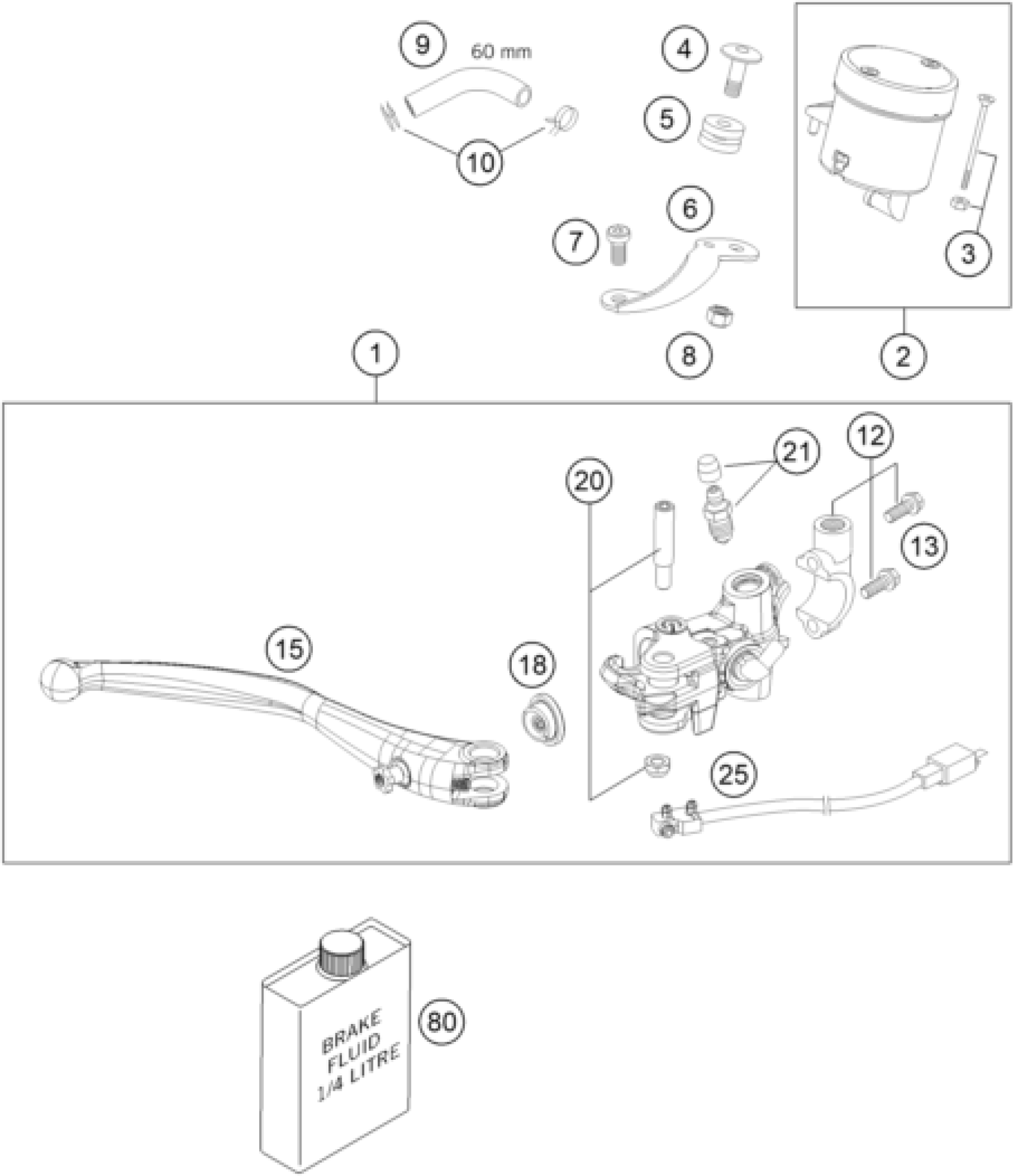

KTM 990 SUPER DUKE ANTHRAZIT 07 <2007> FRONT BRAKE CONTROL Diagram

#

Description

Price

1

HAND BRAKE CYLINDER 05

61013001000

Unavailable

3

SCREW + NUT FOR RESERVOIR

61013009003

Unavailable

4

SCREW RET.PANEL-RESERVOIR

61013013050

Unavailable

5

RUBBER BUSH 05

61013013000

Unavailable

6

RET.PANEL FLUID RES. FRONT 05

61013009001

Unavailable

7

SCREW RET.PANEL-BRAKE CYLINDER

61013021000

Unavailable

8

NUT FOR RESERVOIR

61013009004

Unavailable

9

HOSE FOR RESERVOIR 6X1,5

58007016101

Unavailable

10

YDNAC-clamp 10101 (10.4MM)

58007017000

Unavailable

12

CLAMP CPL. 05

61013005000

Unavailable

13

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

15

HAND BRAKE LEVER LOOSE

61013002000

Unavailable

18

RUBBER CUP 05

61013008000

Unavailable

2

BRAKE FLUID RESERVOIR CPL.

61013009002

Unavailable

20

LEVER SCREW CPL. 05

61013006000

Unavailable

21

BLEEDER SCREW WITH CAP

60013020000

Unavailable

25

BRAKE LIGHT SWITCH FRONT 05

61011050000

Unavailable

80

Brake fluid DOT5.1 0,25L

00062030000

Unavailable
