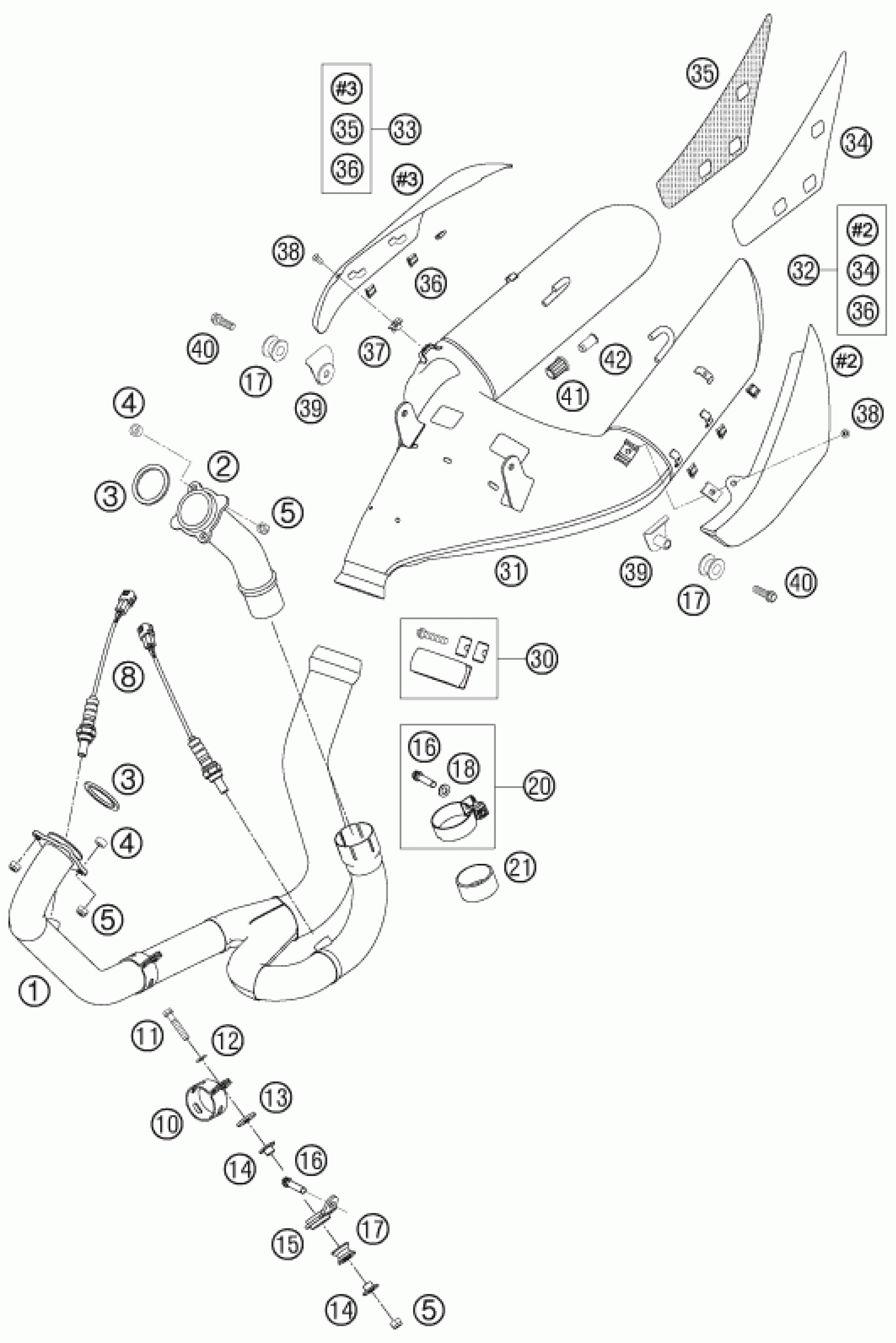

KTM 990 SUPER DUKE ANTHRAZIT 07 <2007 EXHAUST SYSTEM Diagram

#

Description

Price

1

EXHAUST PIPE FRONT 07

61105007000

Unavailable

2

EXHAUST PIPE REAR 07

61105008000

$212.64

3

Exhaust gasket 05

61005005000

$10.00

4

SPACER BUSH. 8,5X15X7,5 05

61005009000

$5.23

5

self-locking nut M8 Cu

51010086100

$3.08

8

LAMBDA SENSOR 05

61041090000

$195.31

10

CLAMP EXHAUST PIPE 05

61005007049

$11.23

11

HH COLLAR SCREW M 8X40 WS=10

0015080403

$4.11

12

WASHER DIN9021-A 8,4

0021080003

$1.49

13

INSOLATE WASHER 8,5X28X3

51005067000

$2.05

14

collar bushing 8.5x12x23.5x10

58405050065

$5.23

15

EXHAUST PIPE BRACKET FRONT 07

62505015150

$15.16

16

HH COLLAR SCREW M 8X35 WS=10

0015080353

$4.11

17

damp. component silicone grey

54305068100

$8.31

20

EXHAUST CLAMP 52,2MM 07

61105051000

$23.70

21

Graphite ring 45X50X25

58405005001

$16.92

30

EXHAUST CLAMP CPL. 05

61005052000

$28.42

31

SILENCER 07

61105083000

Unavailable

32

THERMAL SHIELD SILENCER LE. 07

61005090120

$126.68

33

THERMAL SHIELD SILENCER RE. 07

61005090130

$125.66

34

THER.PROT.FOIL SILENCER L/S

61005090122

$15.10

35

THER.PROT. FOIL SILENCER R/S

61005090132

$18.04

36

DAMP. COMPON. SILICONE GREY 05

61005091000

$8.31

37

clip nut M6

54603048100

$4.11

38

Oval head screw ISK ISO7380 M6

0738060101

$1.49

39

ANTI-ROTATION ELEMENT CPL. 05

61005083011

$15.16

40

HH COLLAR SCREW M 8X25 WS=10

0015080253

$2.05

41

RUBBER SILENCER SUPPORT 05

61005013000

$10.18

42

Sleeve silencer support

61005014000

$6.44

18

washer DIN 125 A -8.4

0125080003

$1.49
