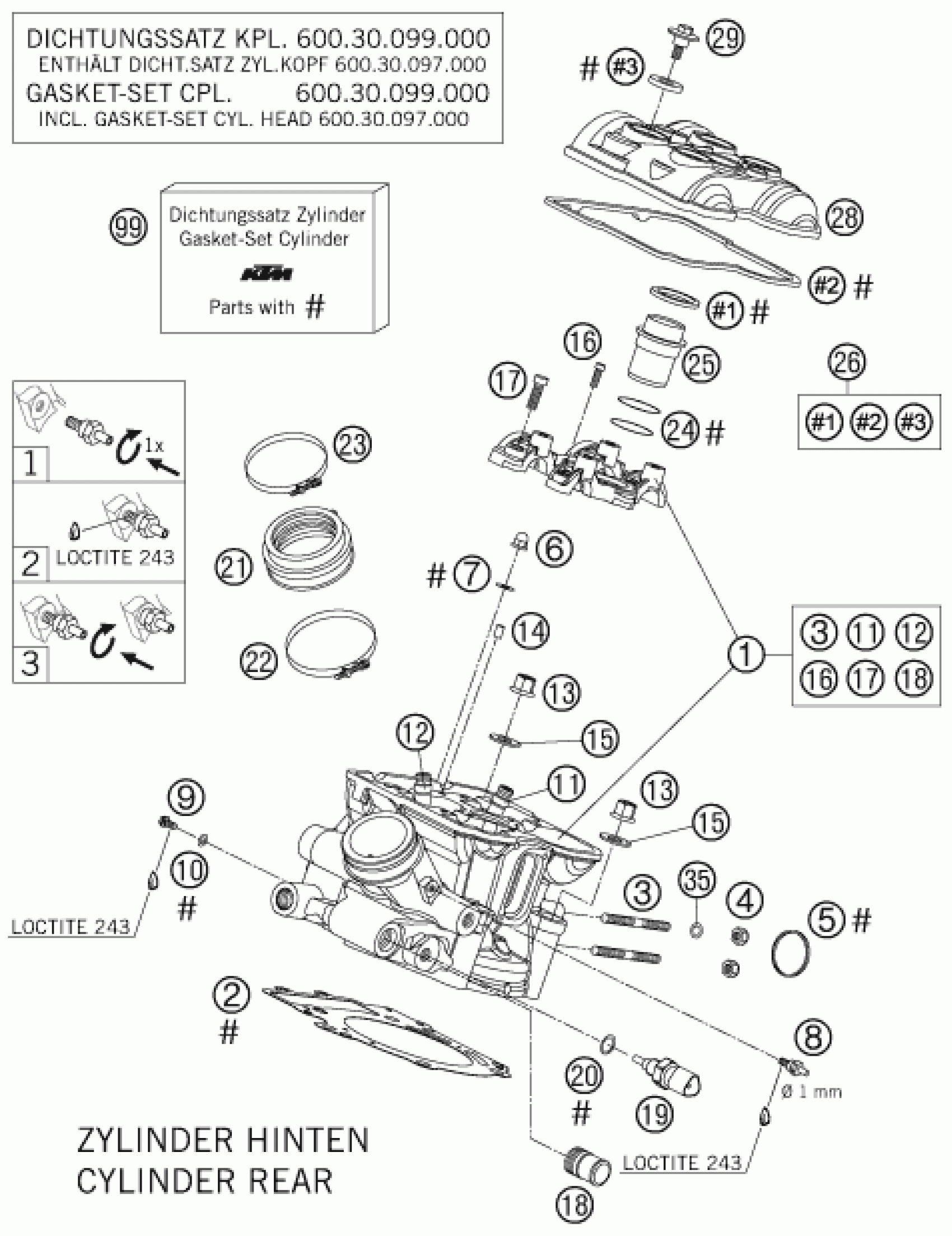

KTM 990 SUPER DUKE ANTHRAZIT 07 <2007> CYLINDER HEAD REAR Diagram

#

Description

Price

1

CYLINDER HEAD CPL. REAR 07

61136120044

Unavailable

2

CYLINDER HEAD GASKET 0,5 101MM

60030036000

Unavailable

3

STUD DIN0835-M 8X25 10.9

0835080256

Unavailable

4

self-locking nut M8 Cu

51010086100

Unavailable

5

Exhaust gasket 05

61005005000

Unavailable

6

CAP NUT M6 DIN1587 02

0587060000

Unavailable

7

WASHER DIN0125-A 6,4

0125060003

Unavailable

8

VACUUM CONECTION 2006

61036023100

Unavailable

10

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

11

VALVE GIUDE OUTLET '05

60036026100

Unavailable

12

VALVE GIUDE OUTLET '05

60036025100

Unavailable

13

hex collar nut M10 WS13

60036078200

Unavailable

14

needle roller DIN 5402 5x9.8

0402050980

Unavailable

15

SHIM 10,2X19X1,5MM 05

60036078050

Unavailable

16

AH SCREW DIN0912-M 6X25 10.9

0912060255

Unavailable

17

AH SCREW DIN7984-M 8X30 10.9

0984080305

Unavailable

18

SCREW IN NOZZLE M20X1,5

58030010200

Unavailable

19

TEMPERATURE SENSOR WATER 07

75035047000

Unavailable

20

o-ring 10.00x2.00 silicone

0770100020

Unavailable

21

RUBBERSLEEVE INTAKE FLANGE 05

61036044000

Unavailable

22

HOSE CLAMP GEMI 66MM 05

61036048000

Unavailable

23

Hose clamp GEMI 63mm 05

61036047000

Unavailable

24

O-RING 29,87X1,78 VITON

0770298178

Unavailable

25

INSERT SPARK-PLUG SHAFT 08

61136075000

Unavailable

26

VALVE COVER GASKET SET FR+RR

60036099000

Unavailable

28

VALVE COVER REAR 03

60036152000

Unavailable

29

collar screw M 6 WS=10 03

60036052020

Unavailable

35

SPACER BUSH. 8,5X15X7,5 05

61005009000

Unavailable

99

GASKET SET CYL. HEAD KPL. 03

60030097000

Unavailable

9

HH COLLAR SCREW M 6X10 WS=8

0015060103

Unavailable
