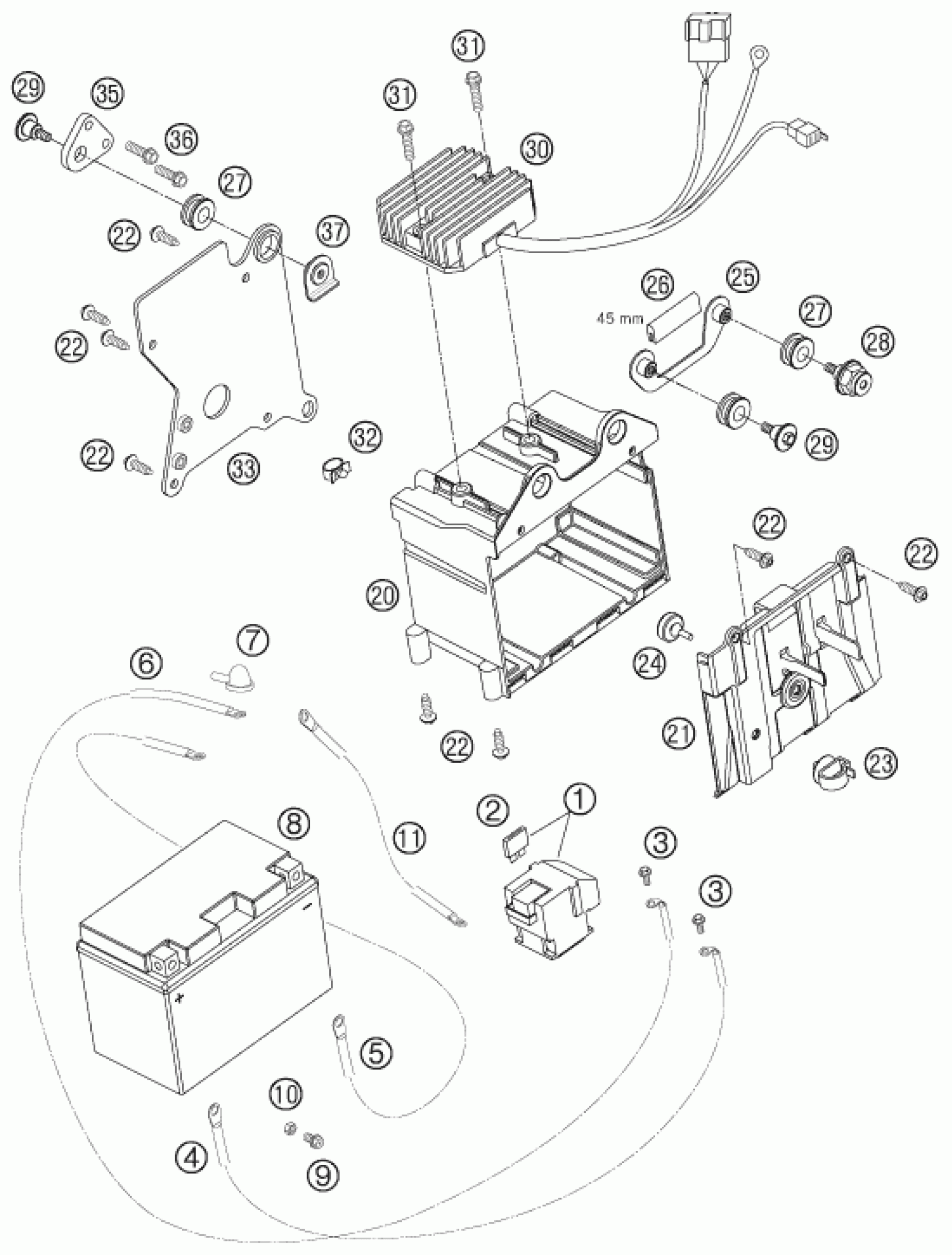

KTM 990 SUPER DUKE ANTHRAZIT 07 <2007> BATTERY Diagram

#

Description

Price

1

STARTER RELAY 03

60011058000

Unavailable

2

Plug-in fuse, big 30A

58011109130

Unavailable

3

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable

4

BATTERY CABLE L=230MM 05

61011059050

Unavailable

5

GROUND CABLE L=450MM 05

61011097000

Unavailable

6

STARTERCABLE L=820 MM

61011059000

Unavailable

7

Rubber grommet, starter port 0

60040009000

Unavailable

8

BATTERY 12V/11AH 03

60011053000

Unavailable

9

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

10

Hex. nut DIN 934 M6

0934060003

Unavailable

20

BATTERY BOX 05

61011054000

Unavailable

21

BATTERY BOX COVER 05

61011054006

Unavailable

22

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

23

CABLE SUPPORT KHS NR.150-47610

58111076000

Unavailable

24

Distance rupper airbox 03

60006001021

Unavailable

25

ANTI-ROT. ELEMENT DUAL CPL. 05

61011055033

Unavailable

26

EDGE PROTECTOR PER METER

58312085100

Unavailable

27

RUBBER SLEEVE 03

60003098000

Unavailable

28

SPECIAL SCREW M6 WS19 05

61011055050

Unavailable

29

SPECIAL SCREW M6X21 WS=8

60035001000

Unavailable

30

VOLTAGE REGULATOR LC8 03

60011034000

Unavailable

31

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

32

WIRING HOLDER 16MM

57013072100

Unavailable

33

BATTERY BOX SUPPORT R/S CPL.

61011057033

Unavailable

35

BATTERY SUPPORT 05

61011056020

Unavailable

36

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

37

ANTI-ROTATION ELEMENT CPL. 05

61011056033

Unavailable

11

GROUND CABLE 07

61111097000

Unavailable
