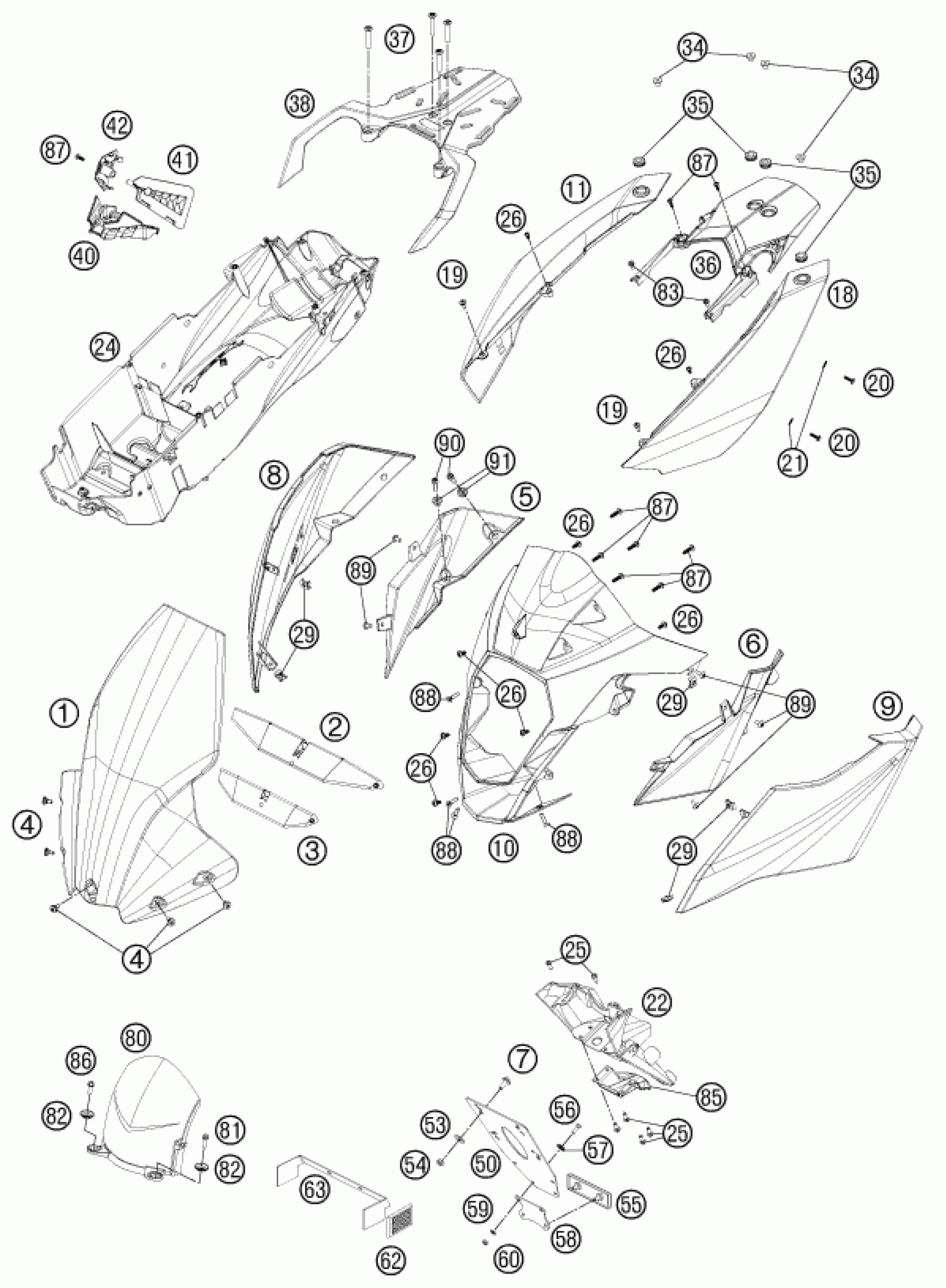

KTM 990 SM-T ORANGE ABS SPEC.EDIT <2011> MASK, FENDERS Diagram

#

Description
Price

1

TOURING WINDSCREEN

62008965000

Unavailable

2

WIND SHIELD SUPPORT UPPER

62008008050

$17.66

3

WIND SHIELD SUPPORT LOWER

62008008060

$14.76

4

special screw M5x12

69008021160

$4.11

5

MASKSPOILER INNER PART R/S 09

62008003050

$12.05

6

MASKSPOILER INNER PART L/S 09

62008002050

$12.05

7

HH collar screw M6x15 TX30

0024060156

$3.08

8

MASK SPOILER R/S

6200800300004A

Unavailable

9

MASK SPOILER L/S

6200800200004A

Unavailable

10

HEADLIGHT MASK

6200800100030

$61.33

11

SIDE COV. R/S REAR BLACK-BRILL

6260804210030B

$202.93

18

SIDE COV. L/S REAR BLACK/BRILL

6260804110030B

$210.23

19

special screw M5x17

69008021060

$3.08

20

EJOT ALTRACS SCHR.WN5151 50X16

62008043000

$2.05

21

Washer tail section UT D=14mm

75008023000

$3.08

22

NUMB.PLATE CARRIER 05

62508015000

$60.58

23

HH collar screw M6x13 TX30

0024060136

$3.08

24

REAR END LOWER PART 11

62108019000

$37.03

25

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

26

EJOT PT screw K50x12

0081050121

$2.05

29

clip nut M5

69008021080

$3.08

34

COLLAR BUSHING 8,2X12X20X9 03

60012008002

$4.11

35

RUBBER SLEEVE D=12MM

41001052000

$4.11

36

REAR FENDER BLACK 08

6260801310030

$11.67

37

countersunk screw M8x45 TX45

0019080456

$4.11

38

BAGGAGE CARRIER CPL

62012010033

$134.63

40

SPLASH PROTECTOR FRAME 05

60003087000

$5.22

41

COVER STEARING HEAD UP.L/S

62603085000

$5.23

42

COVER STEARING HEAD UP.R/S

62603086100

$10.37

50

license plate mouning plate

60012081200

$8.41

53

Washer DIN9021-A 6.4

0021060003

$2.05

54

Self lock. nut DIN985-M6-A2

0985060003

$2.05

55

REFLECTOR RED

58412080000

$5.23

56

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

$1.49

57

WASHER 6MM

40006006000

$1.49

58

BRACKET FOR REFLECTOR

58412080050

$6.07

59

WASHER DIN0125-A 5,3

0125050003

$1.49

60

Self locking nut DIN 985 M5

0985050003

$2.05

62

SIDE REFLECTOR RED REAR

16512180100

$7.10

63

BRACKET SIDE REFLECTOR 06

62512081000

$27.95

80

SPLASH PROTECT. 05

61008014000

$30.57

81

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

$2.05

82

BUCKET

72210079000

$3.00

83

HH collar screw M5x12 TX30

0025050126

$3.08

85

COVER NUMB. PLATE CARRIER

62608015001

$6.07

86

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

87

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

88

COUNTERSUNK SCREW ISA25 M5X20

0019050201

$2.05

89

SCREW TORX M5X10 05

58605083010

$2.05

90

Cap head bold ISO 14580 M6x16

014580060166

$2.05

91

BUSHING MUD FLAP 07

75001094010

$6.07
