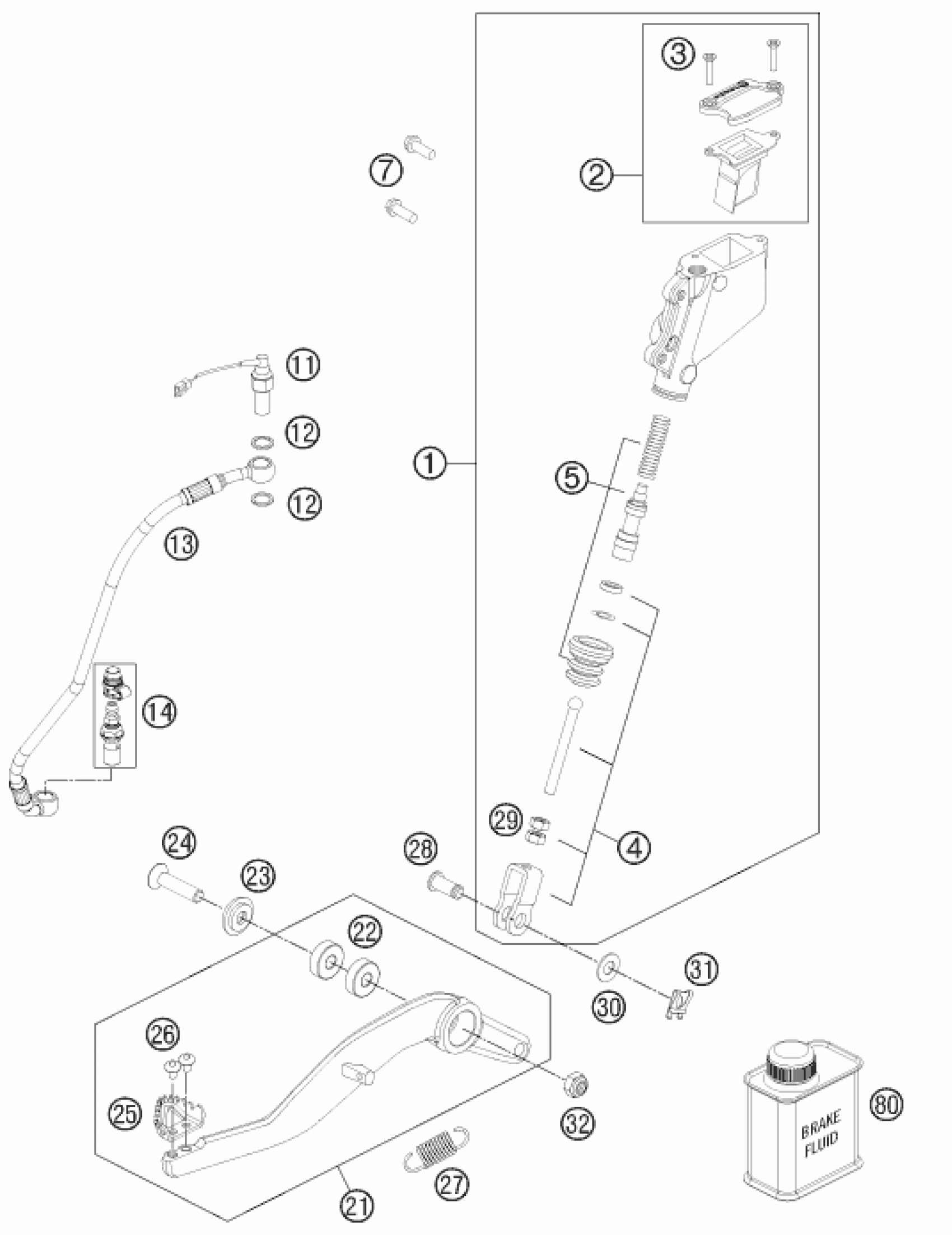

KTM 990 SM-T BLACK ABS SPEC.EDIT <2012> REAR BRAKE CONTROL Diagram

#

Description
Price

1

MAIN BRAKE CYLINDER CPL. 07

60013060200

Unavailable

2

COVER MAIN BRAKE CYLINDER CPL.

60013059100

Unavailable

3

FLAT HEAD SCREW DIN0965-M 4X16

0965040161

Unavailable

4

PUSH ROD CPL. '03

60013056044

Unavailable

5

REPAIR KIT PISTON 03

60013061000

Unavailable

7

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

Unavailable

11

BRAKE LIGHT SWITCH REAR

62111051000

Unavailable

12

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

13

BREAK HOSE CPL.

62142001000

Unavailable

14

BLEEDER SCREW CPL. 05

62513020000

Unavailable

21

FOOT BRAKE LEVER CPL. 07

6251305004401S

Unavailable

22

Grooved ball bearing 608 2RS C

0625006087

Unavailable

23

SPECIAL WASHER 8X24 ALU H=2,6

62603062000

Unavailable

24

COUNTERSUNK SCREW ISA45 M8X35

0019080356

Unavailable

25

STEP PLATE FOR BRAKE LEVER

54813051100

Unavailable

26

SCREW TORX M5X10 05

58605083010

Unavailable

27

RETURN SPRING FOR BRAKELEVER

54603062000

Unavailable

28

BOLT F. LINK FORK 8X20X16,5

60013057000

Unavailable

29

Hex. nut DIN 934 M6

0934060003

Unavailable

30

washer DIN 125 A -8.4

0125080003

Unavailable

31

SECURING CLIP D=8MM 03

60013058000

Unavailable

32

SELF LOCKING NUT DIN0985-M 8

0985080003

Unavailable

80

Brake fluid DOT5.1 0,25L

00062030000

Unavailable
