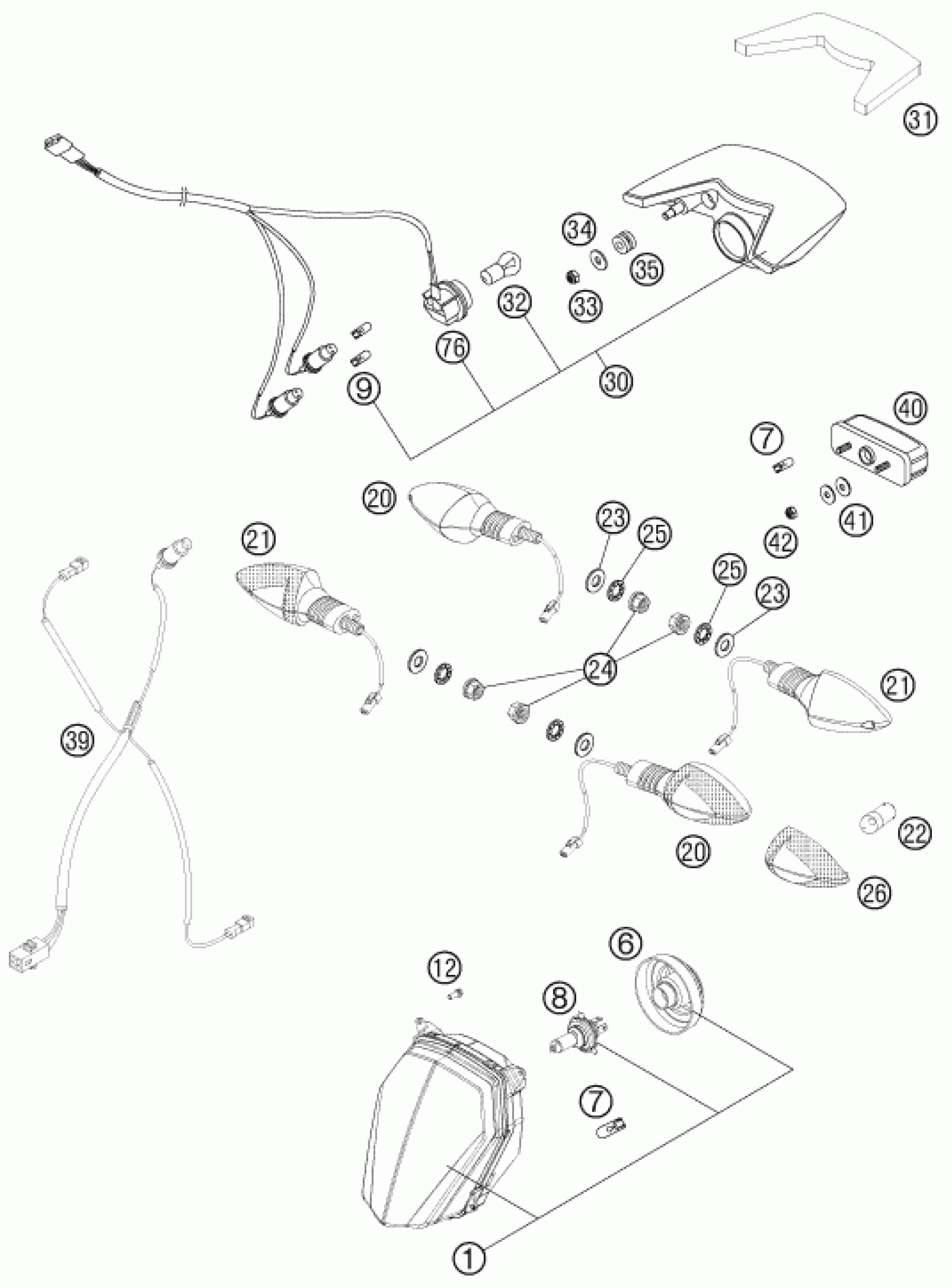

KTM 990 SM-T BLACK ABS SPEC.EDIT <2012> LIGHTING SYSTEM Diagram

#

Description
Price

1

HEAD LIGHT RIGHT TR. 08

62614001000

Unavailable

6

RUBBER CAP FOR HEAD LIGHT

76514001050

Unavailable

7

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

Unavailable

8

BULB H4 12V 60/55W (P43T)

57111038000

Unavailable

9

BULB RED WR5W 12V

49011435200

Unavailable

12

HH collar screw M5x12 TX30

0025050126

Unavailable

20

FLASHER CPL.FRONT L/S REAR R/S

60114025000

Unavailable

21

FLASHER CPL.FRONT R/S REAR L/S

60114026000

Unavailable

22

BULB 12V ORANGE (RY10W)

60114027000

Unavailable

23

Washer DIN0433-M10

0433100003

Unavailable

24

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

25

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable

26

FLASHER LENS L/S R/S TRANSP.06

60114028000

Unavailable

30

REAR LIGHT CPL.SMOKED GLASS 07

58614140044

Unavailable

31

METAMOLL FOR REARLIGHT 08

62614040050

Unavailable

32

BULB RED PR21W 12V

60014048100

Unavailable

33

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

34

Washer DIN9021-A 6.4

0021060003

Unavailable

35

rubber grommet 16x10.8x3

58214069051

Unavailable

39

WIRING HARNESS REAR 08

62611076000

Unavailable

40

LICENSE-PLATE ILLUMINATION '98

58414047000

Unavailable

41

washer DIN 9021 A - 5.3

0021050003

Unavailable

42

Self locking nut DIN 985 M5

0985050003

Unavailable

76

CABLE HARNESS REAR PART 07

58611176100

Unavailable
