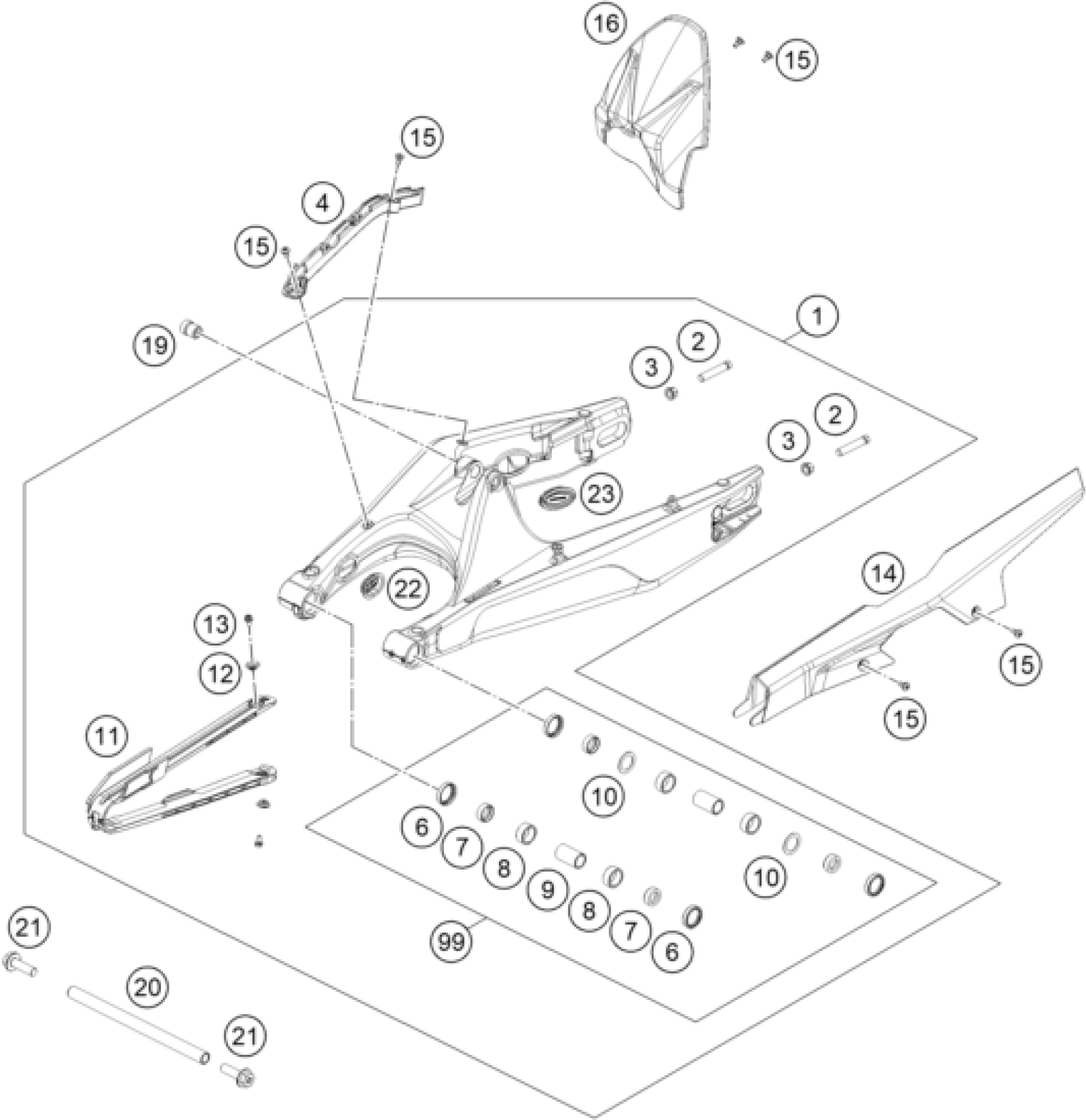

KTM 990 DUKE, black 2024 SWING ARM Diagram

#

Description

Price

1

Swingarm cmpl.

A60704030144C1

$924.99

2

screw M10x1.25x50 WS10

50304040100

$5.23

3

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

4

Brake line guide

A63608022000

$12.15

6

radial shaft seal 25x32x7

0760253270

$6.63

7

Bucket f. shaft seal ring 03

54804034000

$5.23

8

Needle bushing HK2212V 22/28/1

0618222812

$9.81

9

Bearing sleeve 17x22x38.7

A63604032000

$10.28

10

STOP DISK 22,2X31,7X1

54603036000

$3.08

11

Chain slider

A63604066000

$29.16

12

BUSH FOR CHAINSLIDER GUARD 02

46104066050

$8.31

13

Hex collar screw M5x12 ISA30 S

0025050126S

$1.49

14

Chain guard

A60704061000

$19.44

15

special screw M5x12

69008021160

$4.11

16

Splash protection

A60704050000

$14.20

19

bushing shock mounting

64104030020

$16.35

20

Swingarm pivot

A60704037000

$73.20

21

Special screw M12x40 WS19

76504038000

$18.13

99

Swingarm Rep.Kit 990 Duke #24

A60704030010

Unavailable

22

Locking cap swingarm

77204041000

$4.11

23

Locking cap swingarm

A46004041000

$1.49
