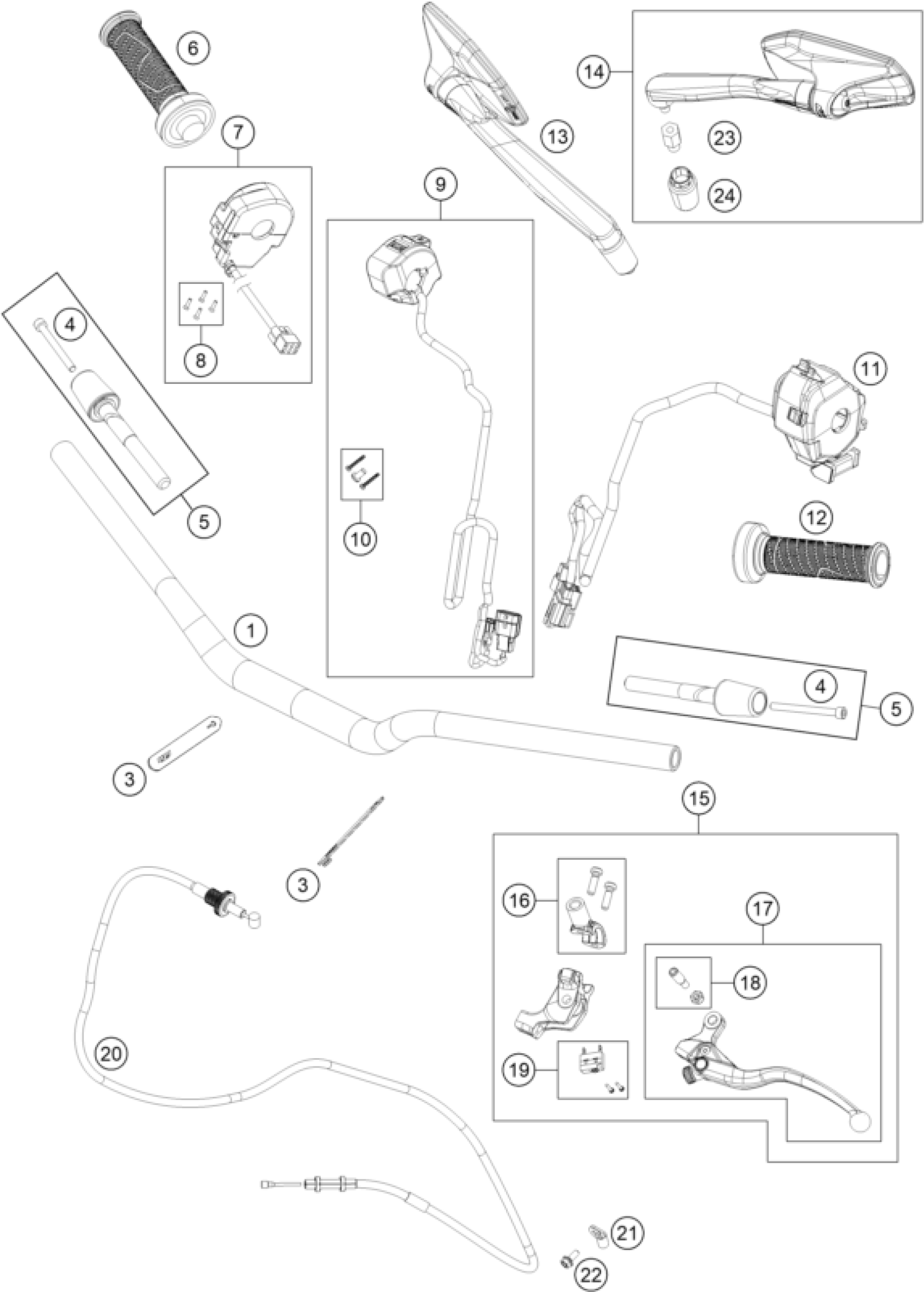

KTM 990 DUKE, black 2024 HANDLEBAR, CONTROLS Diagram

#

Description

Price

1

Handlebar length =760 mm diam.

A60702001000C1

$126.68

3

RUBBER CABLE TIE 45MM 03

60011093045

$3.08

4

SHCS DIN 912 M6x65

0912060653

$2.05

5

Handlebar weight with silent b

A60702004000

$52.63

6

Grip tube (no heating)

60702012000

$74.51

7

E-Throttle w/o grip

60711912000

$317.89

8

SCREW SET START-STOP SWITCH

76011073110

$6.72

9

Handlebar switch, right

63711074000

$78.72

10

Screw set start-stop switch

61411174010

$5.23

11

Left-hand combination steering

96311170000

$135.99

12

Grip LHS w/o heater

60702039100

$86.29

13

Mirror right

61312041300

$93.30

14

Mirror left

61312040300

$65.35

15

Clutch lever cmpl.

A60702031000C1

$110.60

16

Clamp cpl.

63602044000C1

$31.13

17

Clutch lever cpl.

6410204000030

$73.58

18

Kit lever pin

64102038000

$14.39

19

Lever switch

64111049000

$46.93

20

Clutch cable wire

A60702090000

$80.50

22

HH collar screw M5x12 TX30

0025050126

$3.08

23

ADAPTOR FOR MIRROR

61312040050

$15.14

21

PVC clamp 6.4 MM Heyman

64132070000

$1.49

24

RUBBER SLEEVE

61312040030

$7.85
