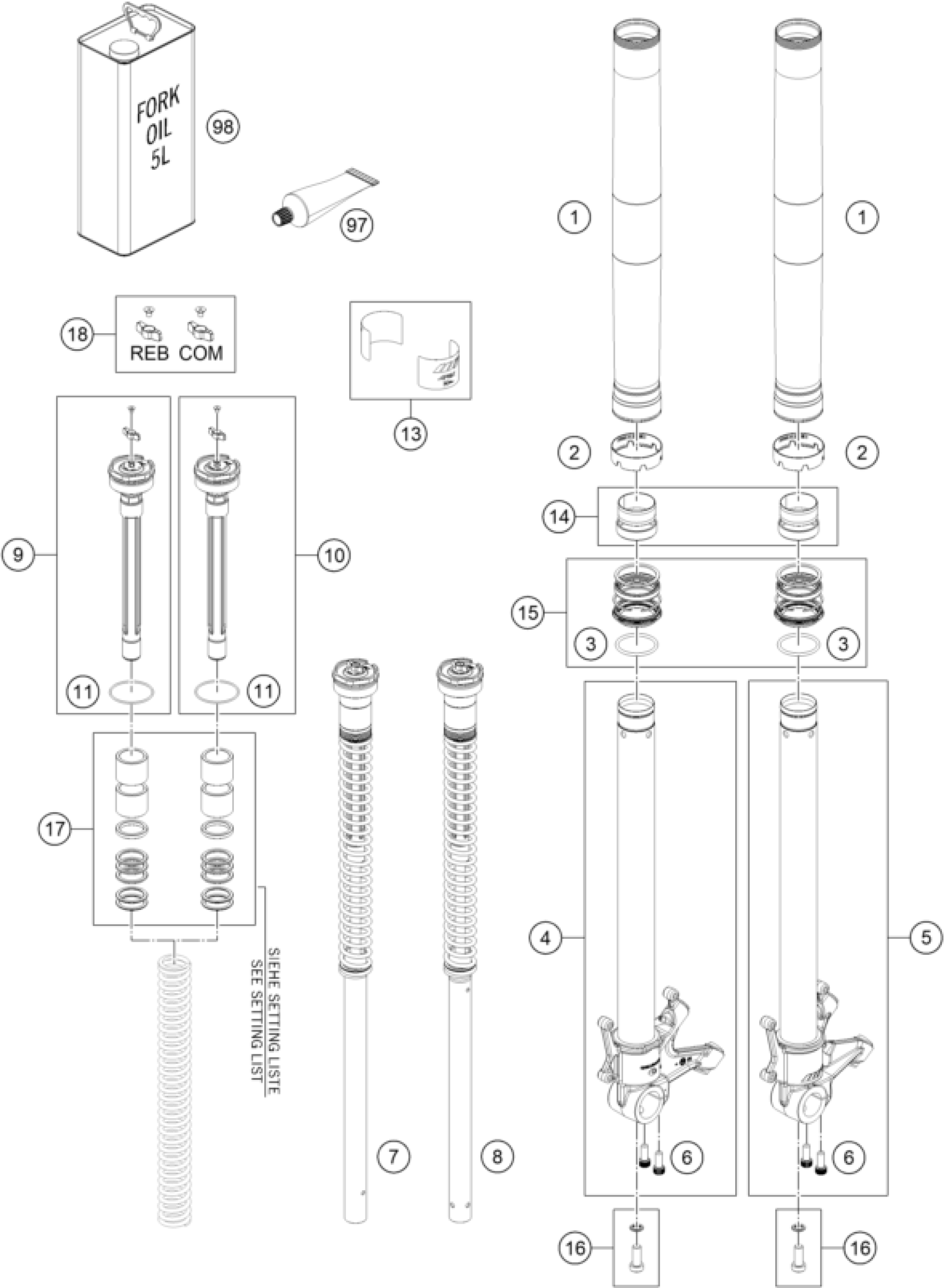

KTM 990 DUKE, black 2024 FRONT FORK DISASSEMBLED Diagram

#

Description

Price

1

fork outer tube 44,33x515 dt54

43578257

$212.89

2

Fork protection ring d43

43578206

$2.05

3

Stroke indicator d43 red

43570926

$4.11

4

AXLE CLAMP INNER TUBE SUB ASSY

S444310009S00C1

$431.59

5

AXLE CLAMP INNER TUBE SUB ASSY

S444310008S00C1

$435.61

6

HH Collar Screw M8x20

S21861000500000

$2.05

7

990 Duke cartridge-kit right

43578176S10

$469.74

8

990 Duke cartridge-kit left

43578195S10

$591.47

9

screw cap with adjuster tube

S409110001S02C1

$186.15

10

screw cap with adjuster tube l

S409110000S02C1

$186.15

11

O-ring 45x2

43578114

$1.49

13

Sticker set, APEX PRO OC 90x40

52000209SET

$46.74

14

GUIDE BUSHING SET

R14042T

Unavailable

15

Fork sealing kit 43mm

R516T

Unavailable

16

HS cylinder-head screw M10x25

43578177S1

$10.00

17

Shim Kit Fork

RP80002

Unavailable

18

Adjuster kit fork

RP10026T

Unavailable

97

Fuchs grease IPR (250g)

T14034

Unavailable

98

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable
