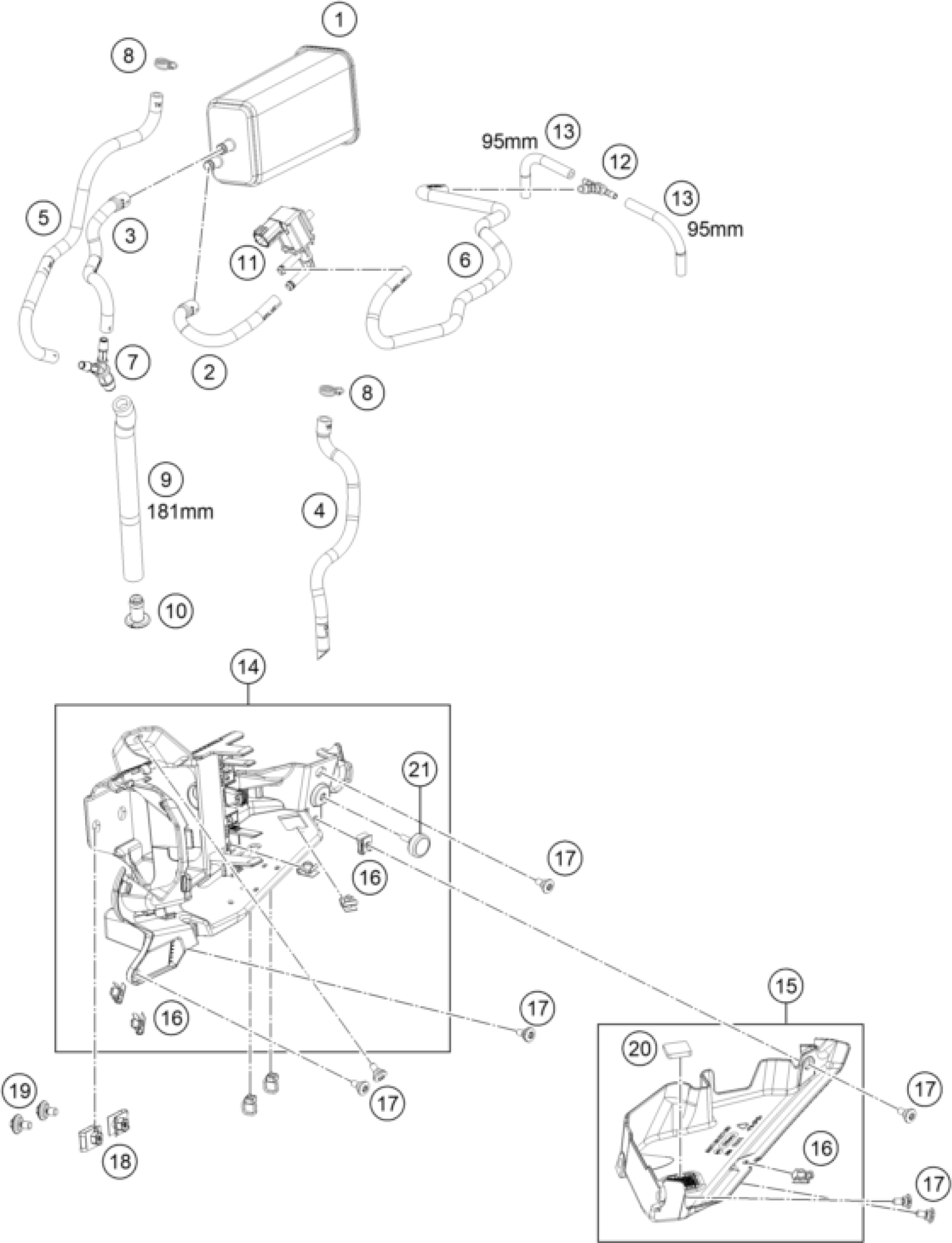

KTM 990 DUKE, black 2024 EVAPORATIVE CANISTER Diagram

#

Description

Price

1

CARBON CANISTER

75015001200

$66.66

2

Shaped Hose from AKF to Purge

A60715021050

$8.97

3

Shaped hose AKF

A60715021060

$13.74

4

Shaped hose AKF

A60715021070

$20.09

5

Shaped hose AKF

A60715021080

$14.86

6

Shaped hose AKF

A60715021090

$24.86

7

Y-CONNECTOR YS 6-10-6

61315028100

$8.41

8

HOSE CLAMP YDNAC 10119 11MM

50231005000

$2.05

9

HOSE EPA D=10/16 L=2000MM

78015119000

Unavailable

10

Screw plug ACF

61315026100

$21.87

11

Purge valve

A62415015000

$18.41

12

Hose connection nozzles

64115026000

$4.11

13

HOSE EPA D=4/8 L=2000MM

78015021000

Unavailable

14

Evaporative canister bracket p

A60715002033

$43.19

15

Heat protection electrical pre

A60708027133

$20.37

16

RANGE CHANGE METAL NUT M5 INOX

54603048600

$2.05

17

special screw M5x12

69008021160

$4.11

19

special screw M6x12x3

83008000012

$3.08

18

clip nut M6

54603048100

$4.11

20

METAMOLL F. TAIL LIGHT COVER

61408015030

$1.49

21

Distance rupper airbox 03

60006001021

$2.05
