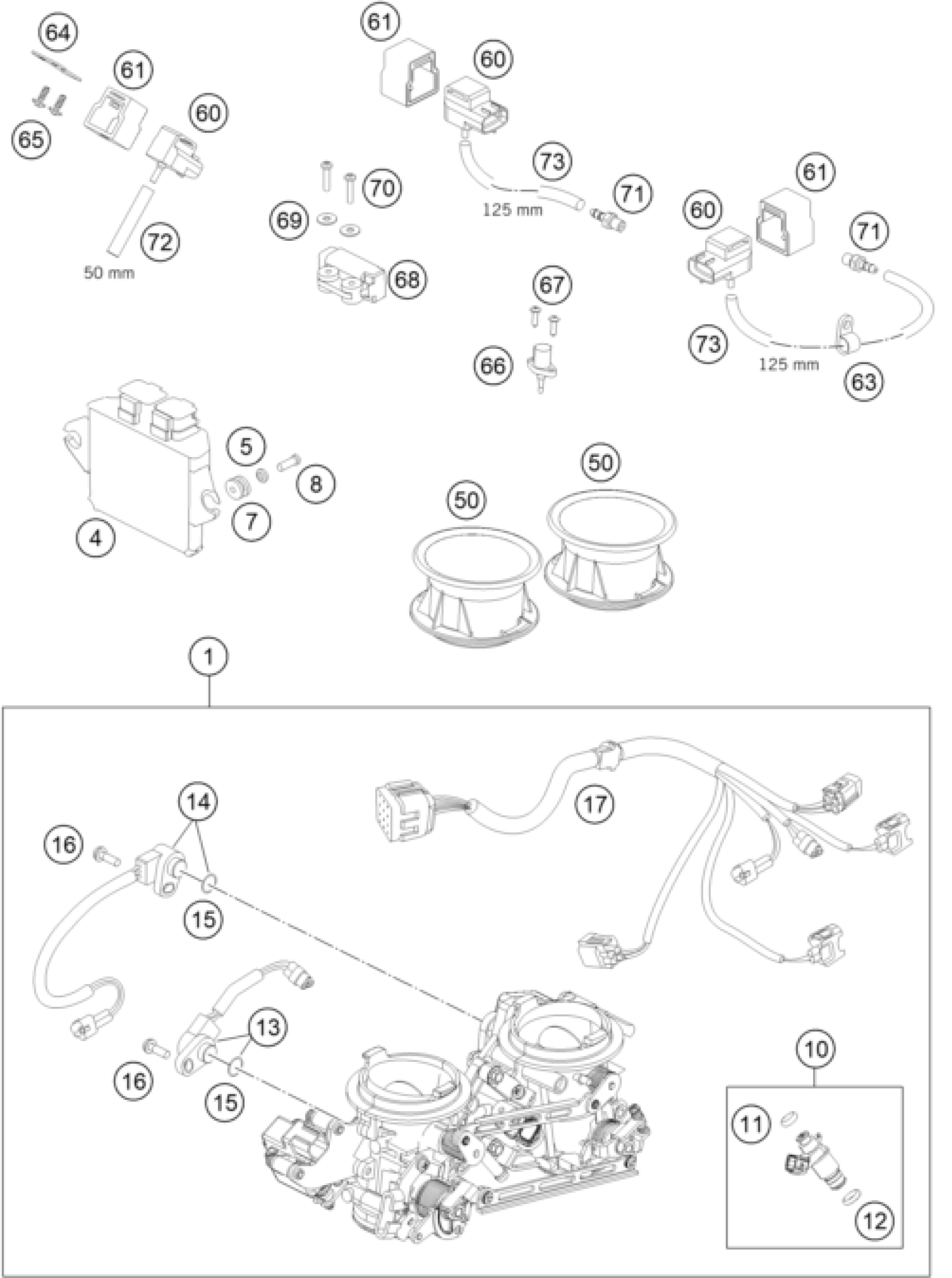

KTM 990 ADVENTURE WHITE ABS CKD <2012 THROTTLE BODY Diagram

#

Description
Price

1

THROTTLE BODY CPL. 05

61041001000

$1,393.89

4

ELECTRONIC CONTROL UNIT

61041031200

$703.02

5

SPECIAL WASHER D=16,5MM 03

60008045000

$3.08

7

VIBRATION DAMPER DIGITALBOX 03

60039030000

$3.08

8

AH SCREW DIN6912 M6X12

0012060123

$2.05

10

INJECTOR CPL. 08-13

61041023044

$208.96

11

O-RING INJECTOR

61041023010

$7.10

12

O-RING INJECTOR

61041023020

$7.56

13

THROTTLE POS. SENSOR CPL.

61041077000

$145.29

14

THROTTLE POS. SENSOR CPL.

61041177000

$125.00

15

O-RING THROTTLE POS. SENSOR

61041077010

$5.23

16

SCREW THROTTLE POS. SENSOR

61041077020

$3.08

50

INTAKE TRUMPET 05

61041040000

$9.81

60

PRESSURE SENSOR 06

61041085100

$144.36

61

RUBBER SUPP. PRESSURE SENS. 06

61041085150

$5.23

63

PVC-CLAMP 7,9 MM HEYCO 3355

57013070100

$2.05

64

SUPPORT PRESSURE SENSOR 05

61041085060

$4.04

65

EJOT PT screw K50x12

0081050121

$2.05

66

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

$23.74

67

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

68

ROLLOVER SENSOR 05

61041088000

$67.69

69

SHIM 4,3X15X1,25MM GALVANIZED

61041088050

$1.49

70

FLAT HEAD SCREW DIN7985-M 4X20

0985040203

$1.49

71

VACUUM CONECTION 2006

61036023100

$10.46

72

HOSE 3,2X8,5 L=50 MM 05

61041095050

$6.54

73

HOSE 3,2x8,5 L=125 MM 06

60141095125

$4.11

17

WIRING HARNESS THB 05

61041012000

$203.63
