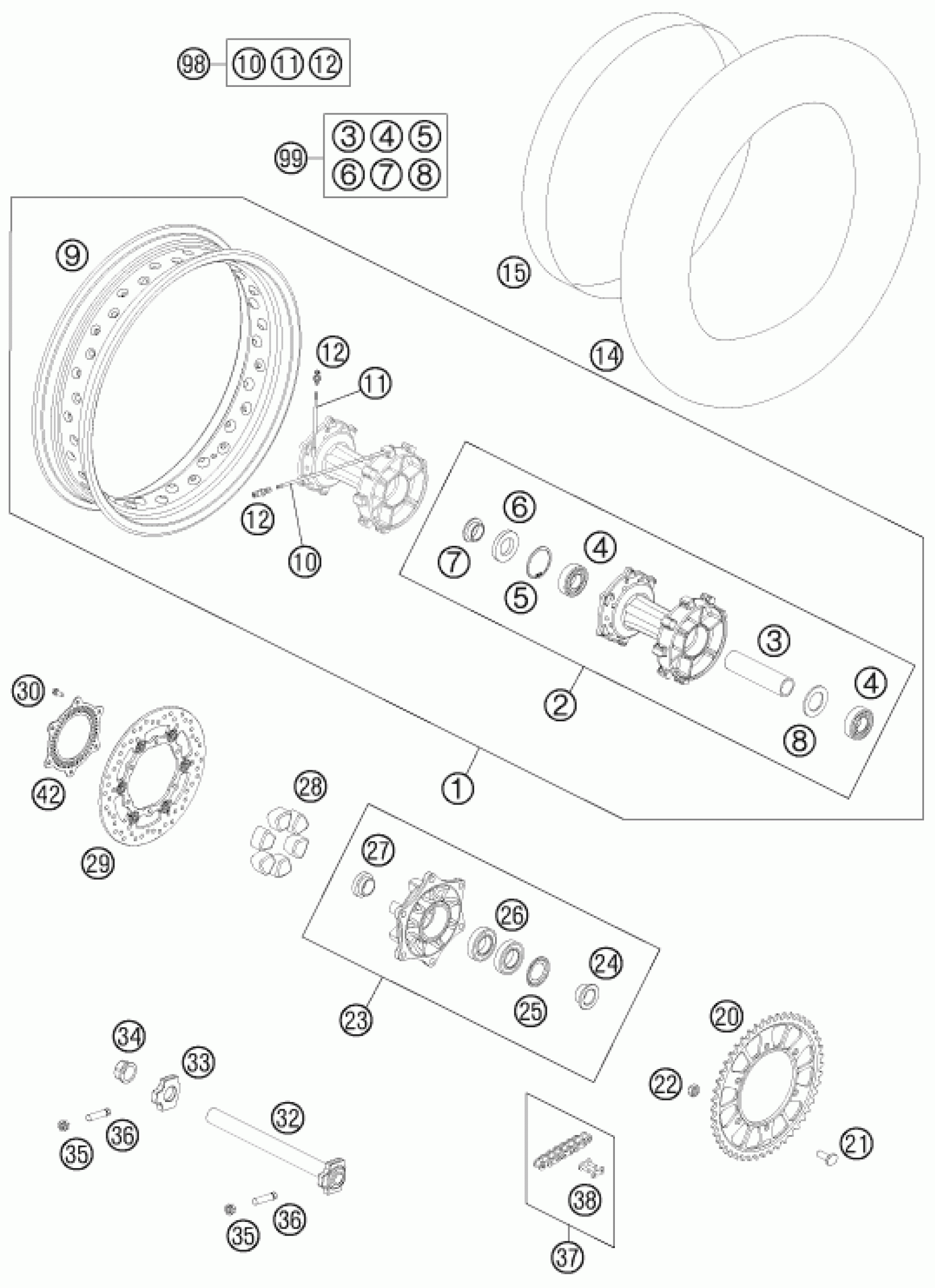

KTM 990 ADVENTURE WHITE ABS CKD <2012> REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL CPL. 4,25X18''SW

6011000124430

$1,081.13

2

REAR HUB CPL. BLACK

6011001004433

$396.62

3

Bearing spacing tube L=124.8mm

60010011000

$20.09

4

Grooved ball bear. 6205-2RSHC3

0625062052

$30.85

5

CIRCLIP DIN0472-52X2

0472052200

$3.08

6

Radial shaft seal 30X52X7

0760305271

$5.23

7

SPACER BUSH. REAR WHEEL R/S 06

60110013000

$22.99

8

Spacer ring 03

60010015000

$10.56

98

SPOKE KIT REAR ''18''

00050000915

Unavailable

99

REAR WHEEL REP. KIT ADV

60010015010

Unavailable

9

RIM 4,25X18 BLACK

6001007020030

$445.43

10

SPOKE M5X213 19 DEG 03

60010171000

$5.51

11

SPOKE M5X194 10 DEG 03

60010071000

$5.23

12

SPOKE NIPPLE M5-TA 8X21MM

58309072100

$2.05

42

SENSOR WHEEL REAR 06

60142021000

$24.49

14

TUBE 110/100C-18

50310075100

$29.13

15

RIM TAPE 18'' 50/2 0

60010073000

$17.48

20

REAR SPROCKET 42-T 03

60010051042

$82.46

20

REAR SPROCKET 45-T 03

60010051045

Unavailable

21

SPROCKET SCREW M10X1,25 03

60010052000

$5.23

22

Hexag. nut DIN 980V M10X1.25 S

0980101253

$2.05

23

SPROCKET SUPPORT CPL. BLACK

6011005004433

$193.16

24

SPACER BUSH. SPROCKET SUPP. 06

60110012000

$20.09

25

NILOS RING 6006AV

60110016000

$9.72

26

BALL BEARING 6006 DDU2CG23S6NM

0625060060

$18.69

27

SPACER BUSH. SPR. SUPP. IN. 06

60110014000

$17.38

28

Rubber damping block 91

54610459000

$8.03

29

BRAKE DISK REAR D=240MM 06

60110060000

$222.33

30

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

$2.05

32

WHEEL SPINDLE REAR CPL.

60010081144

$56.09

33

Chain tension adjuster, right,

60010084000

$22.81

34

COLLAR NUT WH. SPINDLE REAR 03

60010086000

$14.58

35

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

36

screw M10x1.25x50 WS10

50304040100

$5.23

38

MASTER LINK FOR CHAIN 525 07

60010266000

Unavailable

37

CHAIN 525 INCL. MASTER LINK

60010365118

$165.86
