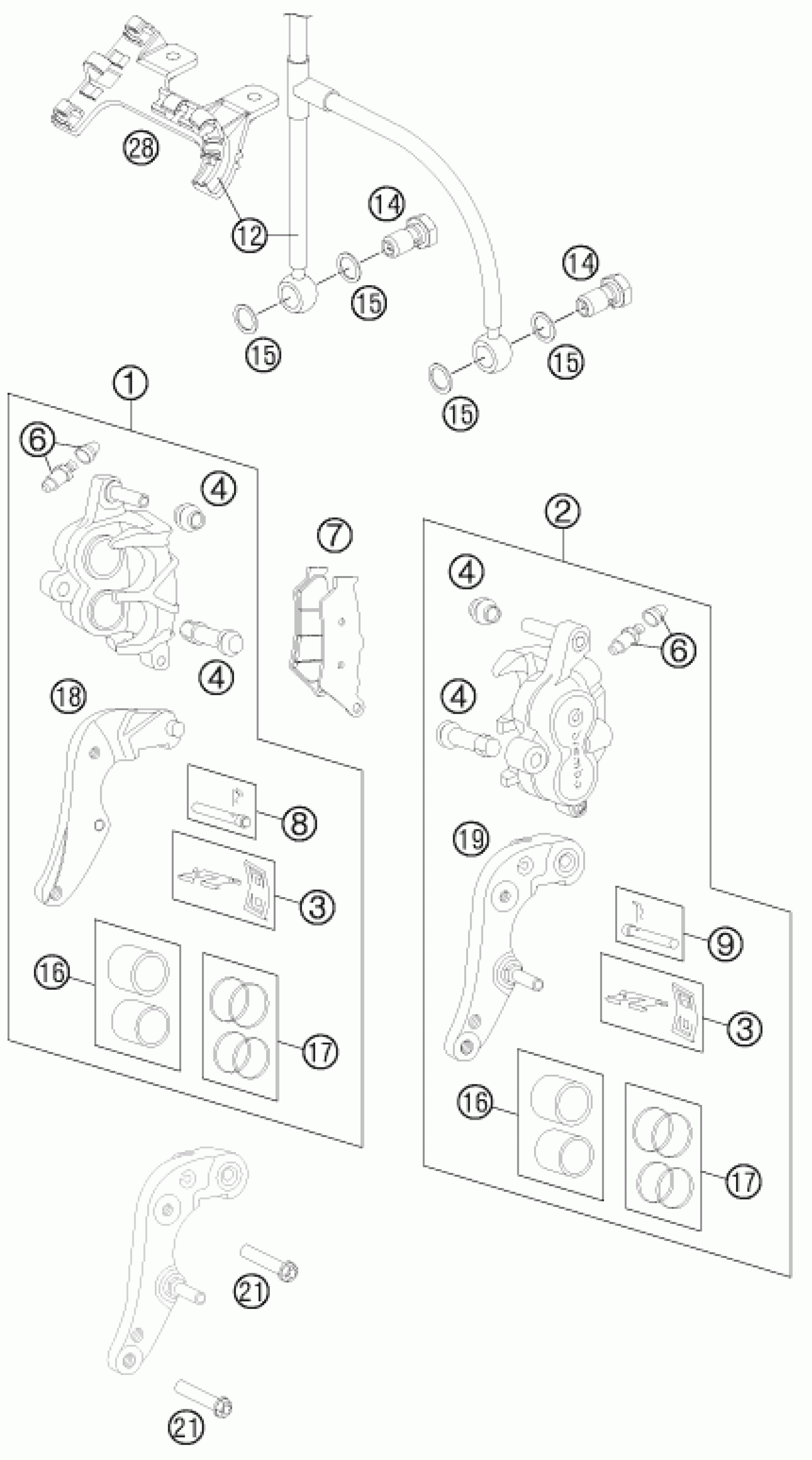

KTM 990 ADVENTURE WHITE ABS CKD <2012> FRONT BRAKE CALIPER Diagram

#

Description
Price

1

BRAKE CAL. FR.R/S-WITHOUT PADS

6011301600133

Unavailable

2

BRAKE CAL. FR.L/S-WITHOUT PADS

6011301500133

Unavailable

3

RETAINING PLATE SET FRONT 03

60013018000

Unavailable

4

CUP SET SHORT

54613218000

Unavailable

6

BLEEDER SCREW WITH CAP

60013020000

Unavailable

7

BRAKE PADS TOSHIBA TT 2172 HHA

60013030000

Unavailable

8

BOLT SET R/S

60013017100

Unavailable

9

BOLT SET L/S

60013017000

Unavailable

12

BRAKE HOSE 1190/715/810MM 06

60142011000

Unavailable

14

HOLLOW SCREW M10X1X19

50213025000

Unavailable

15

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

16

BRAKE PISTONS 30/32MM

60013083000

Unavailable

17

REP.KIT SEALING RINGS 30/32MM

60013019000

Unavailable

18

BRAKE CALIPER SUPPORT FR. R/S

60113049000

Unavailable

19

BRAKE CALIPER SUPPORT FR. L/S

60113049100

Unavailable

21

HH COLLAR SCREW M8X35 TX40

0025080356S

Unavailable

28

BRAKE HOSE GUIDE LOWER 06

60101078000

Unavailable
