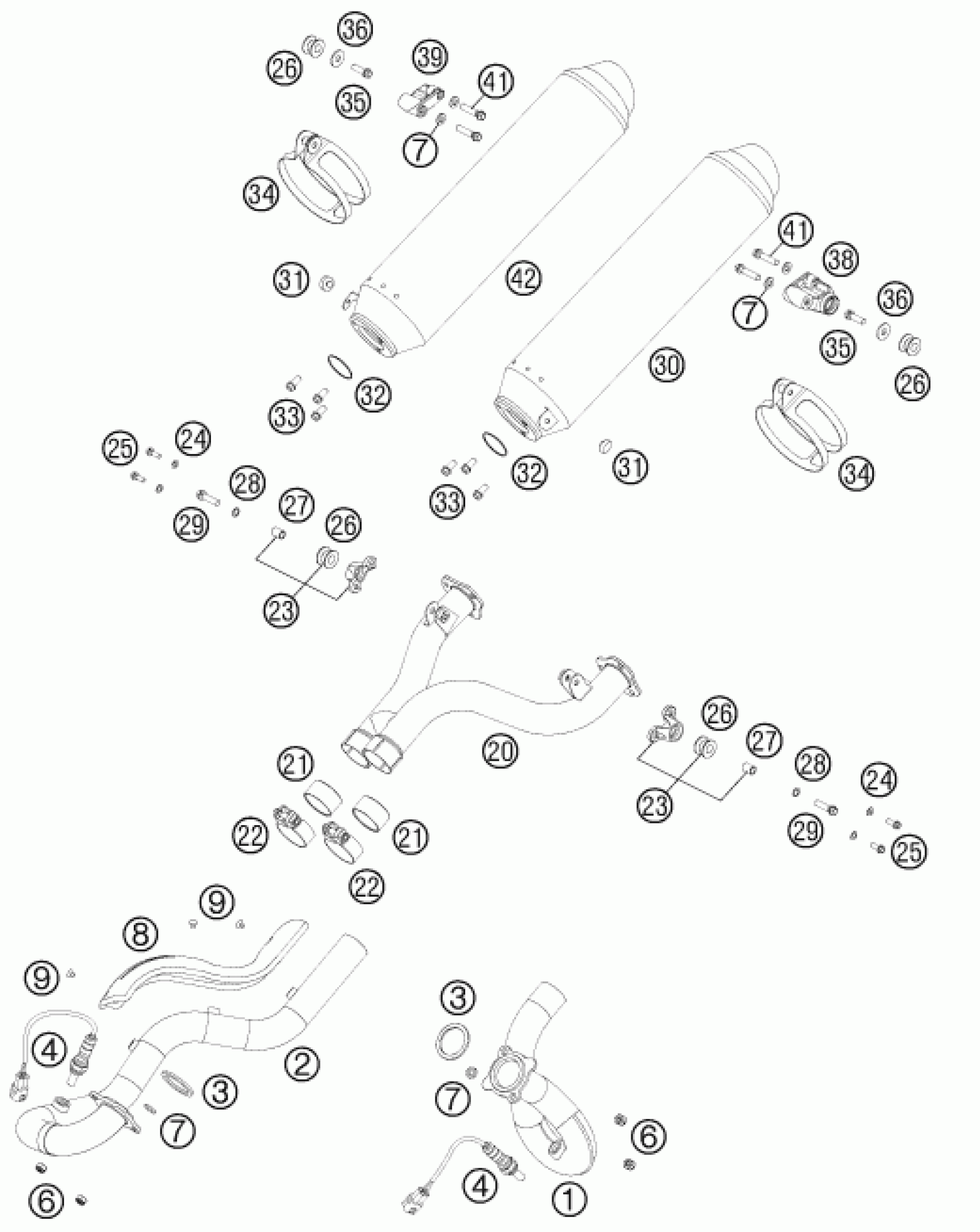

KTM 990 ADVENTURE WHITE ABS CKD <2012> EXHAUST SYSTEM Diagram

#

Description
Price

1

EXHAUST PIPE REAR 06

60105008000

Unavailable

2

EXHAUST PIPE FRONT 06

60105007000

Unavailable

3

Exhaust gasket 05

61005005000

Unavailable

4

LAMBDA SENSOR 05

61041090000

Unavailable

6

self-locking nut M8 Cu

51010086100

Unavailable

7

washer DIN 125 A -8.4

0125080003

Unavailable

8

THERMAL SHIELD 05

60005011000

Unavailable

9

FLAT H.SCREW M6X8 DIN7991 NIRO

0991060082

Unavailable

20

DISTRIBUTOR TUBE LC8 03

60005048000

Unavailable

21

GRAPHIT RING 42X47X25 03

60005005001

Unavailable

22

CLAMP CPL. D=49,2MM 06

60105051000

Unavailable

23

SILENCER BRACKET CPL. 2001

58405085044

Unavailable

24

spring washer DIN 137 B - 6

0137060003

Unavailable

25

HH collar screw M6x20 TX30

0025060206

Unavailable

26

damp. component silicone grey

54305068100

Unavailable

27

Spacer bushing 8.4X12X16

56505069000

Unavailable

28

LOCK WASHER 8MM

36003014000

Unavailable

29

HH collar screw M8x30

0025080306

Unavailable

30

SILENCER L/S 09

60105082100

Unavailable

31

RUBBER BUFFER

54308042000

Unavailable

32

EXHAUST GASKET 03

60005005002

Unavailable

33

HH COLLAR SCREW M8X16 TX40

0025080166

Unavailable

34

CLAMP FOR SILENCER CPL. 03

60005095000

Unavailable

35

HH collar screw M8x25

0025080256

Unavailable

36

WASHER DIN9021-A 8,4

0021080003

Unavailable

38

SILENCER/HANDLE HOLDER L/S 07

6000508500001S

Unavailable

39

SILENCER/HANDLE HOLDER R/S 07

6000508600001S

Unavailable

41

HH collar screw M8x35 TX40

0025080356

Unavailable

42

SILENCER R/S 09

60105083100

Unavailable
