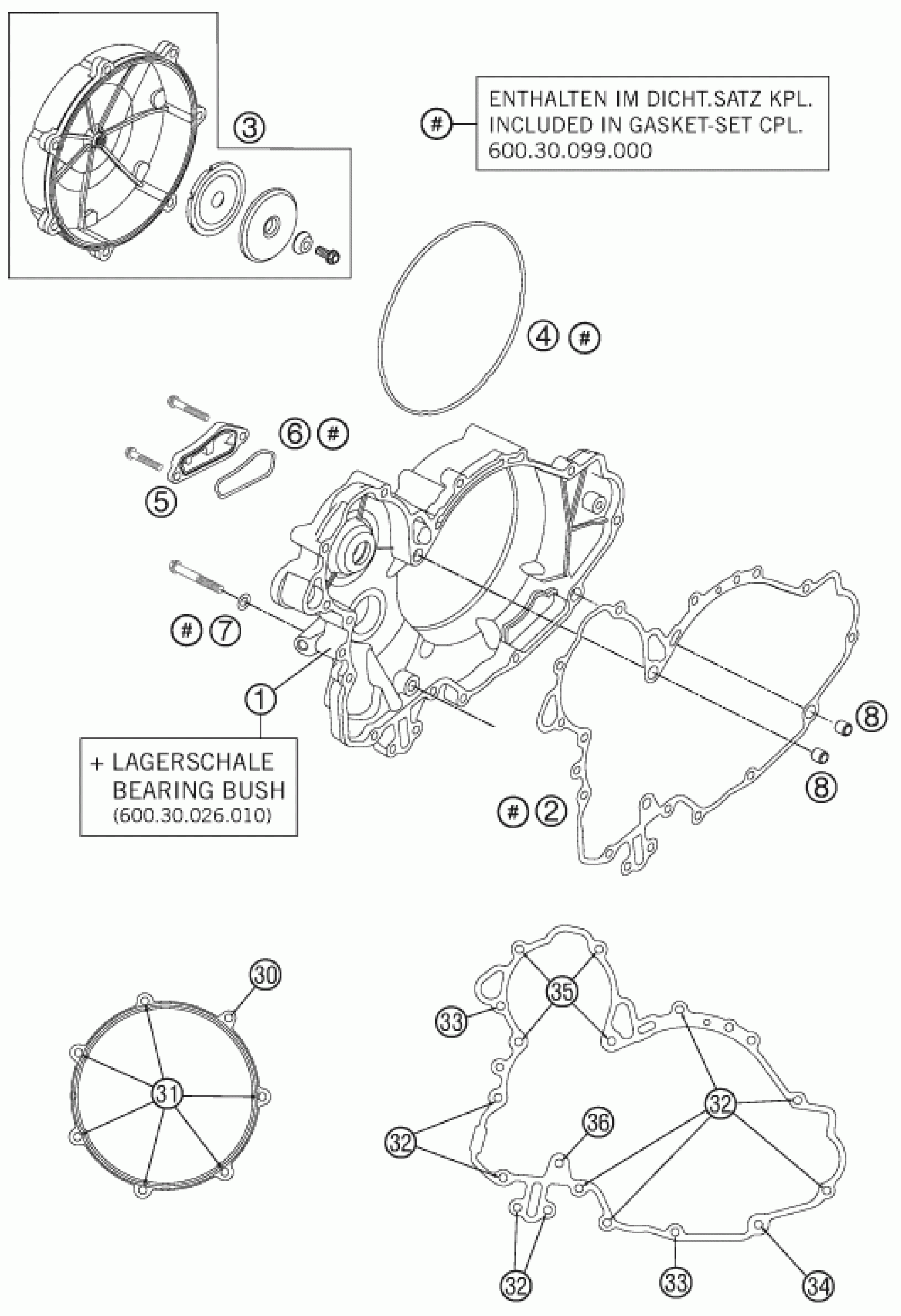

KTM 990 ADVENTURE WHITE ABS CKD <2012> CLUTCH COVER Diagram

#

Description

Price

1

CLUTCH COVER LC8 CPL.08

6003000114423

$207.52

2

CLUT.COV. GASK. INSIDE KLI.SIL

60030025000

$24.49

3

CLUTCH OUTSIDE COVER CPL. 06

6003012614423

$108.73

4

GASKET RING CLUTCH 2X3,1 VAMAC

60030027000

$14.02

5

CLOS. COVER OIL SCR. MILLED 03

60030012100

$20.21

6

MOLDED RING 1,8X2,5 VAMAC 03

60030012050

$9.72

7

COPPER Gask.DIN7603- 8.2X13X1

0603082131

$2.05

8

DOWEL 9,8 X 7 X 10

49030090000

$2.05

30

HH COLLAR SCREW M6X85 TX30

0025060856

$3.08

31

HH collar screw M6x25 TX30

0025060256

$3.08

32

HH collar screw M6x30 TX30

0025060306

$3.08

33

HH collar screw M6x35 TX30

0025060356

$3.08

34

HH collar screw M6x40 TX30

0025060406

$3.08

35

HH collar screw M6x60 TX30

0025060606

$3.08

36

HH COLLAR SCREW M8x60 TX40

0025080606

$3.08
