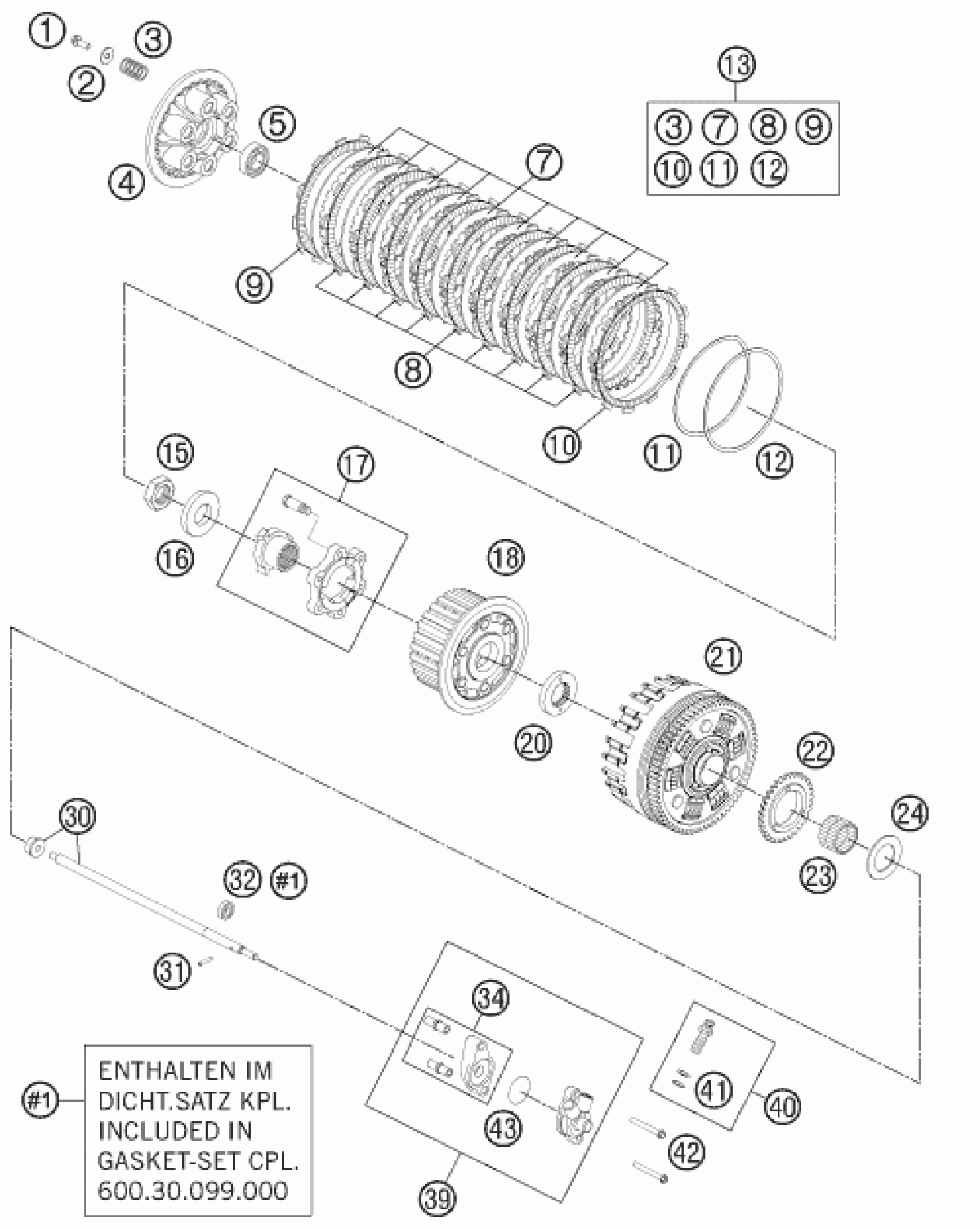

KTM 990 ADVENTURE WHITE ABS CKD <2012> CLUTCH Diagram

#

Description
Price

40

Hollow screw cmpl. M 10x1 98

50332062000

$34.96

41

sealing ring DIN 7603 10x14x1

0603100141

$2.05

34

DISTANCE CLUTCH CONTR. CPL.

60032061050

$57.68

39

SLAVE CYLINDER CPL. LC8 08

60032061244

$220.74

42

HH collar screw M6x50 TX30

0025060506

$3.08

43

O-RING GASKET 03

60032065000

$12.61

1

HH collar screw M6x16 TX30

0025060166

$3.08

2

Washer DIN9021-A 6.4

0021060003

$2.05

3

CLUTCH SPRING LC8 2003

60032005000

$11.40

4

PRESSURE CAP LC8 2003

60032003000

$77.50

5

BALL BEARING 6003 JR2 C4

0625060032

$15.98

7

STEEL DISC 2MM 03

60032010000

$11.68

8

LINING DISK 2,8MM 03

60032011000

$28.14

9

LINING DISK OUTSIDE 2,8MM 03

60032111000

$35.15

10

LINING DISK TURN OUT 2,8MM 03

60032012000

$35.80

11

BELLEVILLE SPRING 2003

60032034000

$34.12

12

THRUST WASHER 2003

60032035000

$13.92

13

CLUTCH KIT LC8 03-13

60032011010

$386.99

15

HEXAGON NUT DIN0936-M22X1,5 R.

0936220155

$2.05

16

PULLEY 22X39X3MM

0125220393

$1.49

17

CLUTCH BOOSTER UNIT CPL. 03

60032080000

$337.34

18

INNER CLUTCH HUB CPL. 03

60032002000

$247.77

20

SECTION WASHER 03

60032021000

$33.93

21

OUT.CLUTCH HUB CPL. 67-T 2004

60032001144

$725.74

22

oil pump gear 32 teeth

60038001132

$27.85

23

Needle bushing HK 30X35X26

0618303526

$60.11

24

STOP DISK 30,2/50/2

60032020000

$7.85

30

PUSH ROD CPL.

60032054400

$41.32

31

Needle roll.DIN5402 NRB 3X17.8

0402031780

$1.49

32

SHAFT SEAL RING 9X18X06 B-NBR

0760091862

$5.23
