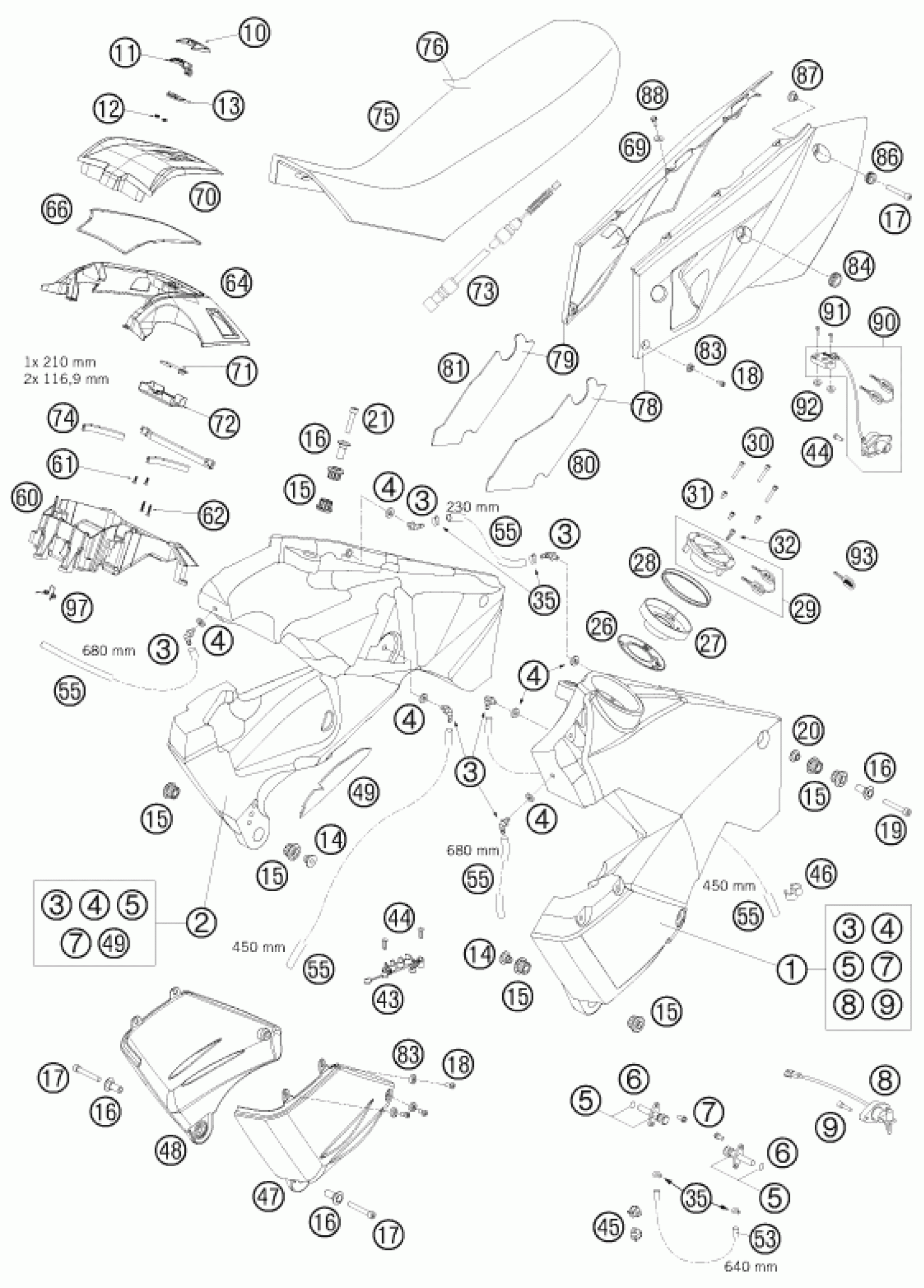

KTM 990 ADVENTURE WHITE ABS 10 <2010 TANK, SEAT Diagram

CONNECT.PIECE F.OVERFLOW M7 03

60007024000

$2.05

FUEL TANK L/S CPL. WHITE 09

6010701324420A

$1,505.94

FUEL TANK R/S CPL. WHITE 08

6010711323320A

$1,505.94

GASKET FOR CONNECTING PIECE 03

60007024050

$2.05

FUEL COCK CPL. SM. RALLYE'96

58507003000

$26.55

O-RING 1,78x10,82x14,38 2-013

0770020130

$2.05

HH collar screw M6x12 TX30

0025060126

$3.08

GAS-LEVEL SENSOR ADV. 2002

58207080000

$85.08

AH collar screw DIN 912 M5x16

0912050163

$1.49

COVER PUSH BUTTON

60107020051

$6.62

PUSH BUTTON

60107020052

$7.10

COIL SPRING

60107020053

$1.49

PUSH BUTTON SUPPORT

60107020054

$6.54

BEAR.BUSH.INSIDE L=15,5MM 03

60007062000

$8.13

TANK RUBBER BUSHING 03

60007065000

$7.28

BEARING BUSHING OUTSIDE 03

60007060000

$11.12

AH SCREW DIN912 M8X55

0912080553

$2.05

AH SCREW DIN6912-M 6X16

0984060163

$2.05

AH SCREW DIN912 M8X50

0912080503

$3.08

BEARING BUSHING INSIDE 03

60007061000

$4.11

AH collar screw DIN0912 M8x40

0912080403

$2.05

SEAL. FLANGE F.TANK INSERT 03

60007008051

$6.54

TANK INSERT 05

60007008150

$19.53

SEAL. RING F. TANK INSERT 03

60007008052

$4.11

TANK PLUG

60007108000

$274.88

AH SCREW DIN0912-M 5X30

0912050303

$1.49

SHCS DIN 912 M5x8

0912050083

$1.49

AH SCREW DIN0912-M 5X12

0912050123

$2.05

CLAMP YDNAC 10128 12MM

58031005000

$3.08

HOSE HOLDER TRIPLE 03

60011057000

$3.48

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

WIRING HOLDER 16MM

57013072100

$1.49

CLAMP D=6/8MM, BLACK

55011022100

$2.05

TANK PROTECTOR L/S 06

60107013050

$14.43

TANK PROTECTOR R/S 06

60107113050

$18.69

THERMAL PROTECT. FOIL TANK 07

60007095100

$24.68

FUEL HOSE 6,4X3,2 L=640

60007416640

$22.90

HOSE EPA D=6/10 L=2000MM

78015019000

Unavailable

STORAGE BOX BOTTOM PART

60107023000

$33.84

SCREW K30X10 T10

0081030103

$1.49

SCREW K30X16 T10

0081030163

$1.49

STOR.BOX CENT.PART BLACK 09

6010701900033

$26.26

COVER GASKET

60107020070

$6.44

PLASTIC WASHER 03

60007020040

$1.49

COVER FOR STORAGE BOX 09

6010702000033

$22.34

LOCK BOLT STORAGE COMPARTMENT

60107019082

$22.12

SUPPORT F. LOCK BOLT

60107019080

$5.29

STORAGE BOX CABLE

60107032000

$41.30

EDGE PROTECTOR PER METER

58312085100

Unavailable

SEAT BLACK 05

6000704020030

$176.99

SEAT COVER BLACK 05

6000704025030

$48.70

SIDE COVER L/S REAR BLACK 09

6010804100033C

$270.76

SIDEPART RI. BACK BLACKMATT 09

6010804200033C

$270.76

THER.PROT.FOIL SI. CO. L/S 07

60008041150

$25.70

THER.PROT.FOIL SI. COV. R/S 07

60008042150

$38.79

SPECIAL WASHER D=16,5MM 03

60008045000

$3.08

RUBBER SLEEVE F.SEAT LOCK 09

60107053000

$7.94

RUBBER SLEEVE D=12MM

41001052000

$4.11

COLLAR BUSHING 8,2X12X20X9 03

60012008002

$4.11

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

SEAT LOCK

60107050000

Unavailable

COU.SUNK SCR. AH ISO7380 M6X30

0738060301

$1.49

DISTANCE BUSH. 7X12X18X3,7 03

60008013050

$2.32

KEY BLANK LC4/DUKE/LC8

40011166100

Unavailable

STORAGE COVER BOX SPRING

60107023080

$7.28
