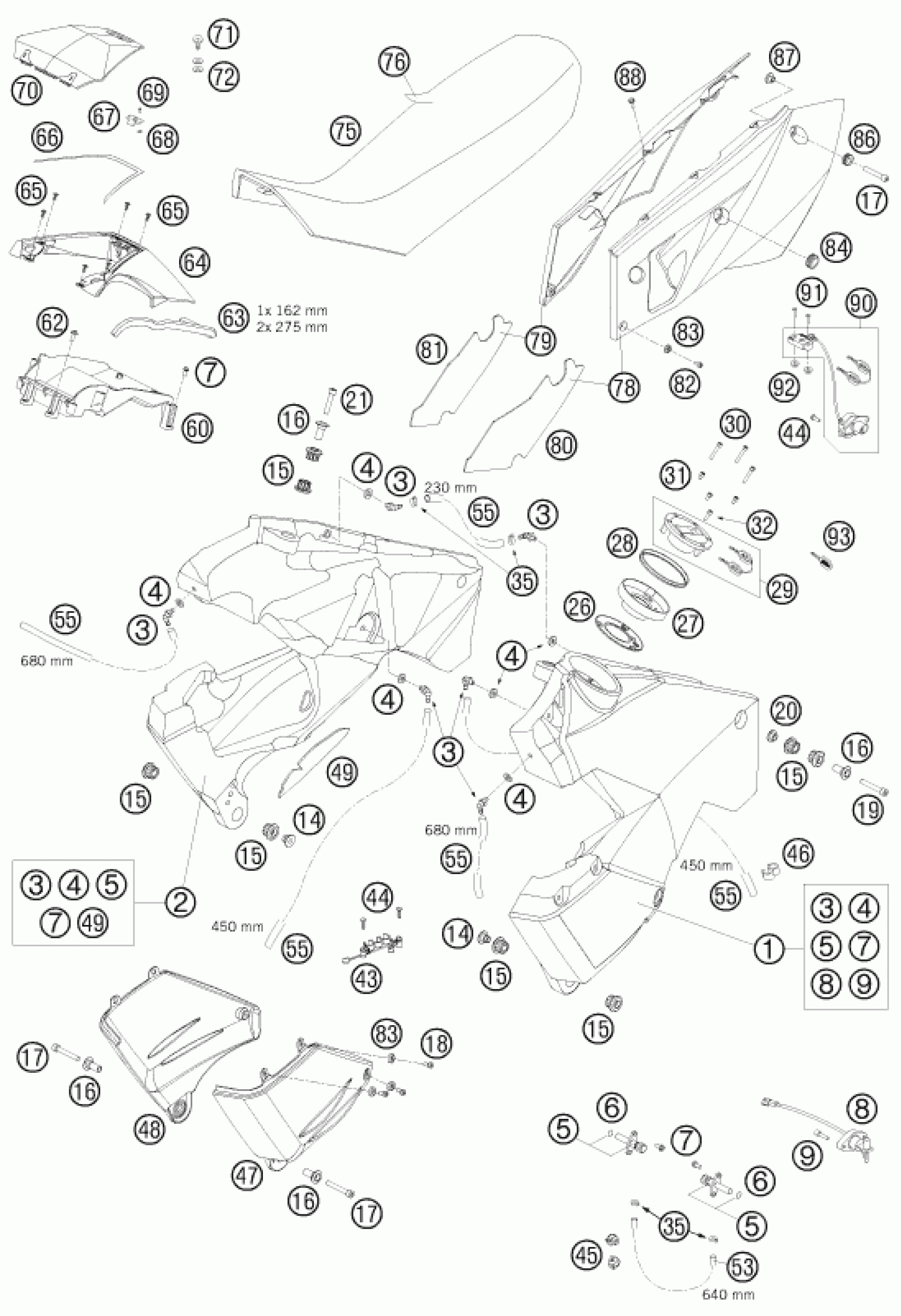

KTM 990 ADVENTURE S 2008 TANK, SEAT Diagram

#

Description
Price

28

SEAL. RING F. TANK INSERT 03

60007008052

$4.11

1

FUEL TANK L/S CPL. BLUE 06

6010701314406A

$1,500.43

2

FUEL TANK R/S CPL. BLUE 07

6010711313306A

$1,500.43

3

CONNECT.PIECE F.OVERFLOW M7 03

60007024000

$2.05

4

GASKET FOR CONNECTING PIECE 03

60007024050

$2.05

5

FUEL COCK CPL. SM. RALLYE'96

58507003000

$26.55

6

O-RING 11X1,8 NBR 70

55007006200

$2.05

7

HH collar screw M6x12 TX30

0025060126

$3.08

8

GAS-LEVEL SENSOR ADV. 2002

58207080000

$85.08

9

AH collar screw DIN 912 M5x16

0912050163

$1.49

14

BEAR.BUSH.INSIDE L=15,5MM 03

60007062000

$8.13

15

TANK RUBBER BUSHING 03

60007065000

$7.28

16

BEARING BUSHING OUTSIDE 03

60007060000

$11.12

17

AH SCREW DIN912 M8X55

0912080553

$2.05

18

AH SCREW DIN6912-M 6X16

0984060163

$2.05

19

AH SCREW DIN912 M8X50

0912080503

$3.08

20

BEARING BUSHING INSIDE 03

60007061000

$4.11

21

AH collar screw DIN0912 M8x40

0912080403

$2.05

26

SEAL. FLANGE F.TANK INSERT 03

60007008051

$6.54

27

TANK INSERT 05

60007008150

$19.53

29

TANK PLUG

60007108000

$274.88

30

AH SCREW DIN0912-M 5X30

0912050303

$1.49

31

SHCS DIN 912 M5x8

0912050083

$1.49

32

AH SCREW DIN0912-M 5X12

0912050123

$2.05

35

CLAMP YDNAC 10128 12MM

58031005000

$3.08

43

HOSE HOLDER TRIPLE 03

60011057000

$3.48

44

SCREW FOR PLASTIC D=5X18

0081500181

$2.05

45

WIRING HOLDER 16MM

57013072100

$1.49

46

CLAMP D=6/8MM, BLACK

55011022100

$2.05

47

TANK PROTECTOR L/S 06

60107013050

$14.43

48

TANK PROTECTOR R/S 06

60107113050

$18.69

49

THERMAL PROTECT. FOIL TANK 07

60007095100

$24.68

55

HOSE NBR 5,4X9,4 PER METER

60007026001

Unavailable

60

STORAGE BOX BOTTOM PART 06

60007023100

$14.10

62

HH collar screw M6x15 TX30

0024060156

$3.08

63

EDGE PROTECTOR PER METER

58312085100

$22.52

64

STOR.BOX CENT.PART ORANGE 04

6000701900004A

$127.31

65

SCREW FOR PLASTIC 50X12

0016050121

$2.05

66

GASKET F.STOR.BOX CENT.PART 03

60007019050

$1.82

67

Past mount quick lock

45007040050

$4.11

68

WASHER DIN9021-A 3,2MM

0021030003

$1.49

69

DUMMY RIVET 3,2X10 ALU

0011321000

$1.49

70

COVER F. STORAGE BOX ORANGE 04

6000702000004A

$92.45

71

QUICK RELEASE PIN WITH RING 03

60007020030

$14.14

72

PLASTIC WASHER 03

60007020040

$1.49

75

SEAT 950 ADV. ORANGE 05

6000704000004A

$126.92

76

SEAT COVER ORANGE 05

6000704005004A

$35.02

78

SIDE COVER L/S REAR BLUE 06

6000804100006B

$269.55

80

THER.PROT.FOIL SI. CO. L/S 07

60008041150

$25.70

81

THER.PROT.FOIL SI. COV. R/S 07

60008042150

$38.79

79

SIDE COVER R/S REAR BLUE 08

6010804200006A

Unavailable

82

AH SCREW DIN6912-M 6X16

0984060163

$2.05

83

SPECIAL WASHER D=16,5MM 03

60008045000

$3.08

84

RUBBER SLEEVE F.SEAT LOCK '99

58707050050

$3.08

86

RUBBER SLEEVE D=12MM

41001052000

$4.11

87

COLLAR BUSHING 8,2X12X20X9 03

60012008002

$4.11

88

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

90

SEAT LOCK LC8 ADV. 03

60007050000

$74.51

91

COU.SUNK SCR. AH ISO7380 M6X30

0738060301

$1.49

92

DISTANCE BUSH. 7X12X18X3,7 03

60008013050

$2.32

93

KEY BLANK LC4/DUKE/LC8

40011166100

Unavailable

53

FUEL HOSE 6,4X3,2 L=640

60007416640

Unavailable
