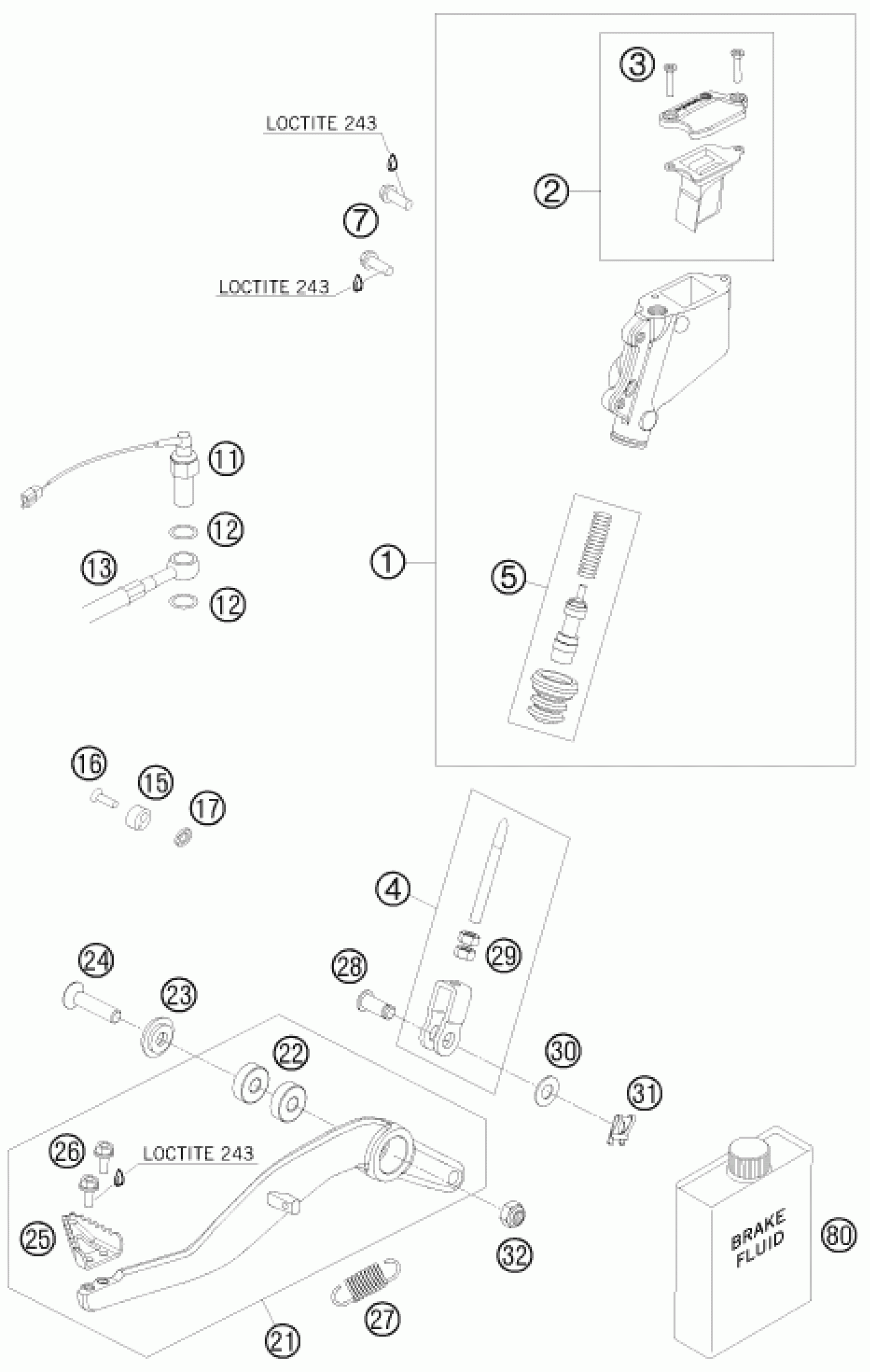

KTM 990 ADVENTURE S 2008 REAR BRAKE CONTROL Diagram

MAIN BRAKE CYLINDER CPL. 07

60013060300

$203.35

COVER MAIN BRAKE CYLINDER CPL.

60013059100

$41.04

FLAT HEAD SCREW DIN0965-M 4X16

0965040161

$1.49

PUSH ROD CPL. 06

63013056044

$23.81

REPAIR KIT PISTON 07

60013061100

$53.38

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

$2.05

BRAKE LIGHT SWITCH REAR '98

50311051100

$36.92

sealing ring DIN 7603 10x14x1

0603100141

$2.05

BRAKE HOSE REAR 03

60013072000

$117.71

BRAKE LEVER STOP LC4 03

58413048000

$5.79

FLAT H.SCREW DIN7991-M6X20

0991060203

$2.05

TOOTH LOCK WASH. DIN6797-A 6,4

0797060003

$1.49

FOOT BRAKE LEVER CPL. 07

6001305004401S

$116.77

Grooved ball bearing 608 2RS C

0625006087

$21.40

SPECIAL WASHER ALU 8X24MM 03

60003061000

$6.44

FLAT HEAD SCREW DIN7991-M 8X35

0991080353

$2.61

STEP PLATE FOOT BRAKE LEVER 03

60013051000

$5.60

HH collar screw M5x12 TX30

0025050126

$3.08

RETURN SPRING FOR BRAKELEVER

54603062000

$6.54

BOLT F. LINK FORK 8X20X16,5

60013057000

$4.11

Hex. nut DIN 934 M6

0934060003

$1.49

washer DIN 125 A -8.4

0125080003

$1.49

SECURING CLIP D=8MM 03

60013058000

$2.05

SELF LOCKING NUT DIN0985-M 8

0985080003

$2.05

Brake fluid DOT5.1 0,25L

00062030000

$12.52
