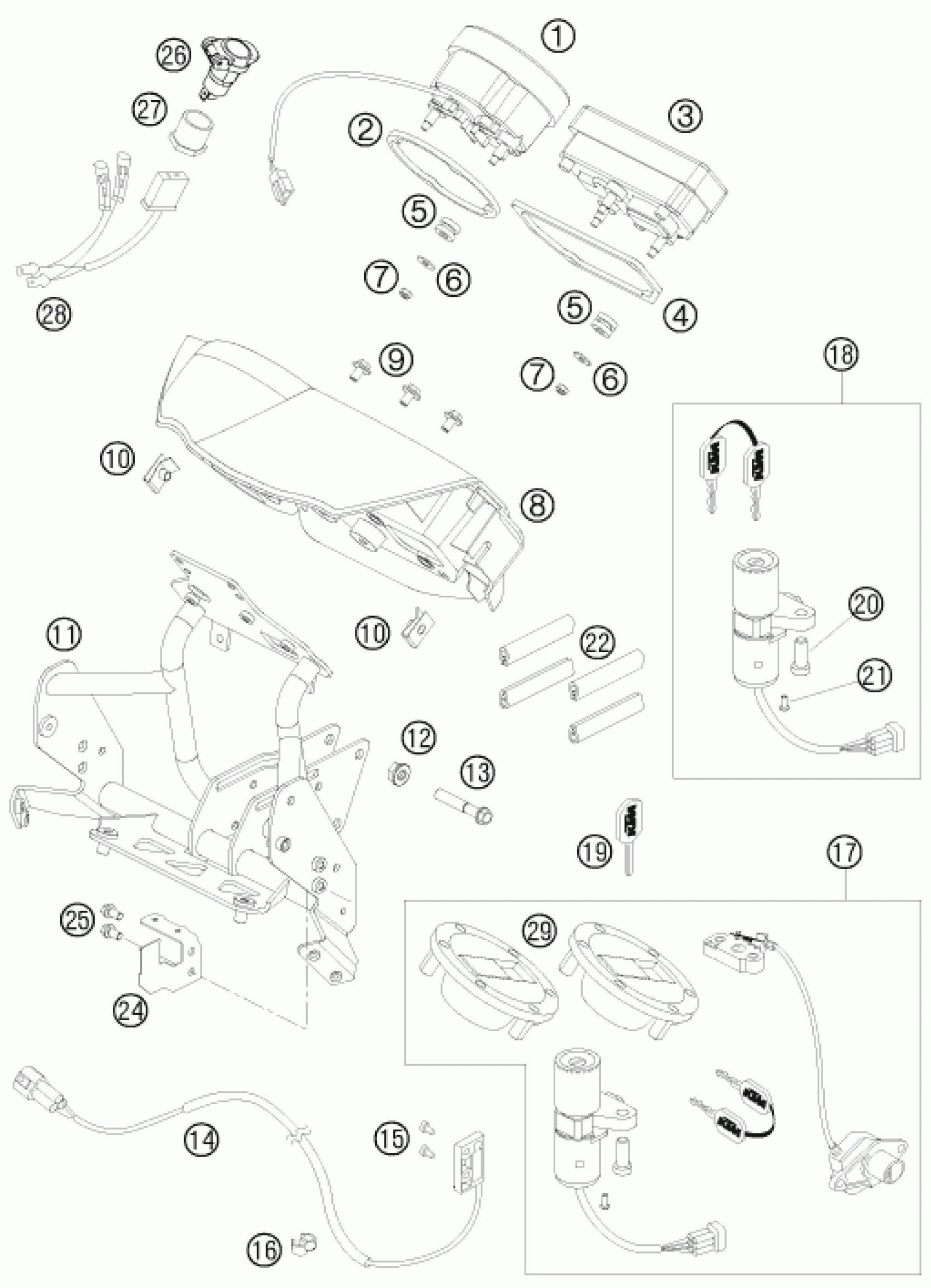

KTM 990 ADVENTURE S 2008 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

1

REV COUNTER LC8 03

60014075000

$242.10

2

DAMPING RING SPEEDOMETER 03

60014068100

$5.65

3

DIGITAL SPEEDOMETER 05

61014069000

$500.81

4

DAMPING RING TACHOMETER 03

60014068000

$4.83

5

rubber grommet 16x10.8x3

58214069051

$5.23

6

washer DIN 9021 A - 5.3

0021050003

$1.49

7

Self locking nut DIN 985 M5

0985050003

$2.05

8

INSTRUMENTS COVER

60014070100

$48.01

9

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

10

clip nut M6

54603048100

$4.11

11

COCKPIT SUPPORT 06

60114010000

$413.07

12

Self locking nut M8 10.9

54310086200

$3.08

13

HH collar screw M8x45 TX40

0025080456

$4.11

14

SPEEDOMETER SENSOR 06

62514068100

$94.52

15

CYL.HEAD SCREW DIN0084-M 4X8 A

0084040083

$1.49

16

CLIP 5/7 MM 06

60111094000

$3.08

17

LOCK SYSTEM LC8 ADV. 07

60011066244

$504.85

18

IGNITION LOCK LC8 ADV. 03

60011066000

$190.90

19

KEY BLANK LC4/DUKE/LC8

40011166100

Unavailable

20

TAMPERPROOF SCREW F. IGN. LOCK

60011064000

$5.23

21

FLAT HEAD SCREW DIN7985-M 4X12

0985040123

$1.49

22

EDGE PROTECTOR 14X9,5X66 MM 06

60114010070

$3.08

24

SUPPORT ROLLOVER SENSOR 06

60103001166

Unavailable

25

HH collar screw M6x10 TX30

0025060106

$3.08

26

SOCKET

60111042000

$30.59

27

NUT FOR SOCKET 07

60111042050

$4.36

28

CABLE FOR SOCKET 07

60111042060

$6.79

29

TANK PLUG

60007108000

$274.88
