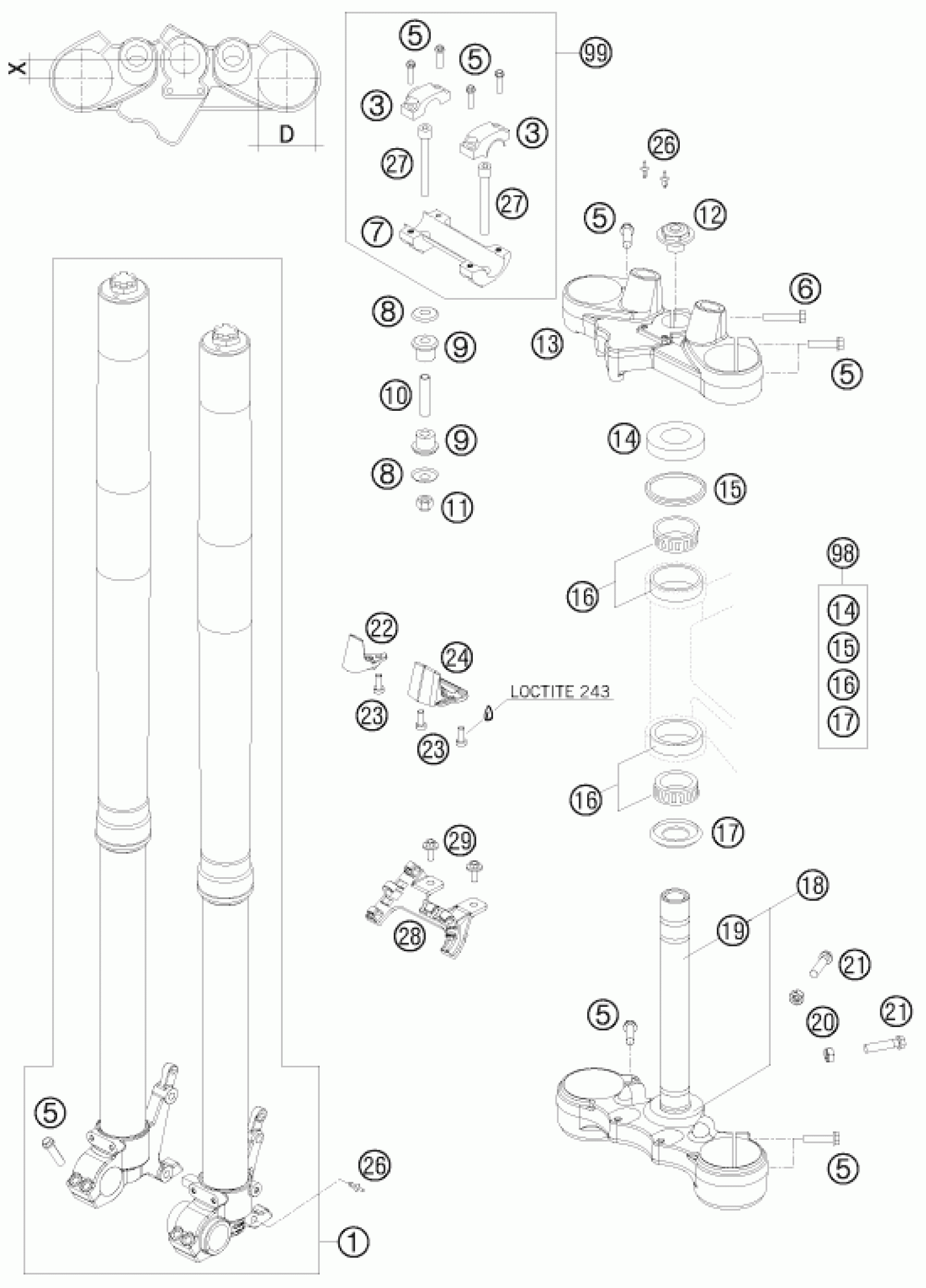

KTM 990 ADVENTURE S 2008 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

FORK WP D48 ADVENTURE-S 08

14187D25

Unavailable

3

HANDLEBAR CLAMP 28MM 07

5900103830001S

Unavailable

5

HH collar screw M8x30

0025080306

Unavailable

6

HH collar screw M8x35 TX40

0025080356

Unavailable

8

washer 10.5x32x2

56401042000

Unavailable

9

rubber bushing

56401040000

Unavailable

10

SPACER TUBE 10,2X12X44

56401041100

Unavailable

7

HANDLEBAR SUPPORT 28MM 07

5900103920001S

Unavailable

11

SELF LOCK.NUT DIN0982-M10 HIGH

0982100003

Unavailable

12

STEER.HEAD SCREW M20x1,5 SW=27

54801036200

Unavailable

13

TOP TRIPLE CLAMP X=18MM/D=54MM

6000103401801S

Unavailable

14

STEERING HEAD COVER

54201086000

Unavailable

15

STEARING HEAD GASKET TOP

54601184000

Unavailable

16

TAPERED ROLLER BEARING CPL. 06

54201081100

Unavailable

17

O-RING SUPPORT W. SEALING LIP

54601084100

Unavailable

18

BOTTOM TRIPLE CLAMP CPL. D=60

6000103201801S

Unavailable

19

FORK TUBE LC8 ADV 03

60001033000

Unavailable

20

Hexagon nut DIN934 M8

0934080003

Unavailable

21

HH SCREW DIN0933-M 8X25

0933080253

Unavailable

22

BRAKE HOSE GUIDE TOP 06

60101077000

Unavailable

23

AH SCREW DIN6912 M6X16 SL

0012060164

Unavailable

24

CABLE GUIDE 06

60101079000

Unavailable

26

PLASTIC CAP FOR M6 03

60003088000

Unavailable

27

AH SCREW DIN6912-M10X70

0984100703

Unavailable

28

BRAKE HOSE GUIDE LOWER 06

60101078000

Unavailable

29

HH collar screw M6x15 TX30

0024060156

Unavailable

99

HANDLEBAR SUPPORT KIT

00050000922

Unavailable

98

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable
