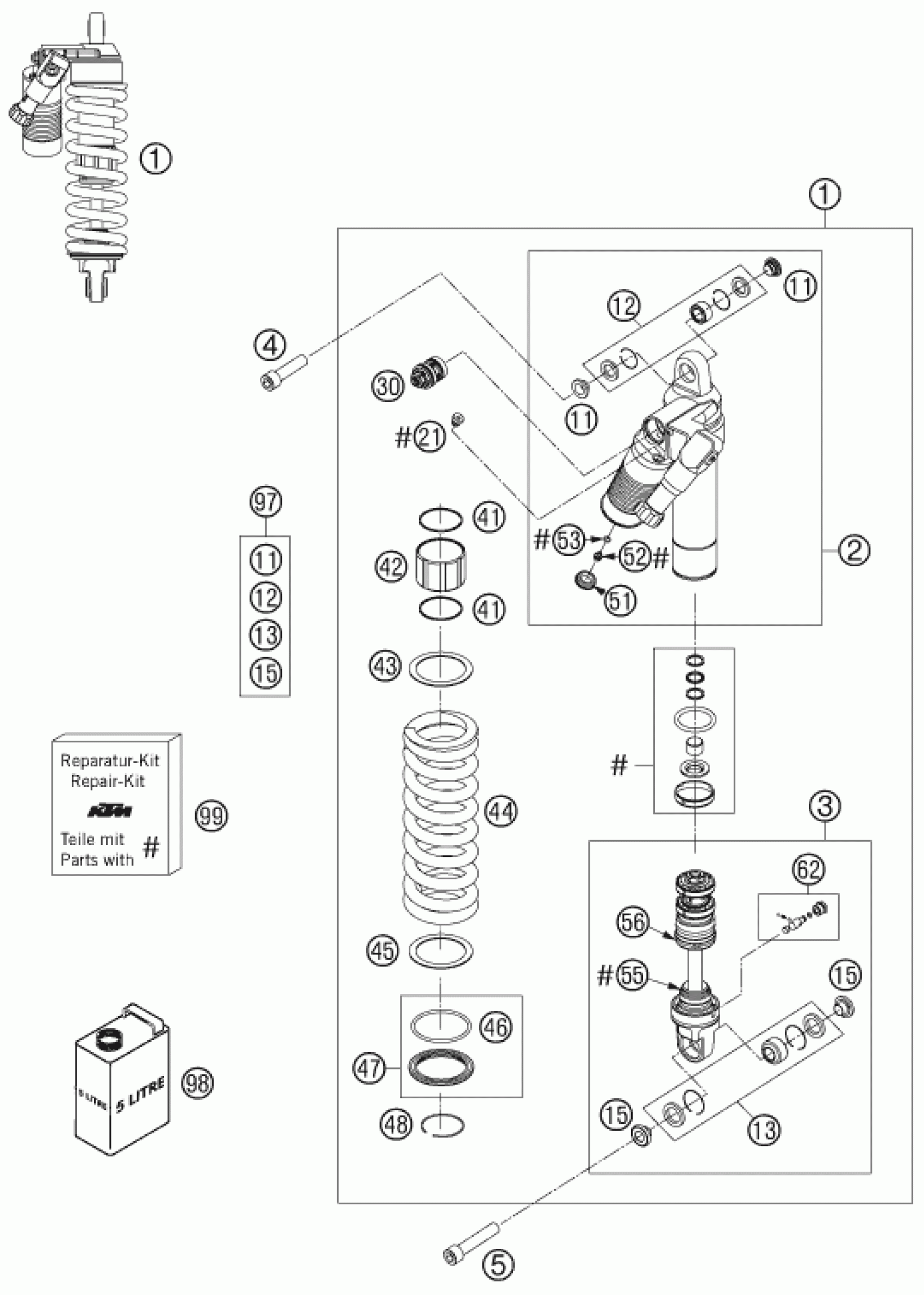

KTM 990 ADVENTURE S 2007 SHOCK ABSORBER Diagram

#

Description
Price

1

MONOSHOCK 990 ADVENTURE S 07

12187C09

Unavailable

2

MONOSHOCK UPPER PART CPL. 07

50180412S2

$841.68

3

MONOSHOCK LOWER PART CPL. 07

50180358S4

$622.20

4

SCREW M14X1,5 L=55MM 03

60004016000

$3.08

5

SCREW M14X1,5 L=73MM 03

60004017000

$5.23

12

Ball joint bearing kit top 12m

R12012

$35.71

41

spreader ring 50X1,5

50180133

$7.40

42

Spring guide 54,15x60x40

50180081

$5.61

46

O-ring 66,27x1,78 Viton70

50180352

$3.08

47

SPRING RET. D=80 W. O-RING 05

50180463S

$29.21

51

Rubber cap do not open 22x5,5

46811208

$3.08

52

HS lock screw M5x6

36120151

$1.86

53

O-ring 5,28x1,78 NBR70 black

46810893

$1.49

55

Rubber pad 17,2x45,2x40 black

50180276

$8.41

43

Intermediate washer spring 61,

50180114

$3.08

44

SPRING 140-265 (62) D=15,0

91210022

$125.26

45

Interm. ring spring ret. H=3.5

50180402

$55.27

98

SHOCK ABSORBER FLUID 5 LT '03

50180342S1

$149.59

99

REPAIR-KIT GASKET 5018 PDS 03

R12008

$123.66

11

Bearing bush 14x15/18/24,5x10,

50180366

$13.94

13

REP.KIT BEAR/SEAL LOWER ADV 07

R12013

$73.86

15

Bearing bush 14x16/21,8/29x14

50180365

$14.95

21

HS cylinder-head screw R1/8 l8

50180095

$2.42

30

50180213S4

Unavailable

56

Cap 50,1x17,5 h6

50180165

$43.98

62

ADJUSTING SCREW REBOUND TRAVEL

50180434S

$28.14

48

Round-wire snap ring 58,5x2

50180273

$2.05

97

MONOSHOCK REP. KIT

00050000035

Unavailable
