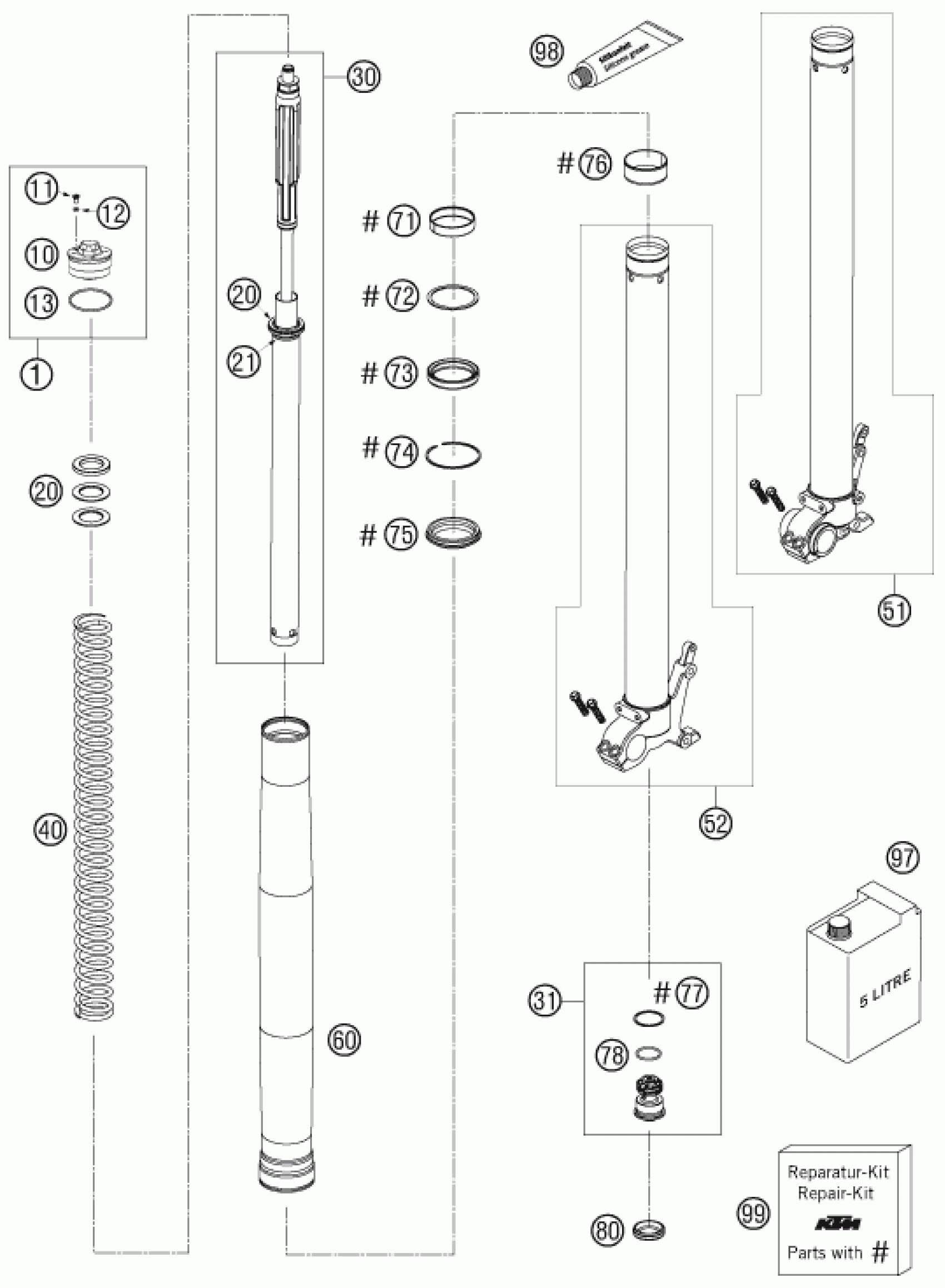

KTM 990 ADVENTURE S 2007 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

31

TAP COMPRESSION CPL.

48600586S2

Unavailable

51

AXLE CLAMP LEFT ADV. CPL. 07

48600499S1

Unavailable

76

DU-BUSH D47XD49X20DDL02

48600428

Unavailable

77

Copper disc 29,5x33,5x1

48600004

Unavailable

78

O-ring 24x2 NBR70

35480320

Unavailable

80

Rubber cap 35x10 NBR80

48600141

Unavailable

97

FORK OIL SAE5 5L 2005

48600401S1

Unavailable

98

SILICONE GREASE F. DUST STRI

T511

Unavailable

99

REPAIR-KIT EXC FRONT FORK06/07

R14013

Unavailable

21

Spring retainer 33,5x43x3

48600021

Unavailable

30

CARTRIDGE CPL. ADVENTURE S 07

48600226S

Unavailable

40

SPRING 4,8N/MM SET D=5,25 MM

91410020S

Unavailable

60

Fork outer tube 49,127x610 dt5

48600422E

Unavailable

71

DU-BUSH D48XD52X12DDL02

48600429

Unavailable

72

Supportwasher 50x57,6x1,5

48600013

Unavailable

73

Shaft seal SKF 48x57,8x9,5 bla

48600399

Unavailable

74

Snap ring SB58x1,5 acc drawing

48600070

Unavailable

75

DUST CAP D=48 58,4X11,8

48600400

Unavailable

1

PRE-LOAD ADJ. CPL. M51X1,5 05

48600431S

Unavailable

10

Screw cap M51x1,5

48600431

Unavailable

11

Cross countersunk head screw M

48600481

Unavailable

12

O-ring 3x1,5 NBR70

48600046

Unavailable

13

O-ring 45x2 NBR70 siliconized

46810340

Unavailable

20

Preload bush 26,5x42x5

48600037

Unavailable

20

Preload bush 42x26,5x2,5

48600036

Unavailable

20

Preload bush 26,5x42x1,5

48600053

Unavailable

52

AXLE CLAMP RIGHT ADV. CPL. 07

48600500S1

Unavailable
