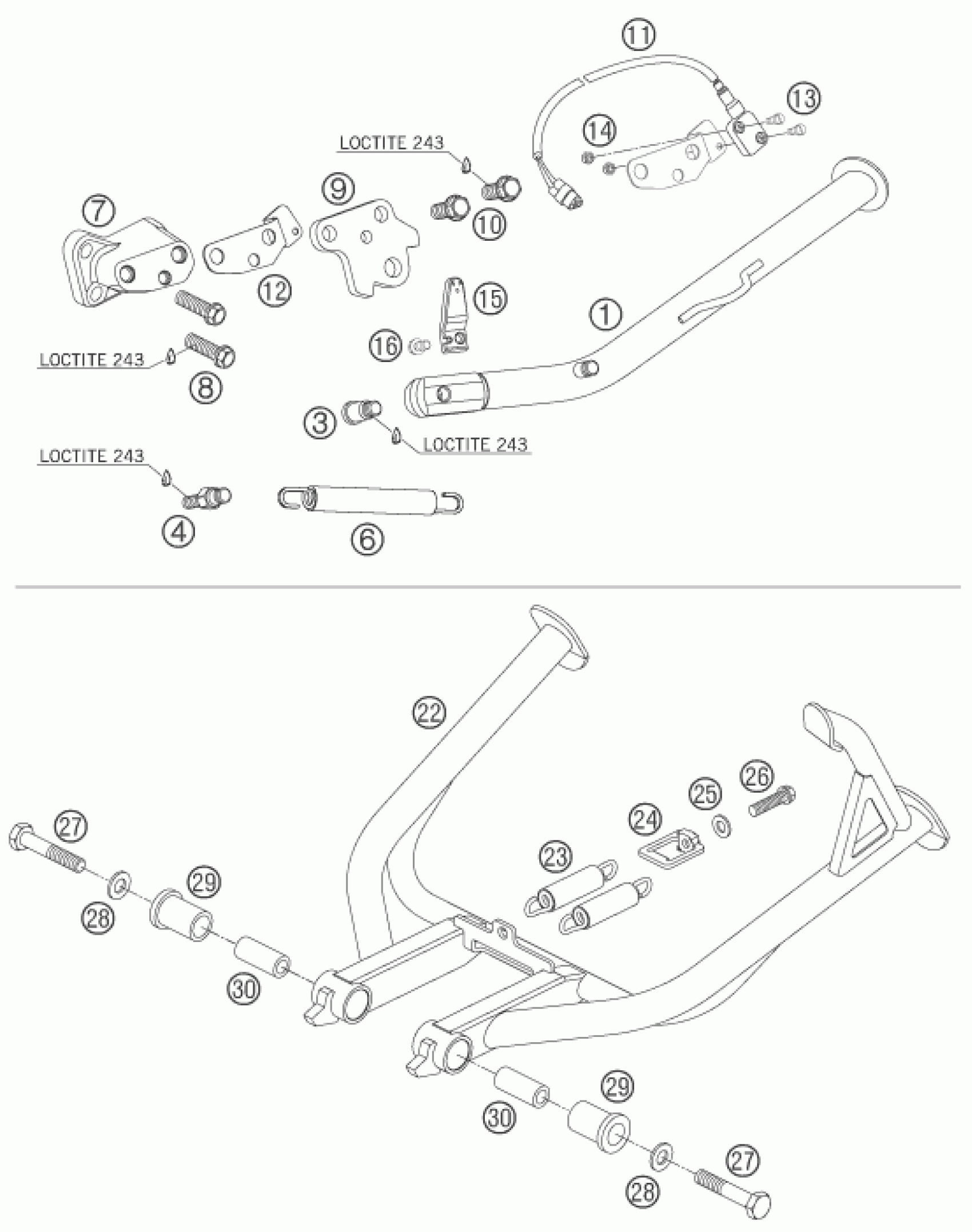

KTM 990 ADVENTURE S 2006 SIDE / CENTER STAND Diagram

#

Description
Price

1

SIDE STAND L=331 06

6010302300030

Unavailable

3

SCREW F. SIDE STAND M10X31,2

62503027100

Unavailable

4

SCREW SIDE STAND SPRING 05

61003028001

Unavailable

6

SPRING L=116 MM 05

61003024000

Unavailable

7

SIDE STAND BRACKET 03

60003026000

Unavailable

8

HH COLLAR SCREW M10X30 WS=13

0015100303

Unavailable

9

SIDE STAND PICKUP 06

60103028000

Unavailable

10

HH COLLAR SCREW M10X24 WS=13

0015100243

Unavailable

11

Side stand sensor

61011045000

Unavailable

12

SUPPORT F.SIDE STAND SWITCH 06

60103029000

Unavailable

13

CYL.HEAD SCREW DIN84A M4x12

0084040123

Unavailable

14

SELF LOCKING NUT DIN0985-M 4

0985040003

Unavailable

15

MAGNET HOLDER ADV. 06

60103029050

Unavailable

16

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

22

CENTER STAND L=359MM 05

6000302230030

Unavailable

23

SPRING FOR CENTER STAND 03

60003030000

Unavailable

24

SPRING TENSIONER 03

60003022115

Unavailable

25

washer DIN 125 A -8.4

0125080003

Unavailable

26

HH COLLAR SCREW M 8X30 WS=10

0015080303

Unavailable

27

SPECIAL SCREW M10X55 WS=17

56503093000

Unavailable

28

washer DIN 125 A 10.5

0125100003

Unavailable

29

BEARING BUSH CENTER STAND 03

60003022020

Unavailable

30

SPACER 10X16X38 MM 03

60003022021

Unavailable
