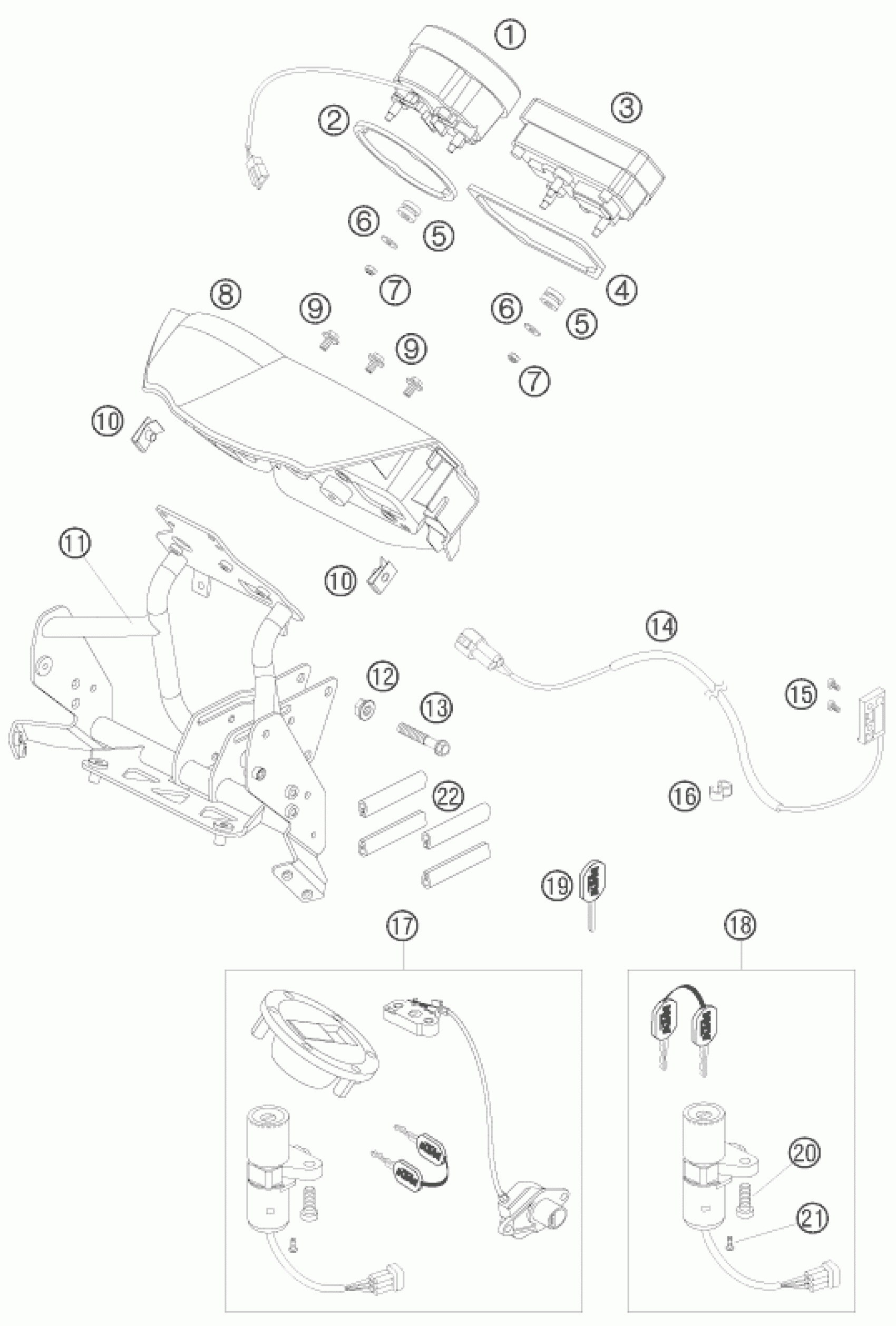

KTM 990 ADVENTURE S 2006 INSTRUMENTS / LOCK SYSTEM Diagram

REV COUNTER LC8 03

60014075000

$242.10

DAMPING RING SPEEDOMETER 03

60014068100

$5.65

DIGITAL SPEEDOMETER 05

61014069000

$500.81

DAMPING RING TACHOMETER 03

60014068000

$4.83

rubber grommet 16x10.8x3

58214069051

$5.23

washer DIN 9021 A - 5.3

0021050003

$1.49

Self locking nut DIN 985 M5

0985050003

$2.05

INSTRUMENT COVER LC8 03

60014070000

$37.47

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

clip nut M6

54603048100

$4.11

COCKPIT SUPPORT 06

60114010000

$413.07

Self locking nut M8 10.9

54310086200

$3.08

HH COLLAR SCREW M 8X45 WS=10

0015080453

$2.05

SPEEDOMETER SENSOR 06

62514068100

$94.52

CYL.HEAD SCREW DIN0084-M 4X8 A

0084040083

$1.49

CLAMP D=6/8MM, BLACK

55011022100

$2.05

LOCK SYSTEM LC8 ADV. 03

60011066044

$379.86

IGNITION LOCK LC8 ADV. 03

60011066000

$190.90

KEY BLANK LC4/DUKE/LC8

40011166100

Unavailable

TAMPERPROOF SCREW F. IGN. LOCK

60011064000

$5.23

FLAT HEAD SCREW DIN7985-M 4X12

0985040123

$1.49

EDGE PROTECTOR 14X9,5X66 MM 06

60114010070

$3.08
