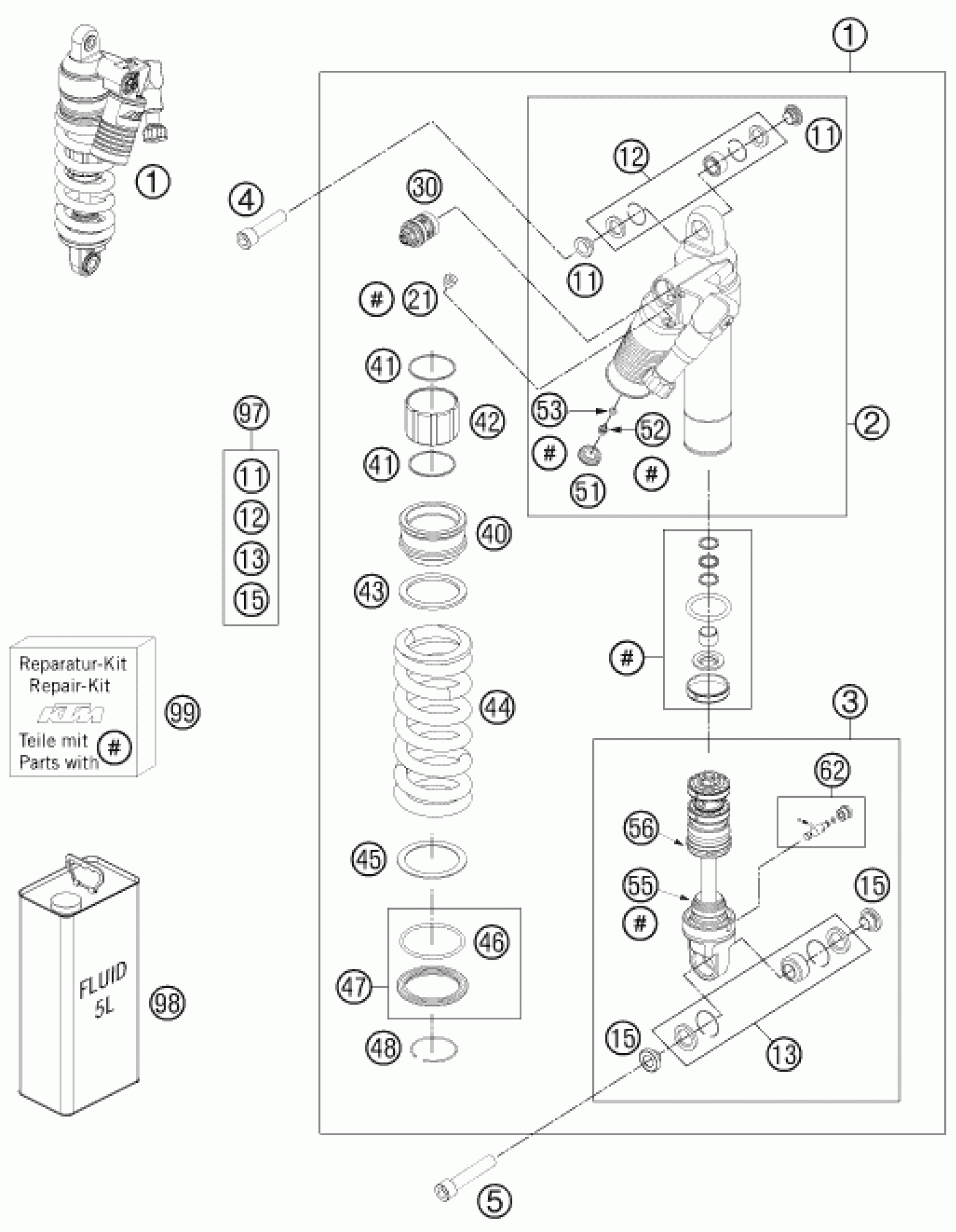

KTM 990 ADVENTURE R 2011 SHOCK ABSORBER Diagram

Spring retainer 56,5x78x35

50180465

$58.73

REPAIR-KIT GASKET 5018 PDS 03

R12008

$123.66

MONOSHOCK 990 ADVENTURE-R 2011

12187K0901

$1,233.00

MONOSHOCK UPPER PART CPL. 07

50180412S2

$841.68

MONOSHOCK LOWER PART

50180358S5

Unavailable

SCREW M14X1,5 L=55MM 03

60004016000

$3.08

SCREW M14X1,5 L=73MM 03

60004017000

$5.23

Bearing bush 14x15/18/24,5x10,

50180366

$13.94

Ball joint bearing kit top 12m

R12012

$35.71

REP.KIT BEAR/SEAL LOWER ADV 07

R12013

$73.86

Bearing bush 14x16/21,8/29x14

50180365

$14.95

HS cylinder-head screw R1/8 l8

50180095

$2.42

50180213S4

Unavailable

spreader ring 50X1,5

50180133

$7.40

Spring guide 54,15x60x40

50180081

$5.61

Intermediate washer spring 61,

50180114

$3.08

SPRING 130-225 D=14 (62)

91210093S

Unavailable

SPRING 140-225 D=14,25 (62)

91210090S

$115.98

SPRING 150-225 D=14,5 (62)

91210092S

Unavailable

Interm. ring spring ret. H=3.5

50180402

$55.27

O-ring 66,27x1,78 Viton70

50180352

$3.08

SPRING RET. D=80 W. O-RING 05

50180463S

$29.21

Round-wire snap ring 58,5x2

50180273

$2.05

Rubber cap do not open 22x5,5

46811208

$3.08

HS lock screw M5x6

36120151

$1.86

O-ring 5,28x1,78 NBR70 black

46810893

$1.49

Rubber pad 17,2x45,2x40 black

50180276

$8.41

COVER D=50

50180487

$44.12

ADJUSTING SCREW REBOUND TRAVEL

50180434S

$28.14

SHOCK ABSORBER FLUID 5 LT

50180751S1

$149.59

MONOSHOCK REP. KIT

00050000035

Unavailable
