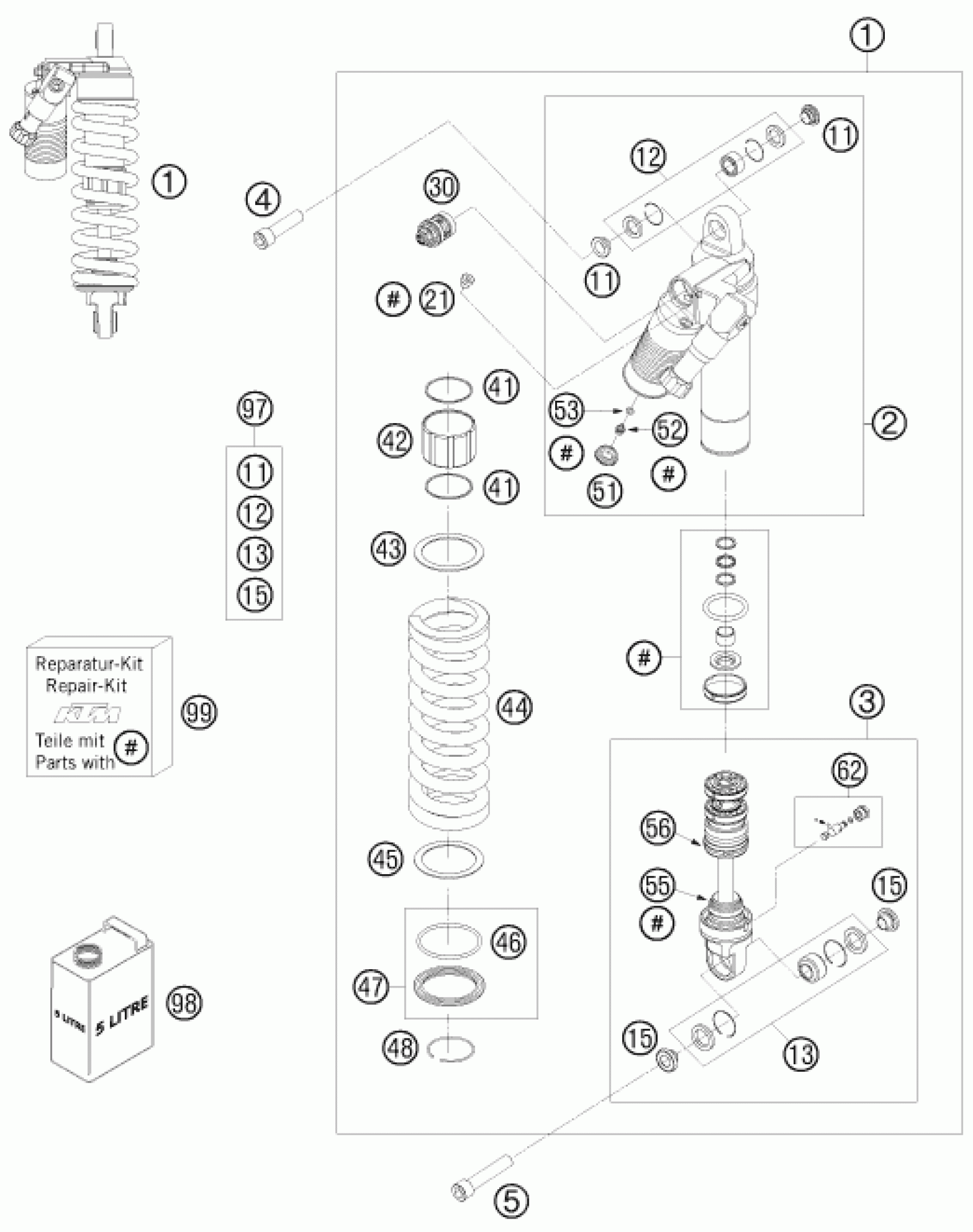

KTM 990 ADVENTURE R 2010 SHOCK ABSORBER Diagram

#

Description
Price

1

MONOSHOCK 990 ADVENTUR R 09

12187E09

Unavailable

2

MONOSHOCK UPPER PART CPL. 07

50180412S2

Unavailable

3

MONOSHOCK LOWER PART CPL. 07

50180358S4

Unavailable

4

SCREW M14X1,5 L=55MM 03

60004016000

Unavailable

5

SCREW M14X1,5 L=73MM 03

60004017000

Unavailable

11

Bearing bush 14x15/18/24,5x10,

50180366

Unavailable

12

Ball joint bearing kit top 12m

R12012

Unavailable

13

REP.KIT BEAR/SEAL LOWER ADV 07

R12013

Unavailable

15

Bearing bush 14x16/21,8/29x14

50180365

Unavailable

21

HS cylinder-head screw R1/8 l8

50180095

Unavailable

30

50180213S4

Unavailable

41

spreader ring 50X1,5

50180133

Unavailable

42

Spring guide 54,15x60x40

50180081

Unavailable

43

Intermediate washer spring 61,

50180114

Unavailable

44

SPRING 130-265 d14,5 OR. CPL.

91210088SA

Unavailable

44

SPRING 140-265 d15 ORANGE CPL.

91210086S

Unavailable

44

SPRING 150-265 d15,5 OR. CL.

91210087SA

Unavailable

45

Interm. ring spring ret. H=3.5

50180402

Unavailable

46

O-ring 66,27x1,78 Viton70

50180352

Unavailable

47

SPRING RET. D=80 W. O-RING 05

50180463S

Unavailable

48

Round-wire snap ring 58,5x2

50180273

Unavailable

51

Rubber cap do not open 22x5,5

46811208

Unavailable

52

HS lock screw M5x6

36120151

Unavailable

53

O-ring 5,28x1,78 NBR70 black

46810893

Unavailable

55

Rubber pad 17,2x45,2x40 black

50180276

Unavailable

56

Cap 50,1x17,5 h6

50180165

Unavailable

62

ADJUSTING SCREW REBOUND TRAVEL

50180434S

Unavailable

98

SHOCK ABSORBER FLUID 5 LT '03

50180342S1

Unavailable

99

REPAIR-KIT GASKET 5018 PDS 03

R12008

Unavailable

97

MONOSHOCK REP. KIT

00050000035

Unavailable
