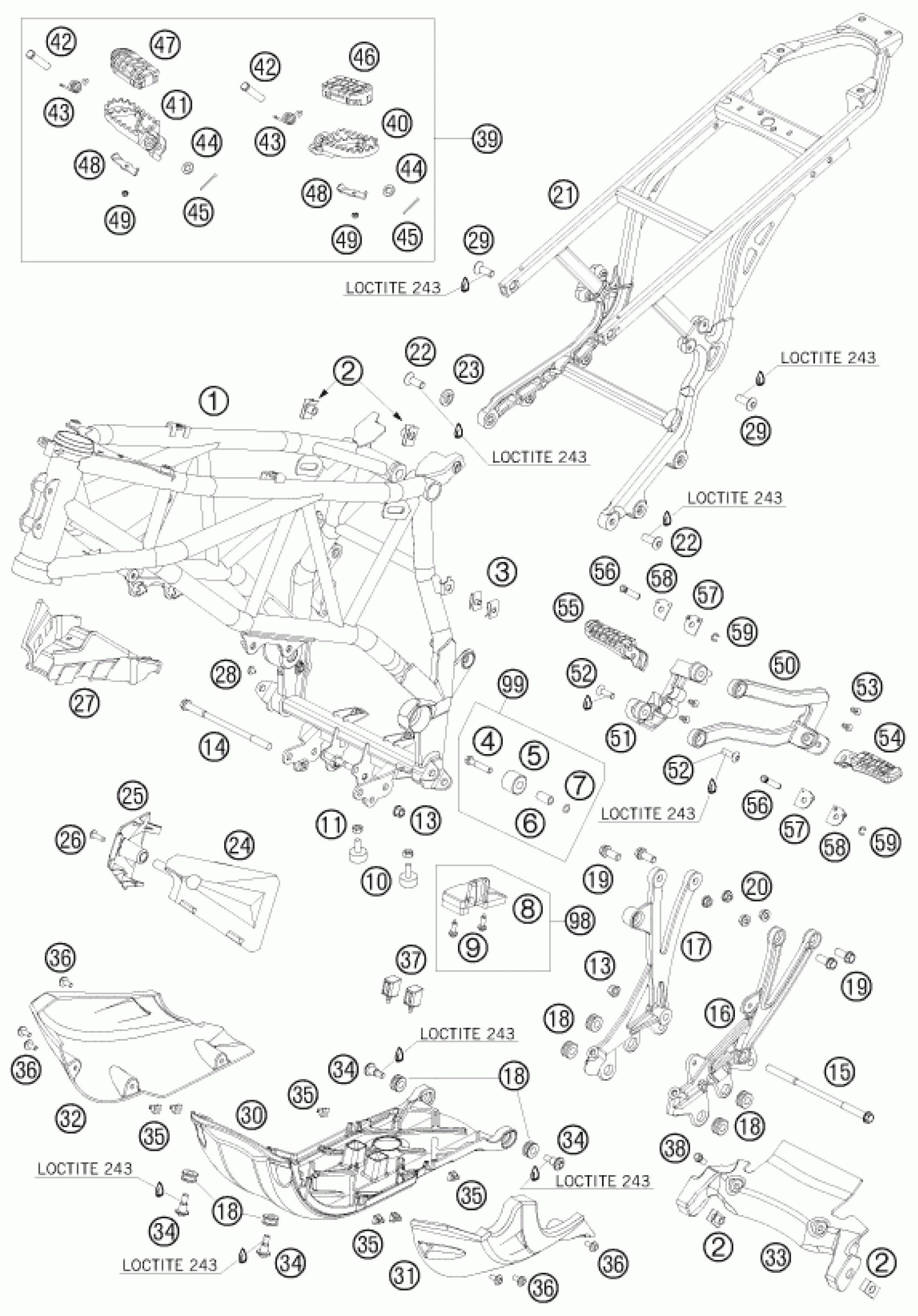

KTM 990 ADVENTURE ORANGE ABS 10 <2010> FRAME Diagram

#

Description
Price

7

LOCK WASHER 8MM

36003014000

$2.05

8

CHAIN SLIDING BLOCK 05

60004076100

$8.78

9

EJOT PT SCREW K60X20 ALU WS=6

0017060204

$3.08

10

BUMP RUBBER M8X25MM

58303070100

$5.88

11

Hexagon nut DIN934 M8

0934080003

$2.05

13

COLLAR NUT M10 WS=13

54630044000

$1.49

14

ENGINE BRAC. SCREW M10X172 03

60003013000

$14.58

15

ENGINE BRAC. SCREW M10X206 03

60003014000

$17.76

16

ENGINE SUPPORT LEFT 07

6000300500001

Unavailable

17

ENGINE SUPPORT RIGHT 07

6000300600001

$159.69

18

RUBBER SLEEVE 03

60003098000

$4.11

19

AH collar screw M10x24 ISA45

0035100249

$3.08

20

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

21

SUB FRAME BLACK 09

6000300200033

$679.84

22

COUNTERSUNK SCREW ISA45 M10X23

0019100239S

$4.11

23

COLLAR BUSHING 10X15X25X4 03

60003001051

$6.07

24

COVER FRAME L/S FRONT 05

62503085000

$6.35

25

COVER FRAME R/S FRONT 05

62503086000

$5.83

26

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

27

SPLASH PROTECTOR FRAME 05

60003087000

$5.22

28

PLUG ZK 8/5 06

60103088000

$1.49

30

UNDERRIDE PROTECTION 10

6000309100092

$113.87

31

UNDERRIDE PROTECTION LEFT 06

60003092100

$12.43

32

UNDERRIDE PROTECTION RIGHT 06

60003093100

$13.08

33

LOWER TANK HOLDER FRONT 10

6000309400092

$127.89

34

COLLAR SCREW M8 03

60003097000

$4.11

35

CAGE NUT M6 SL 4MM 03

60003095000

$3.08

36

HH collar screw M6x15 TX30

0024060156

$3.08

37

VIBRATION DAMPER 03

60003096000

$3.08

38

HH COLLAR SCREW M8X16 TX40

0025080166

$4.11

39

FOOTPEG L/S+R/S CPL. 03

60003040033

$147.07

40

FOOT PEG L/S SILVER 02

59003040250

$43.66

41

FOOT PEG R/S SILVER 02

59003041250

$43.66

42

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

43

FOOTREST SPRING L/S & R/S

54603041000

$5.23

44

washer DIN 125 A 10.5

0125100003

$2.05

45

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

46

FOOTREST RUBBER FRONT L/S 03

60003040010

$22.15

47

FOOTREST RUBBER FRONT R/S 03

60003041010

$22.15

48

CLOSING PANEL FRONT L/S R/S 03

60003044010

$6.07

49

Self locking nut DIN 985 M5

0985050003

$2.05

50

FOOTREST BRACKET REAR L/S 09

6000304800033S

$136.60

51

FOOTREST BRACKET REAR R/S 09

6000304900033S

$136.60

52

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

$3.08

53

PLASTIC CAP SFL10

54403135000

$2.05

54

FOOTREST CPL. L/S REAR 03

60003050000

$61.42

55

Footrest cmpl. r/s rear 03

60003051000

$61.89

56

BOLT FOR FOOTREST REAR 03

60003044000

$8.87

57

ENGAGE PANEL FOOTREST L/S 03

60003152000

$5.23

58

ENGAGE PANEL FOOTREST R/S 03

60003052000

$5.23

59

retaining washer DIN 6799 - 6

0799060003

$1.49

29

COUNTERSUNK SCREW ISA45 M10X28

0019100289S

$5.23

1

FRAME ''FD07'' 990 ADVENTURE 0

6010300110033

$1,065.74

2

RANGE CHANGE METAL NUT M8

54603048000

$4.11

3

clip nut M6

54603048100

$4.11

4

HH COLLAR SCREW M8X40 TX40

0025080406

$4.11

5

CHAIN ROLL 12X29X22,5 '98

58403060000

$6.07

6

BUSH CHAIN ROLL 8X12X23 '98

58403060065

$3.08

98

CHAIN SLIDING KIT BELOW

60004076110

Unavailable

99

CHAIN ROLL KIT 06-13

58403060010

$12.52
