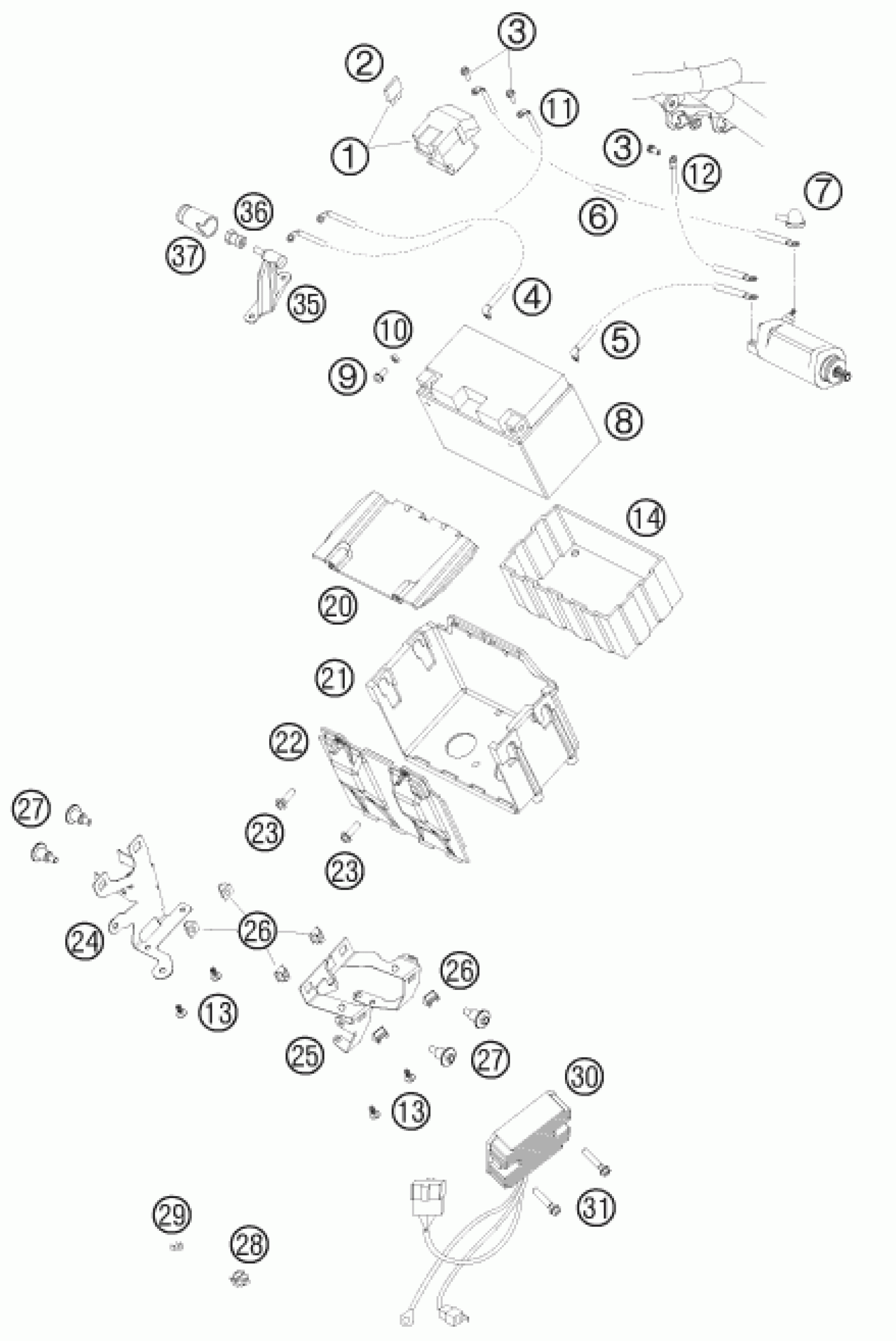

KTM 990 ADVENTURE ORANGE ABS 09 <2009> BATTERY Diagram

#

Description
Price

3

HH collar screw M6x10 TX30

0025060106

Unavailable

4

BATTERY CABLE L=350MM LC8 03

60011059050

Unavailable

1

STARTER RELAY 03

60011058000

Unavailable

2

Plug-in fuse, big 30A

58011109130

Unavailable

5

GROUND CABLE L=470MM 03

60011097000

Unavailable

6

STARTERCABLE L=475MM LC8 03

60011059000

Unavailable

7

Rubber grommet, starter port 0

60040009000

Unavailable

8

BATTERY 12V/11AH 03

60011053000

Unavailable

9

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

10

Hex. nut DIN 934 M6

0934060003

Unavailable

11

BATTERY CABLE 250MM 06

60111059000

Unavailable

12

GROUND CABLE 100MM 06

60111097000

Unavailable

13

SCREW FOR PLASTIC 50X12

0016050121

Unavailable

14

BATTERY COVER 96

58411053050

Unavailable

20

BATTERY BOX TOP PART 03

60011054007

Unavailable

21

BATTERY BOX 03

60011054000

Unavailable

22

BATTERY BOX FRONT PART 03

60011054006

Unavailable

23

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

24

BRACKET STARTER RELAY 06

60111056000

Unavailable

25

BRACKET VOLTAGE REGULATOR 03

60011055000

Unavailable

26

CAGE NUT M6 SL K100-1 1,5MM

60011038000

Unavailable

27

Special screw M6x24 WS=8

60038083000

Unavailable

28

CABLE SUPPORT KHS NR.150-47610

58111076000

Unavailable

29

WIRING HOLDER 16MM

57013072100

Unavailable

30

VOLTAGE REGULATOR

60011034100

Unavailable

31

HH collar screw M6x30 TX30

0025060306

Unavailable

35

POSITIVE POL EXTENSION 06

60111048000

Unavailable

36

HEXAGON NUT M6 SW=13 L=20

60111048020

Unavailable

37

COVER CAP OUTER 06

60111048035

Unavailable
