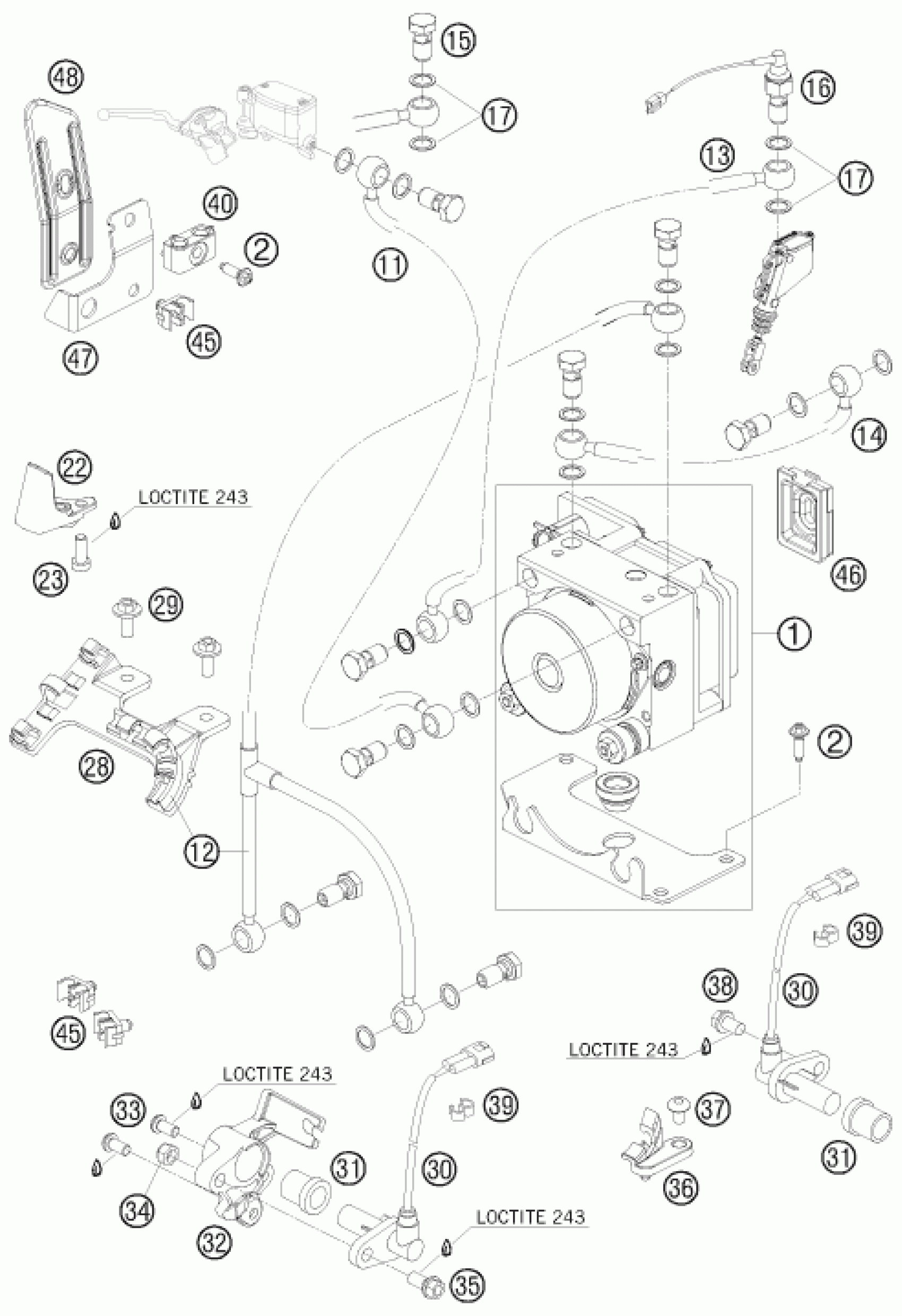

KTM 990 ADVENTURE ORANGE ABS 09 <2009> ABS Diagram

#

Description
Price

1

ABS-MODULE INCL. SUPPORT 08

60142031244

$1,816.11

2

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

11

BRAKE HOSE L=1320MM 06

60142010000

$79.38

12

BRAKE HOSE 1190/715/810MM 06

60142011000

$146.38

13

BRAKE HOSE L=360 08

60142012200

$63.74

14

BRAKE HOSE L=845 08

60142013200

$97.86

15

HOLLOW SCREW M10X1X19

50213025000

$6.54

16

BRAKE LIGHT SWITCH REAR '98

50311051100

$36.92

17

sealing ring DIN 7603 10x14x1

0603100141

$2.05

22

BRAKE HOSE GUIDE TOP 06

60101077000

$4.35

23

AH SCREW DIN6912 M6X16 SL

0012060164

$2.05

28

BRAKE HOSE GUIDE LOWER 06

60101078000

$4.70

29

HH collar screw M6x15 TX30

0024060156

$3.08

30

ABS-SENSOR 06

60142025000

$104.43

31

SLEEVE SENSOR HOLDER ABS

60142024050

$5.32

32

SENSOR HOLDER FRONT 06

60142024000

$8.59

33

INT. TORX OVAL HEAD M 5X10 8.8

0018050103

$1.49

34

Self lock. nut DIN985-M6-A2

0985060003

$2.05

35

HH collar screw M6x16 TX30

0025060166

$3.08

36

CABLE SUPPORT SWING ARM 06

60142026000

$4.11

37

SCREW TORX M5X10 05

58605083010

$2.05

38

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

39

CLIP 5/7 MM 06

60111094000

$3.08

40

SUPPORT FOR BRAKE HOSE 06

60113046000

$5.23

45

Hose bracket 7/7mm

60113026000

$3.08

46

RUBBER SLEEVE 30X40 MM 06

60108017010

Unavailable

47

RETAINING PLATE BRAKE HOSE REA

60113044000

$10.88

48

HEAT PROTECT. BRAKE REAR HI.07

60113043000

$17.07
