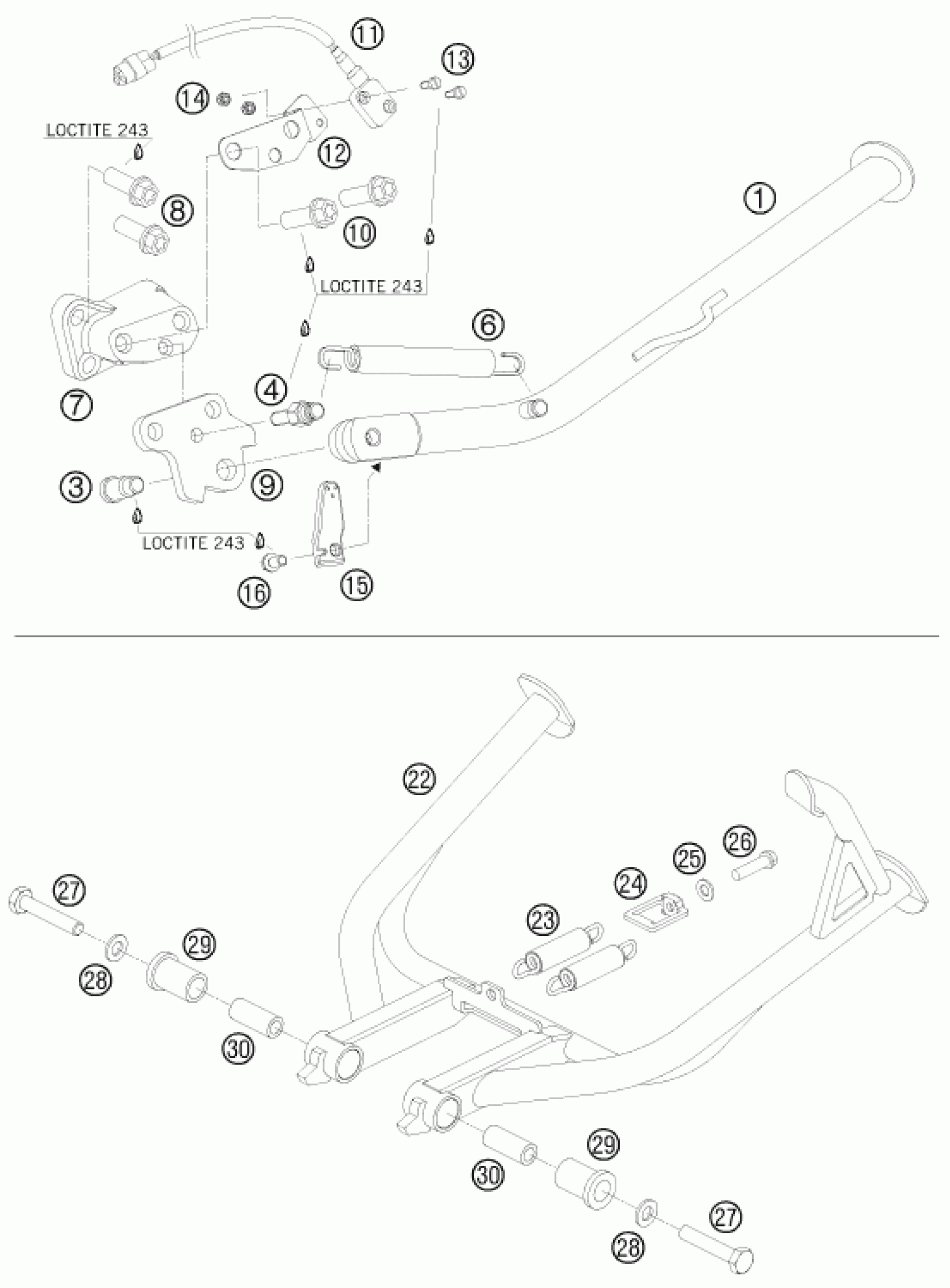

KTM 990 ADVENTURE LIM. EDIT. 2010 SIDE / CENTER STAND Diagram

#

Description
Price

1

SIDE STAND L=302MM 06

6010302310030

$126.22

3

Screw for side stand M10x31.2

62503027200

$6.72

4

SCREW SIDE STAND SPRING 05

61003028001

$9.15

6

SPRING L=116 MM 05

61003024000

$13.83

7

SIDE STAND BRACKET 03

60003026000

$743.04

8

AH collar screw M10x30 ISA45

0035100309S

$3.08

9

SIDE STAND PICKUP 06

60103028000

$23.93

10

AH collar screw M10x24 ISA45

0035100249

$3.08

11

Side stand sensor

61011045000

$59.64

12

SUPPORT F.SIDE STAND SWITCH 06

60103029000

$12.05

13

CYL.HEAD SCREW DIN84A M4x12

0084040123

$1.49

14

SELF LOCKING NUT DIN0985-M 4

0985040003

$1.49

15

MAGNET HOLDER ADV. 06

60103029050

$5.23

16

HH collar screw M6x12 TX30

0025060126

$3.08

22

CENTER STAND L=333MM 05

6000302240030

$221.58

23

SPRING FOR CENTER STAND 03

60003030000

$12.80

24

SPRING TENSIONER 03

60003022115

$33.84

25

washer DIN 125 A -8.4

0125080003

$1.49

26

HH collar screw M8x30

0025080306

$3.08

27

SPECIAL SCREW M10X55 WS=17

56503093000

$4.11

28

washer DIN 125 A 10.5

0125100003

$2.05

29

BEARING BUSH CENTER STAND 03

60003022020

$33.28

30

SPACER 10X16X38 MM 03

60003022021

$25.89
