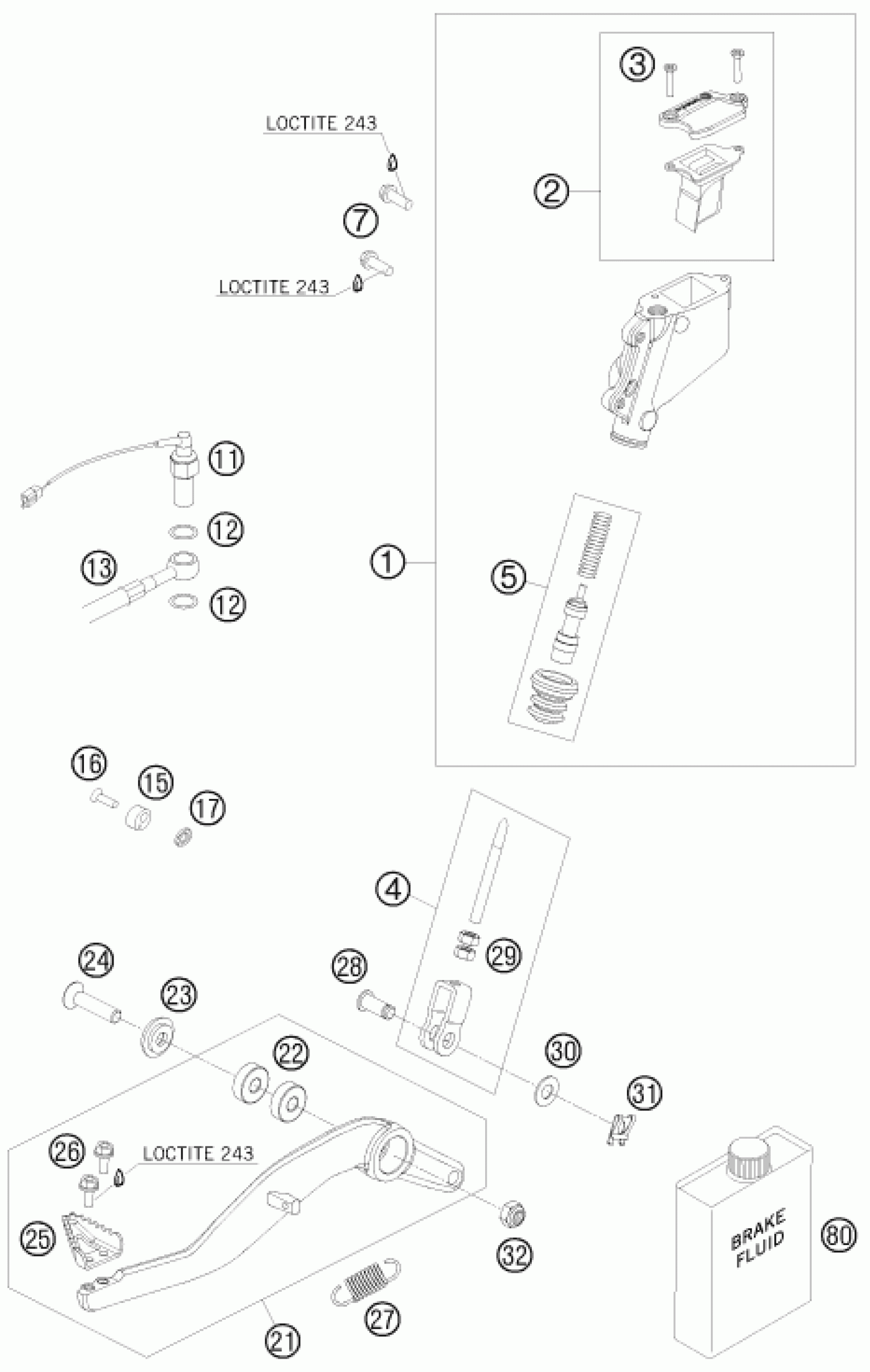

KTM 990 ADVENTURE LIM. EDIT. 2010 REAR BRAKE CONTROL Diagram

#

Description
Price

1

MAIN BRAKE CYLINDER CPL. 07

60013060300

$203.35

2

COVER MAIN BRAKE CYLINDER CPL.

60013059100

$41.04

3

FLAT HEAD SCREW DIN0965-M 4X16

0965040161

$1.49

4

PUSH ROD CPL. 06

63013056044

$23.81

5

REPAIR KIT PISTON 07

60013061100

$53.38

7

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

$2.05

11

BRAKE LIGHT SWITCH REAR '98

50311051100

$36.92

12

sealing ring DIN 7603 10x14x1

0603100141

$2.05

13

BRAKE HOSE L=360 08

60142012200

$63.74

15

BRAKE LEVER STOP LC4 03

58413048000

$5.79

16

Flat head screw DIN7991 M6X20

0991060202

$2.05

17

TOOTH LOCK WASH. DIN6797-A 6,4

0797060003

$1.49

21

FOOT BRAKE LEVER CPL. 07

6001305004401S

$116.77

22

Grooved ball bearing 608 2RS C

0625006087

$21.40

23

SPECIAL WASHER 8X24 ALU H=2,6

62603062000

$6.44

24

COUNTERSUNK SCREW ISA45 M8X35

0019080356

$3.08

25

STEP PLATE FOOT BRAKE LEVER 03

60013051000

$5.60

26

HH collar screw M5x12 TX30

0025050126

$3.08

27

RETURN SPRING FOR BRAKELEVER

54603062000

$6.54

28

BOLT F. LINK FORK 8X20X16,5

60013057000

$4.11

29

Hex. nut DIN 934 M6

0934060003

$1.49

30

washer DIN 125 A -8.4

0125080003

$1.49

31

SECURING CLIP D=8MM 03

60013058000

$2.05

32

SELF LOCKING NUT DIN0985-M 8

0985080003

$2.05

80

Brake fluid DOT5.1 0,25L

00062030000

$12.52
