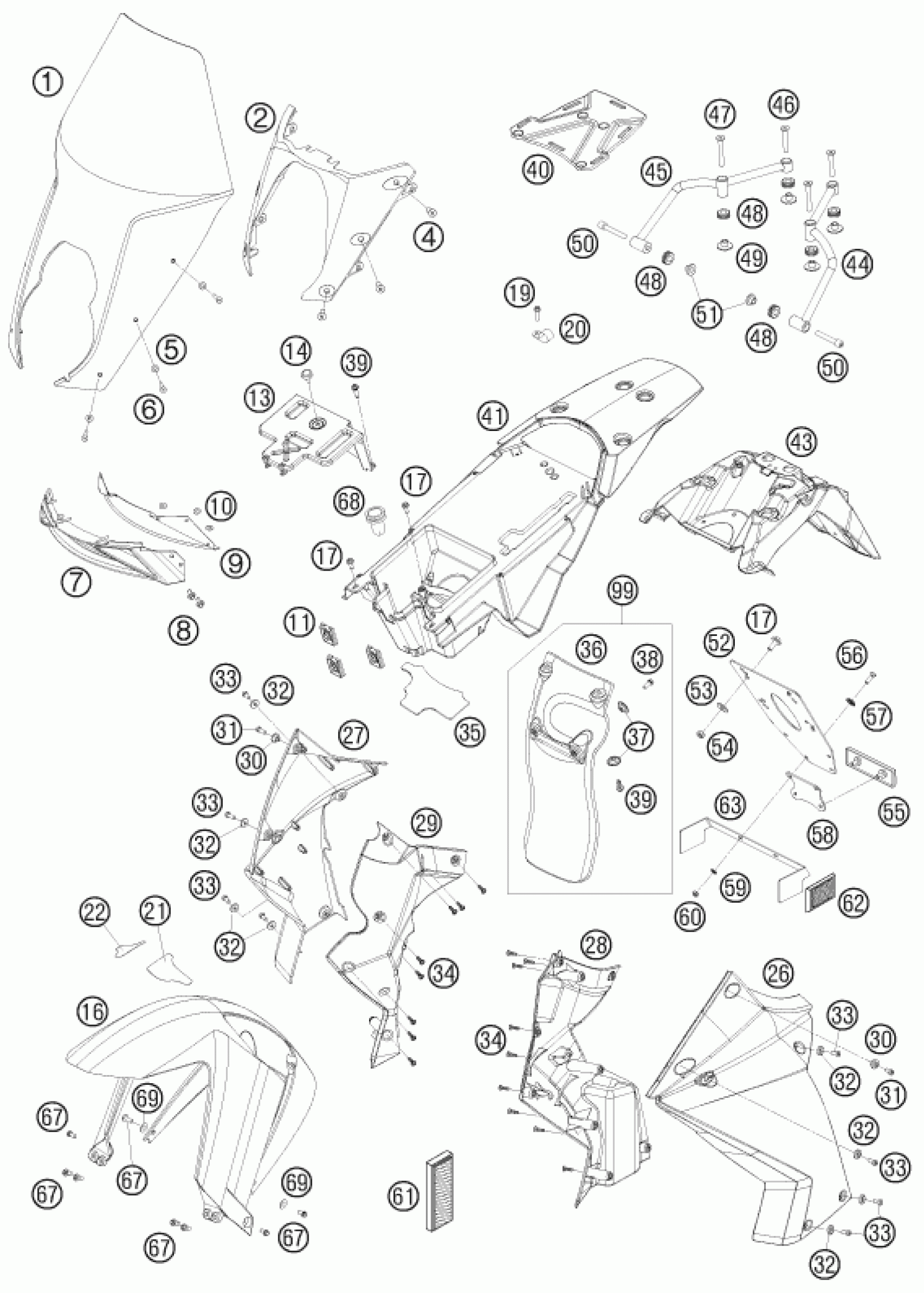

KTM 990 ADVENTURE LIM. EDIT. 2010 MASK, FENDERS Diagram

#

Description
Price

1

WIND SCREEN LARGE

60008008100

Unavailable

2

HEAD LIGHT MASK 07

60008001100

$36.92

4

clip nut M5

69008021080

$3.08

5

SPECIAL WASHER D=12MM 03

60008046000

$4.11

6

COUNTERSUNK SCREW ISA25 M5X20

0019050201

$2.05

7

AIR INTAKE 03

60008011000

$24.02

8

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

9

AIR INTAKE GRILL 03

60008011060

$29.80

10

SPRING NUT 012410 03

60008011050

$1.49

11

RUBBER SLEEVE 30X40 MM 06

60108017010

Unavailable

13

COVER F. STORAGE COMP. REAR 06

60108017000

$7.28

14

Distance rupper airbox 03

60006001021

$2.05

16

FENDER FRONT WHITE 09

6010801000020A

$299.28

17

HH collar screw M6x15 TX30

0024060156

$3.08

19

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

20

PVC-CLAMP 7/16'' HEYCO 3377

57013070000

$1.49

21

PROTECTIVE FILM L/S 06

60108010060

$2.90

22

PROTECTIVE FILM R/S 06

60108010070

$2.90

28

INNER COVER LEFT 07

60008050150

$31.10

29

INNER COVER RIGHT

60008051150

$40.57

26

SIDE COVER L/S WHITE 09

6000805000020A

$311.12

27

SIDE COVER R/S WHITE 09

6000805100020A

$311.12

30

BUSH F. SIDE COVER 03

60008052000

$5.51

31

AH SCREW DIN6912-M 6X16

0984060163

$2.05

32

SPECIAL WASHER D=16,5MM 03

60008045000

$3.08

33

AH SCREW DIN6912 M6X12

0012060123

$2.05

34

EJOT PT screw K50x12

0081050121

$2.05

35

THER.PROT.FOIL REAR FENDER 07

60008013160

$11.06

36

SPLASHBACK 08

60006010100

$13.36

37

BUCKET

72210079000

$3.00

38

HH collar screw M6x16 TX30

0025060166

$3.08

39

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

40

BAGGAGE RACK LC8 07

6001201000001S

$104.34

41

REAR FENDER BLACK 09

6010801310033

$42.35

43

LICENSE NUMBER CARRIER 06

60108015000

$15.84

44

HANDLE L/S 03

60012008000

$61.25

45

HANDLE R/S 03

60012009000

$72.45

46

FLAT HEAD SCREW DIN7991-M 8X50

0991080503

$2.05

47

FLAT HEAD SCREW DIN7991-M 8X65

0991080653

$2.05

48

RUBBER SLEEVE D=12MM

41001052000

$4.11

49

COLLAR BUSHING 8,2X12X28X9 03

60012008003

$7.28

50

AH SCREW DIN912 M8X55

0912080553

$2.05

51

COLLAR BUSHING 8,2X12X20X9 03

60012008002

$4.11

52

license plate mouning plate

60012081200

$8.41

53

Washer DIN9021-A 6.4

0021060003

$2.05

54

Self lock. nut DIN985-M6-A2

0985060003

$2.05

55

REFLECTOR RED

58412080000

$5.23

56

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

$1.49

57

WASHER 6MM

40006006000

$1.49

58

BRACKET FOR REFLECTOR

58412080050

$6.07

59

WASHER DIN0125-A 5,3

0125050003

$1.49

60

Self locking nut DIN 985 M5

0985050003

$2.05

61

SIDE REFLECTOR YELLOW 03

60012080000

$6.44

62

SIDE REFLECTOR RED REAR

16512180100

$7.10

63

BRACKET SIDE REFLECTOR 06

62512081000

$27.95

67

HH collar screw M6x13 TX30

0024060136

$3.08

68

RUBBER GRIMMET SLOTTED

50206020000

$5.23

69

PLASTIC WASHER 03

60007020040

$1.49

99

SPLASH PROTECTOR KIT ADV

60006010110

Unavailable
