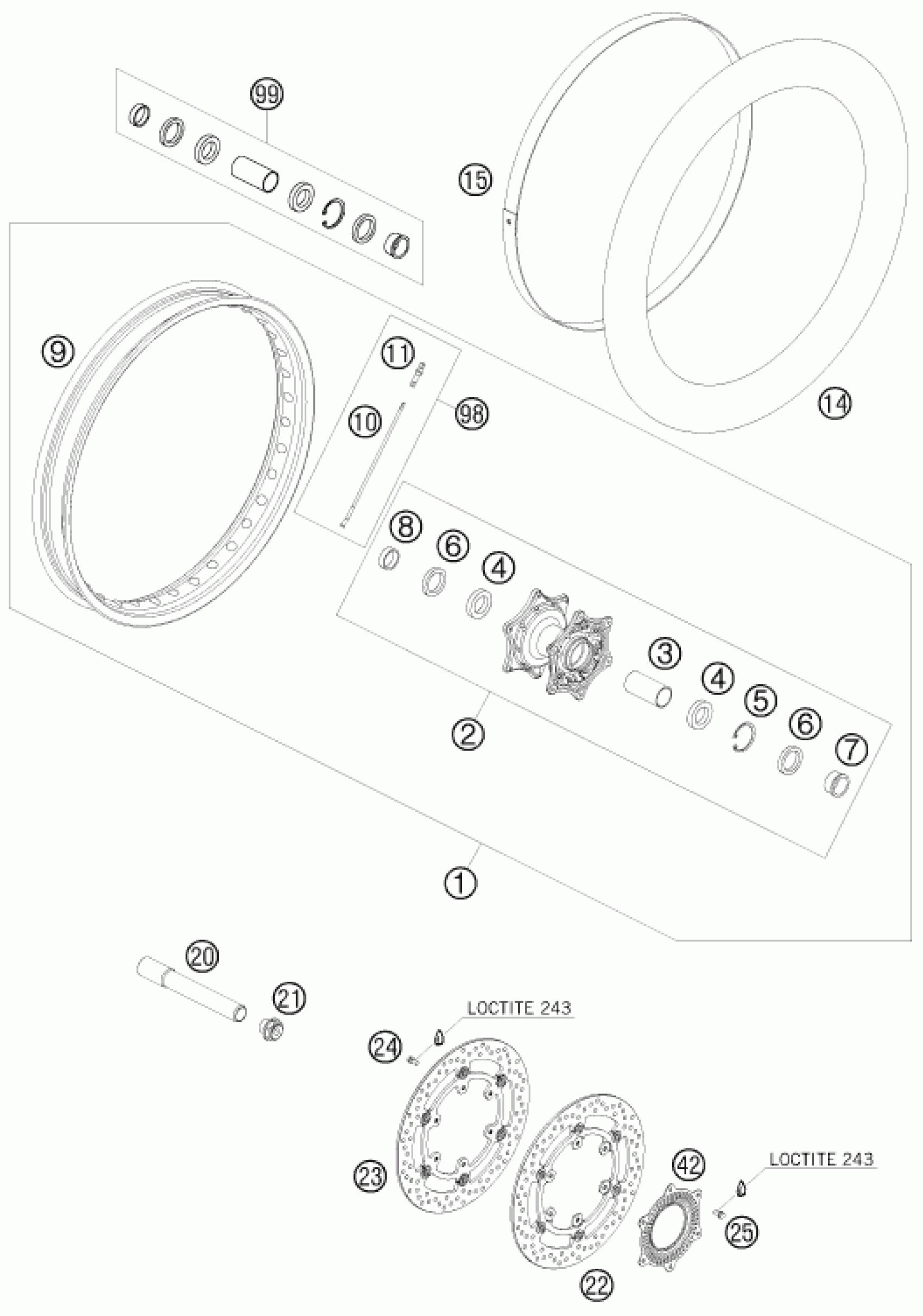

KTM 990 ADVENTURE LIM. EDIT. 2010 FRONT WHEEL Diagram

#

Description
Price

1

FRONT WHEEL CPL. 2,15X21''

6010900114430

$733.27

2

FRONT WHEEL HUB CPL. BLACK

6000901004433

$303.71

3

BEAR. SPACERTUBE FRONT 03

60009014000

$15.89

4

Grooved ball bearing 6906

0625069068

$34.68

5

CIRCLIP DIN0472-47X1,75

0472047175

$3.08

6

Radial shaft seal 35X47X7 TC

0760354771

$8.69

7

SPACER BUSH. FR. WHEEL L/S 03

60009012000

$17.10

8

Spacer bush. fr. whee R/S 03

60009013000

$14.86

9

RIM FRONT 2,15X21'' BLACK 0

6000907010030

$232.15

10

SPOKE M5X230,5 13,5 DEG

60009071000

$5.51

11

SPOKE NIPPLE M5-TA 8X21MM

58309072100

$2.05

14

Hose 21"

50309075000

$39.45

15

RIM TAPE 21'' 28/ 2MM 0

60009073000

$12.15

20

WHEEL SPINDEL FRONT 03

60009081000

$73.48

21

COLLAR SCREW FRONT AXLE 03

60009082000

$16.82

22

BRAKE DISK FRONT 300MM ABS 06

60109060100

$266.22

23

BRAKE DISK FRONT 300MM 06

60109060000

$272.36

24

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

25

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

$2.05

42

SENSOR WHEEL FRONT 06

60142020000

$83.77

98

SPOKE KIT FRONT ''21''

00050000913

Unavailable

99

FRONT WHEEL REP. KIT ADV

60009015010

Unavailable
