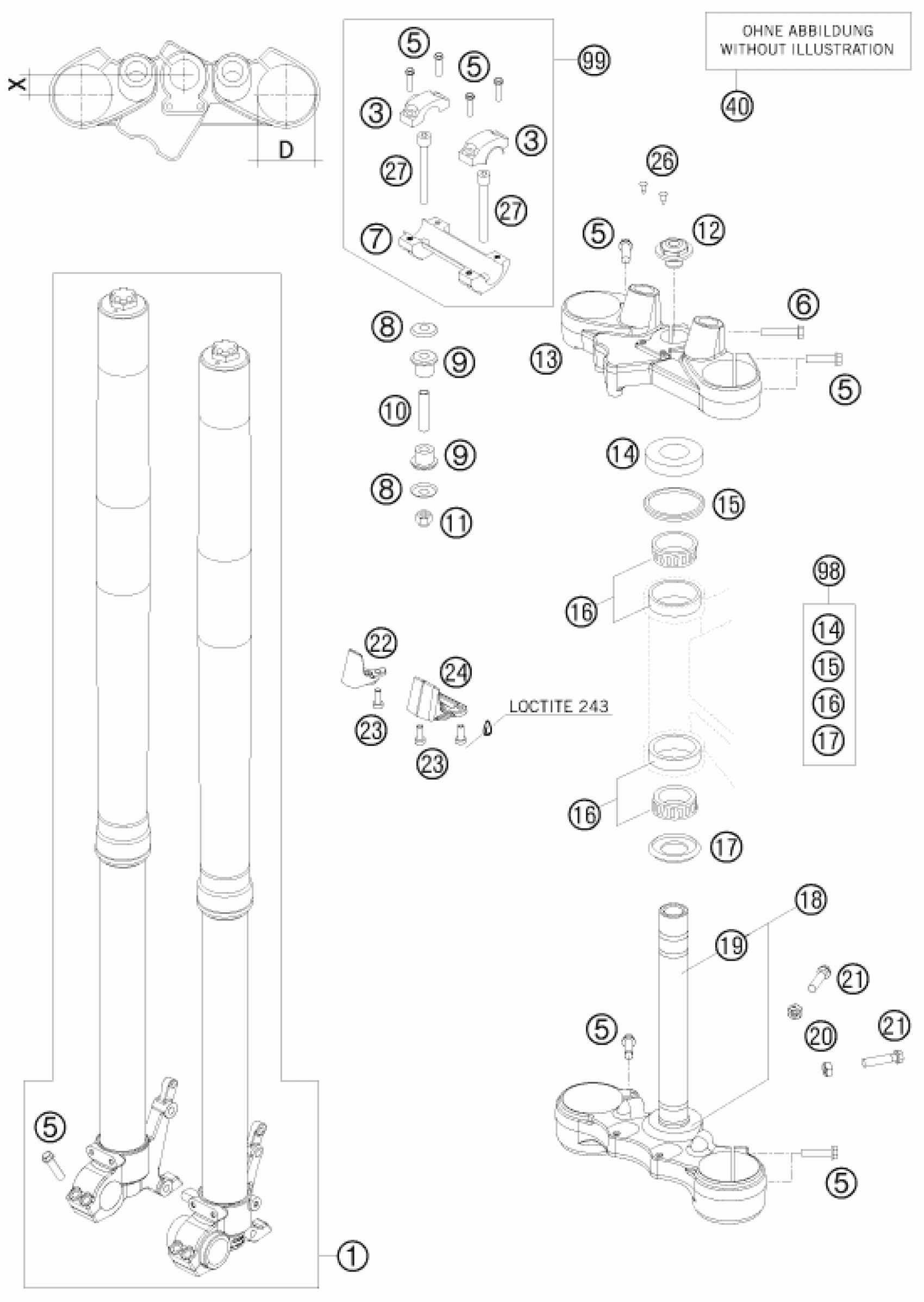

KTM 990 ADVENTURE LIM. EDIT. 2010 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

99

HANDLEBAR SUPPORT KIT

00050000922

Unavailable

15

STEARING HEAD GASKET TOP

54601184000

$7.10

40

GPS BAG BIG

62002903150

Unavailable

16

TAPERED ROLLER BEARING CPL. 06

54201081100

$51.04

17

O-RING SUPPORT W. SEALING LIP

54601084100

$19.35

19

FORK TUBE LC8 ADV 03

60001033000

$65.16

14

STEERING HEAD COVER

54201086000

$8.50

1

FORK KTM 990 ADVENTURE 2009

14187E2401

$2,471.64

5

HH collar screw M8x30

0025080306

$3.08

6

HH collar screw M8x35 TX40

0025080356

$4.11

8

washer 10.5x32x2

56401042000

$4.11

3

HANDLEBAR CLAMP 28MM 07

5900103830001S

$27.76

7

HANDLEBAR SUPPORT 28MM 07

5900103920001S

$147.25

9

rubber bushing

56401040000

$5.23

10

SPACER TUBE 10,2X12X44

56401041100

$5.88

11

SELF LOCK.NUT DIN0982-M10 HIGH

0982100003

$2.05

12

STEER.HEAD SCREW M20x1,5 SW=27

54801036200

$14.58

13

TOP TRIPLE CLAMP X=18MM/D=54MM

6000103401801S

$197.38

18

BOTTOM TRIPLE CLAMP CPL. D=60

6000103201801S

$331.73

20

Hexagon nut DIN934 M8

0934080003

$2.05

21

HH SCREW DIN0933-M 8X25

0933080253

$2.05

22

BRAKE HOSE GUIDE TOP 06

60101077000

$4.35

23

AH SCREW DIN6912 M6X16 SL

0012060164

$2.05

24

CABLE GUIDE 06

60101079000

$4.11

26

PLUG ZK 8/5 06

60103088000

$1.49

27

AH SCREW DIN6912-M10X70

0984100703

$7.00

40

GPS MOUNTING PLATE

62002903000

Unavailable

98

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable
