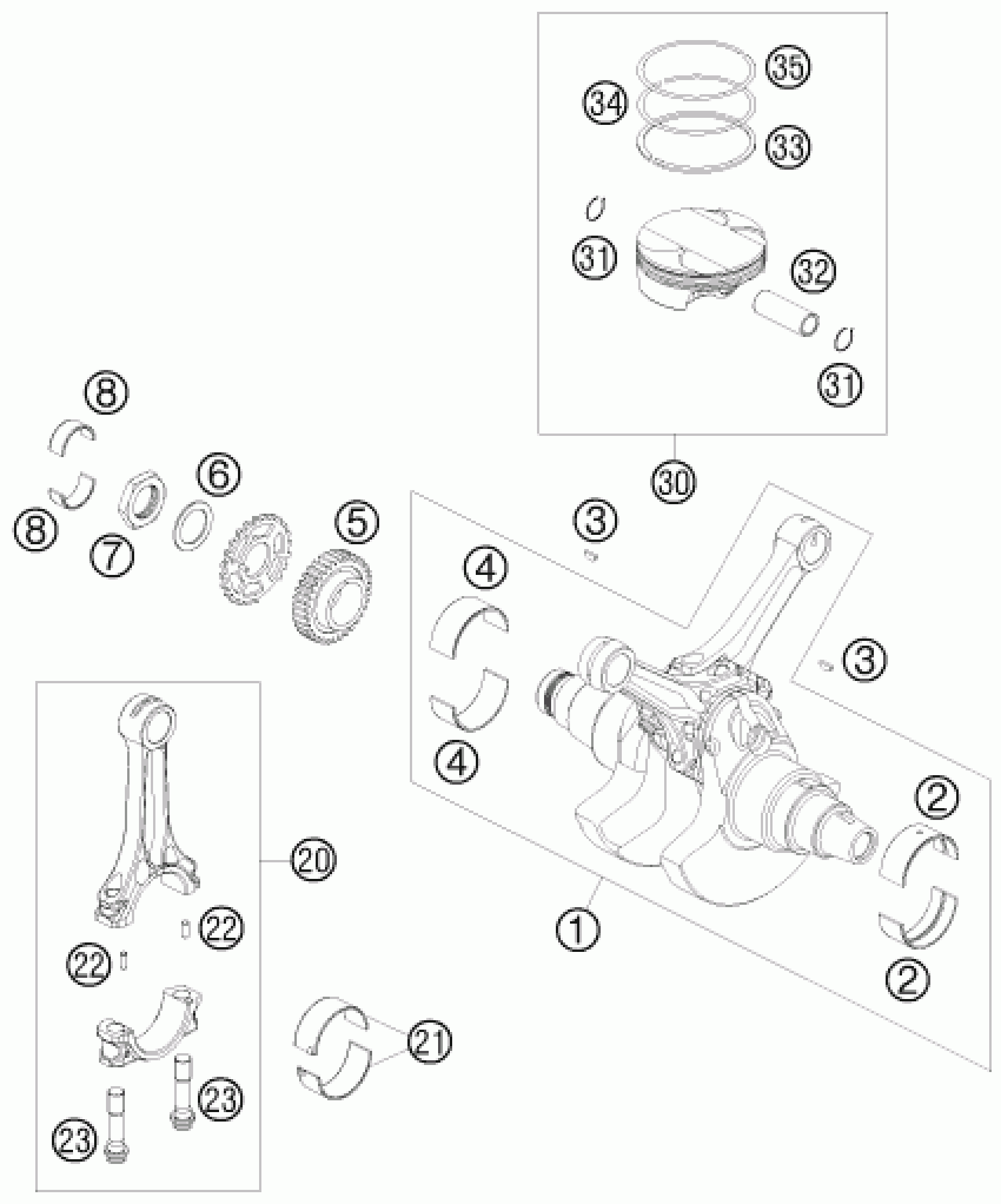

KTM 990 ADVENTURE LIM. EDIT. 2010 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

CRANKSHAFT CPL. M611

61130018100

$1,193.33

2

SPLIT BEAR.BUSH SIZE 1 RED 03

60030082000 1

Unavailable

2

SPLIT BEAR.BUSH SIZE 2 BLUE 03

60030082000 2

Unavailable

2

SPLIT BEAR.BUSH SIZE 3 YELL.03

60030082000 3

Unavailable

3

woodruff key DIN 6888 4x5x13

0888040050

$4.11

4

SPLIT BEAR.BUSH SIZE 1 RED 03

60030182000 1

Unavailable

4

SPLIT BEAR.BUSH SIZE 2 BLUE 03

60030182000 2

Unavailable

4

SPLIT BEAR.BUSH SIZE 3 YELL.03

60030182000 3

Unavailable

5

PRIMARY PINION 35 T 03

60032023035

$137.25

6

WASHER 33,2X46X2 03

60032009040

$3.08

7

HH-NUT M33X1,5 L/S WS46 03

60032009050

$15.89

8

BUSHING BOWL 28X32X13 03

60030026010

$14.02

20

CONNECTING ROD CPL.

61130013000

$302.05

21

SPLIT BEAR. BUSH RED

612300151101

Unavailable

21

SPLIT BEAR. BUSH BLUE

612300151102

Unavailable

21

SPLIT BEAR. BUSH YELLOW

612300151103

Unavailable

22

CYLINDER PIN 03

60030015061

$1.73

23

CONNECTING ROD SCREW MJ10X1

61230015100

$18.50

30

PISTON CPL. D=101 08

61130007100 I

Unavailable

30

PISTON CPL. D=101 08

61130007100 II

Unavailable

31

CIRCLIP

77630074000

$10.56

32

PISTON PIN D=20 08

61230033000

$47.58

33

OIL SCRAPER RING D=101MM

61030032000

$23.18

34

TAP.COMPR.PISTON RING 101X1,25

58330932100

$26.45

35

PISTON RING ''L'' D=101 H=1,25

61030030000

$44.96
