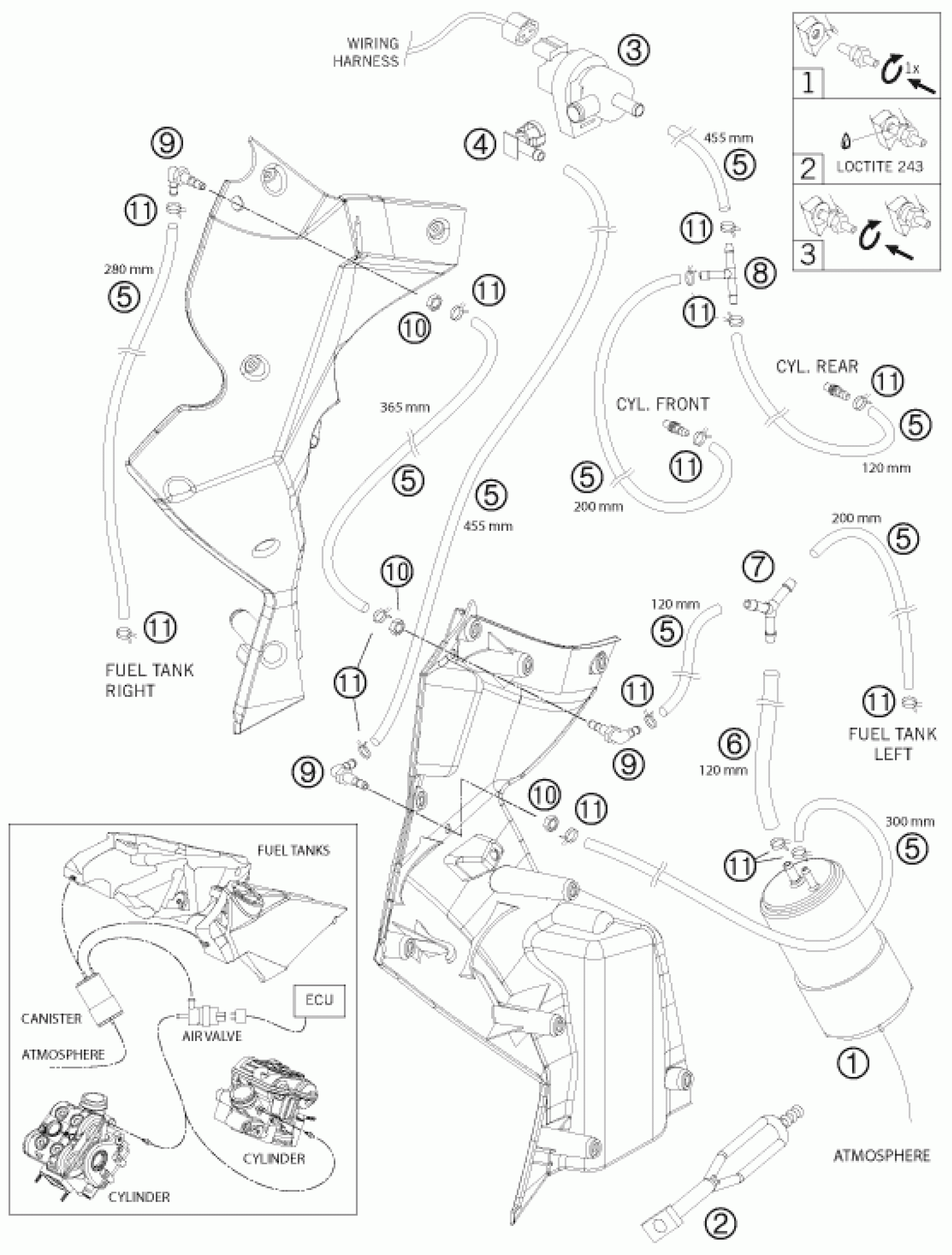

KTM 990 ADVENTURE DAKAR EDITION 11 <2011> EVAPORATIVE CANISTER Diagram

#

Description

Price

1

EVAP.CANISTER FILTER TYPE AK47

58715001000

$80.96

2

RUBBER L=145MM

50303018000

$6.44

3

VALVE FOR CARBON CANISTER 07

61115015000

$63.95

4

FITTING PIECE NQV2 NW7 90°

61115016000

$12.71

5

HOSE EPA D=6/10 L=2000MM

78015019000

$62.64

6

HOSE 8X12 FPM 120MM

60015219120

$5.64

7

Y-CONNECTING PIECE YS 6-8-6 04

60015025000

$5.30

8

T-connector TS-6 03

60015022000

$5.98

9

FITTING PIPE CC

60007024100

$2.61

10

HEX NUT ISO4035 BRASS LOW M8

0936080002

Unavailable

11

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08
