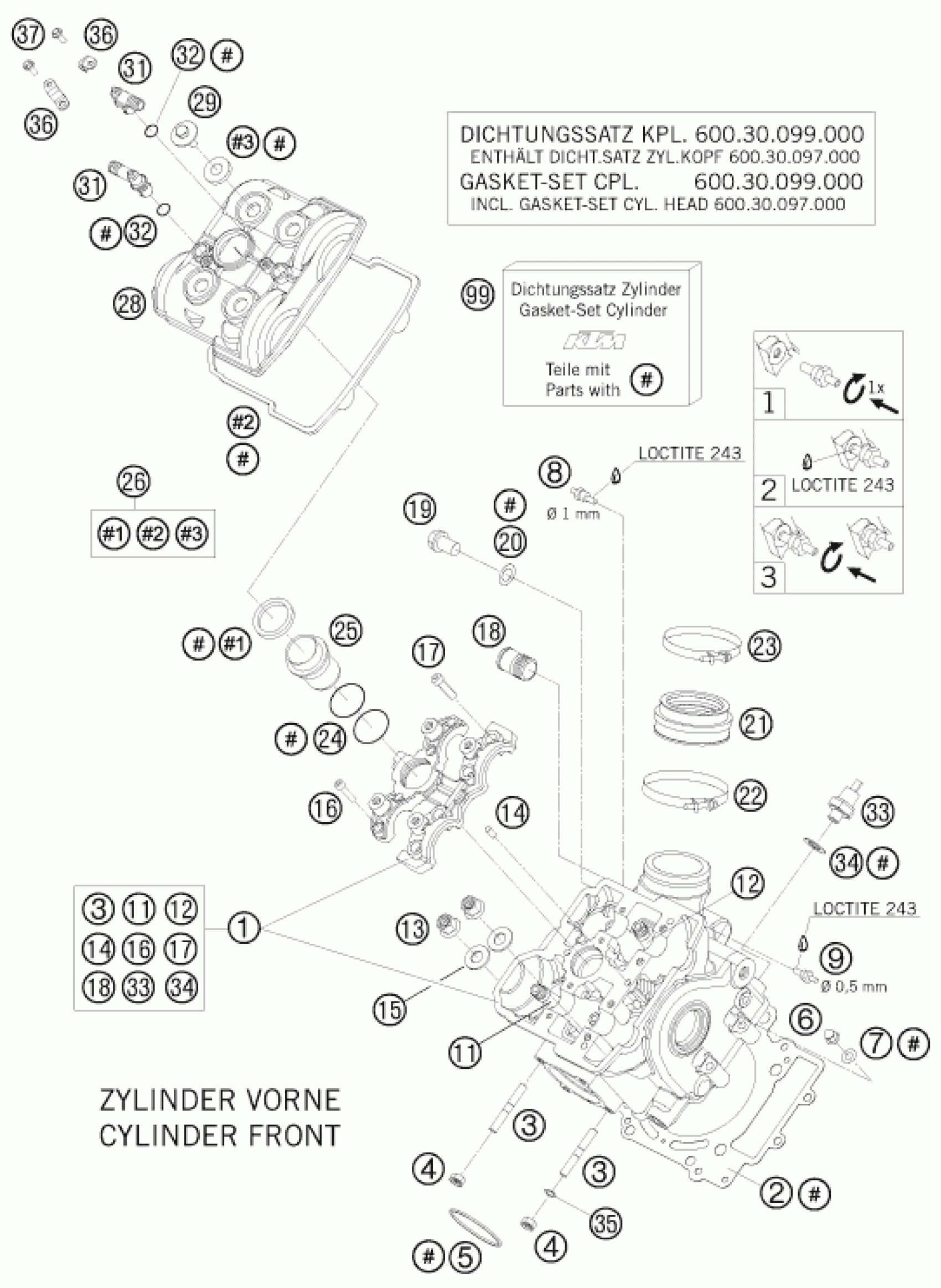

KTM 990 ADVENTURE BLACK ABS 2008 CYLINDER HEAD FRONT Diagram

#

Description
Price

1

CYLINDER HEAD CPL. FRONT

60136020044

$620.38

2

CYLINDER HEAD GASKET 0,5 101MM

60030036000

$53.57

3

STUD M 8X16 10.9

0835080165

$3.08

4

self-locking nut M8 Cu

51010086100

$3.08

5

Exhaust gasket 05

61005005000

$10.00

6

CAP NUT M6 STAINLESS STEEL

61230045000

$2.05

7

WASHER DIN0125-A 6,4

0125060003

$1.49

8

VACUUM CONECTION 2006

61036023100

$10.46

9

VACUUM CONECTION M6/0,5MM

60036023100

$28.23

11

VALVE GIUDE OUTLET '05

60036026100

$29.07

12

VALVE GIUDE OUTLET '05

60036025100

$11.40

13

hex collar nut M10 WS13

60036078200

$3.08

14

needle roller DIN 5402 5x9.8

0402050980

$1.49

15

SHIM 10,2X19X1,5MM 05

60036078050

$3.08

16

AH SCREW DIN0912-M 6X25 10.9

0912060255

$1.49

17

AH SCREW DIN7984-M 8X30 10.9

0984080305

$1.49

18

SCREW IN NOZZLE M20X1,5

58030010200

$8.87

19

threaded plug DIN 908 M12x1.5

0908120153

$4.11

20

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

21

RUBBERSLEEVE INTAKE FLANGE 05

61036044000

$34.31

22

HOSE CLAMP GEMI 66MM 05

61036048000

$9.53

23

Hose clamp GEMI 63mm 05

61036047000

$7.56

24

O-RING 29,87X1,78 VITON

0770298178

$2.05

25

INSERT SPARK-PLUG SHAFT LC8 03

60036075000

$21.03

26

VALVE COVER GASKET SET FR+RR

60036099000

$32.44

28

VALVE COVER FRONT 03

60036052000

$53.36

29

collar screw M 6 WS=10 03

60036052020

$3.08

31

ANGLE CONNECTOR LC8 03

60038082000

$2.05

32

O-RING 8X2 SILICONE

0770080020

$1.49

33

OIL-PRESSURE SWITCH LC8 04

60038091100

$20.66

34

sealing ring DIN 7603 10x14x1

0603100141

$2.05

35

SPACER BUSH. 8,5X15X7,5 05

61005009000

$5.23

36

ANGLE CONNECTOR BRACKET PANEL

60038082050

$6.07

37

SPECIAL SCREW M 5,0X10

0009050103

$2.05

99

GASKET SET CYL. HEAD KPL. 03

60030097000

$283.20
