WIRING HARNESS

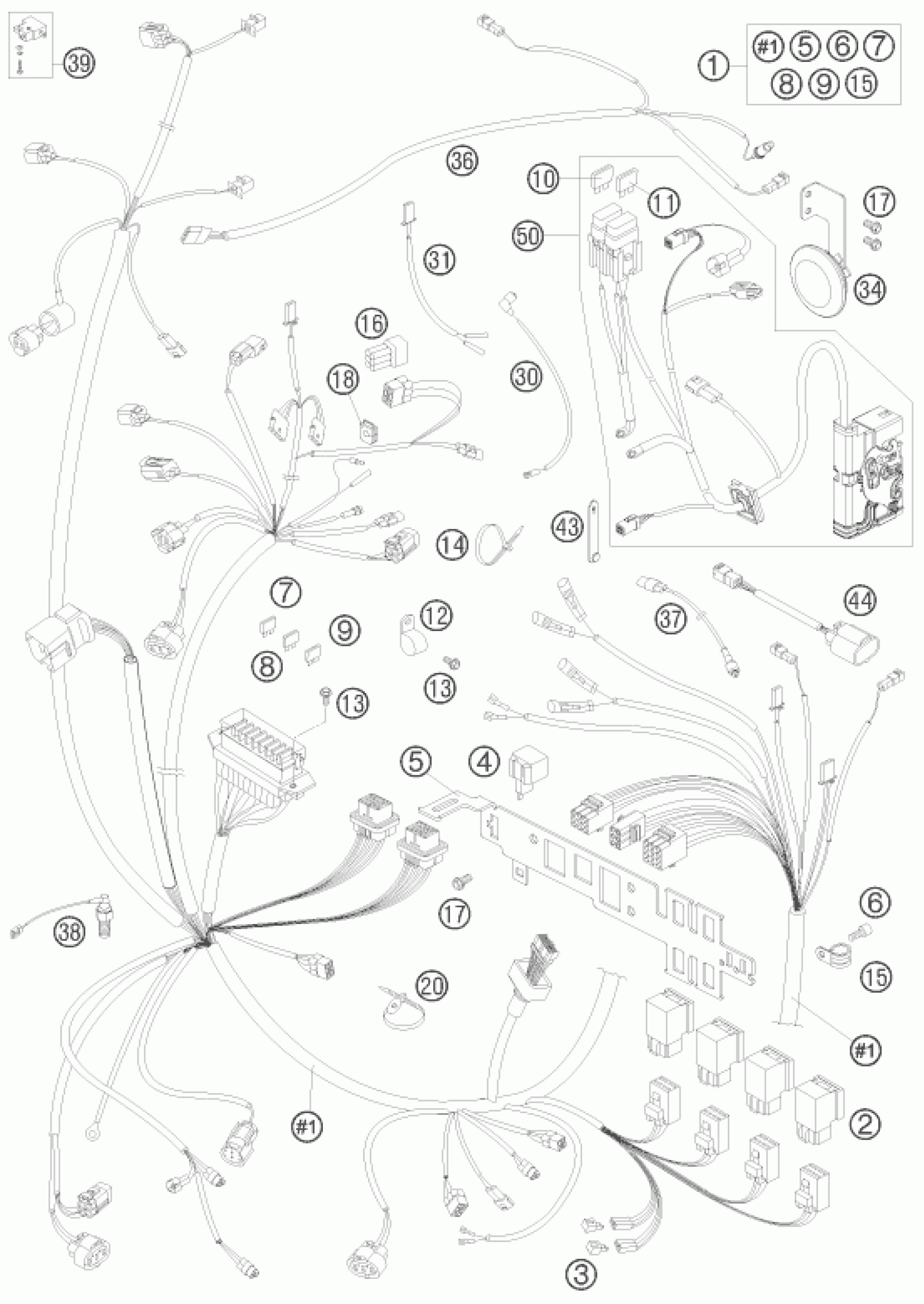

KTM 990 ADVENTURE BLACK ABS 2008 WIRING HARNESS Diagram
#
Description
Price
1
MAIN CABLE HARNESS 990 ADV07
60111075200
$802.22
2
RELAY CM1A-R-12V-H80 07
61111057000
$16.82
3
DIODE S3H-15 97
58411096100
$9.81
4
FLASHER UNIT 97
44611207200
$49.83
5
BRACKET FOR PLUGS 06
60111083000
$21.86
6
AH SCREW DIN0912-M 5X12
0912050123
$2.05
7
FUSE 5 A 2003
58011109105
Unavailable
8
Plug-in fuse, big 10A
58011109110
Unavailable
9
FUSE 15 A
58011109115
Unavailable
10
FUSE 25 A
58011109125
Unavailable
11
FUSE 40 A
58011109140
Unavailable
12
PVC CLAMP 17,4MM HEYCO 3381
57013070400
Unavailable
13
HH collar screw M5x12 TX30
0025050126
$3.08
14
CABLE TIE 100/2,5MM BLACK
44011076100
Unavailable
14
Cable tie 200/4.6mm black
44011076200
Unavailable
14
CABLE TIE 300/4,8MM BLACK
44011076305
Unavailable
15
CLAMP RSGU 15/12
49007439000
$5.23
16
SPARE CONNECTOR BH 6-PINS
000700000BH
$22.15
17
HH collar screw M6x10 TX30
0025060106
$3.08
18
RUBBER SLEEVE 22X18 MM 06
60108017015
Unavailable
20
CABLE TIE WITH PLUG 03
60011193000
$1.73
30
OIL-PRESSURE SWITCH CABLE 03
60011092000
$4.11
31
FLASHER CABLE FRONT 03
60011025000
$5.88
34
DC HORN 12V 06
60011060100
$29.54
36
WIRING HARNESS REAR 06
60111076000
$22.71
37
CLUTCH SWITCH 03
58411049100
$54.32
38
BRAKE LIGHT SWITCH REAR '98
50311051100
$36.92
39
BRAKE LIGHT SW. FRONT CPL. 03
60011050000
$45.62
43
RUBBER CABLE TIE 45MM 03
60011093045
Unavailable
43
RUBBER CABLE TIE 60MM 03
60011093060
Unavailable
43
RUBBER CABLE TIE 75MM 03
60011093075
Unavailable
44
STARTER INTERLOCK
61111020000
$97.89
50
WIRING HARNESS ABS 06
60111079000
$268.43
