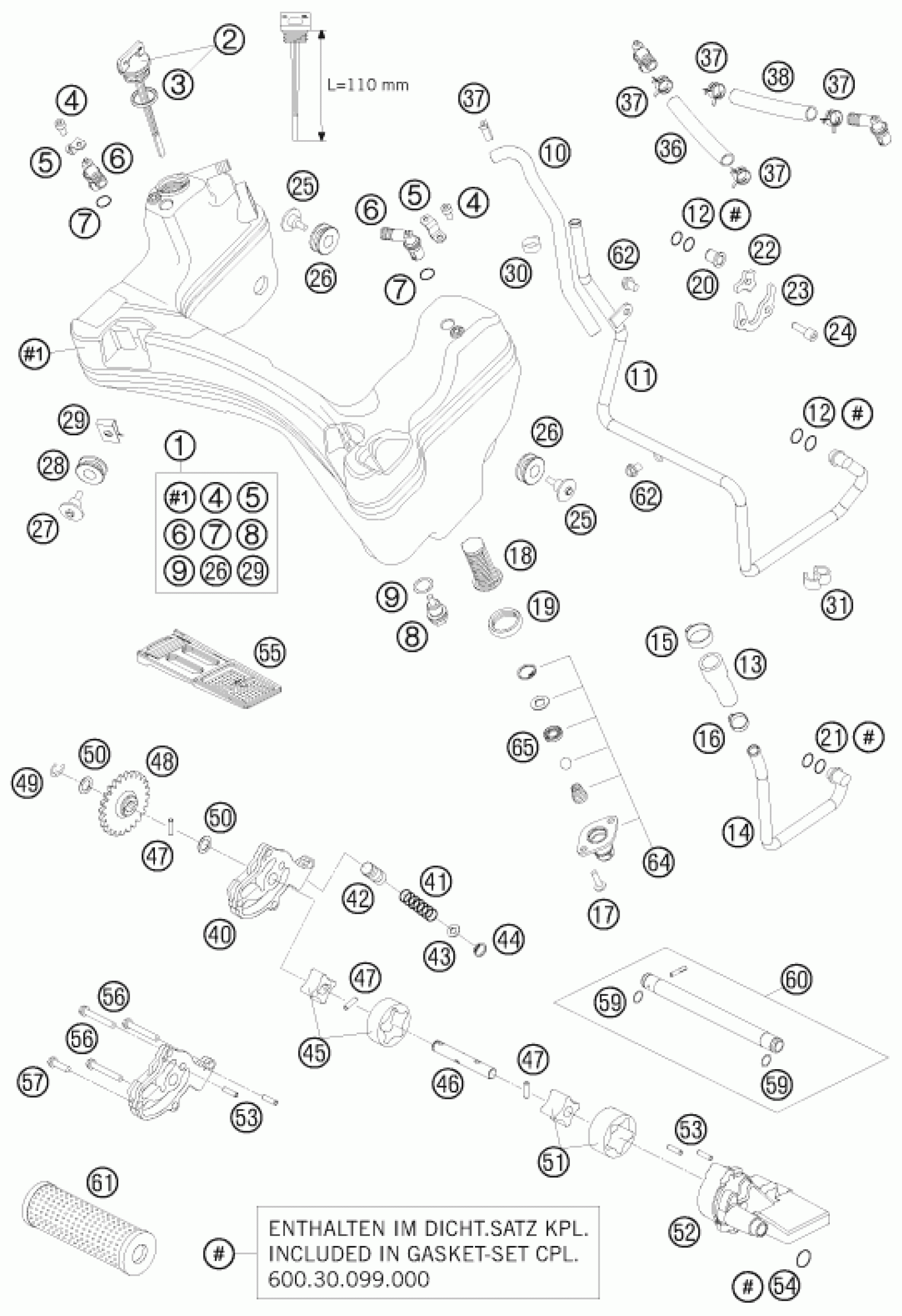

KTM 990 ADVENTURE BLACK ABS 2008 LUBRICATING SYSTEM Diagram

#

Description
Price

15

VARIABLE ONE-EAR CLAMP 25,6MM

00050256706

Unavailable

16

VARIABLE ONE-EAR CLAMP 19,8MM

00050198706

Unavailable

17

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

18

OIL SCREEN FINISHED 03

60038017000

Unavailable

19

GASKET FOR OIL FILTER HNBR 03

60038018000

Unavailable

20

PLUG 10MM LC8 03

60038024000

Unavailable

21

O-RING 11X2 VITON

0770110021

Unavailable

3

O-RING 19,00X3,00 NBR

0770191015

Unavailable

4

AH SCREW DIN0912-M 5X10

0912050103

Unavailable

5

ANGLE CONNECTOR BRACKET PANEL

60038082050

Unavailable

6

ANGLE CONNECTOR LC8 03

60038082000

Unavailable

7

O-RING 8X2 SILICONE

0770080020

Unavailable

8

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

9

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

10

PREFORMED HOSE D9X3,5

60038061203

Unavailable

11

OIL PIPE ''B''

60038061044

Unavailable

12

O-RING 9X2 VITON

0770090021

Unavailable

13

PRE-FORMED HOSE 10X3,5

60038034100

Unavailable

14

OIL PIPE ''A''

60038060044

Unavailable

22

RETAINING PLATE 2 LC8 03

60038037000

Unavailable

23

RETAINING PLATE 1 LC8 03

60038036000

Unavailable

24

AH SCREW DIN0912-M 6X20

0912060203

Unavailable

25

Special screw M6x24 WS=8

60038083000

Unavailable

26

EXHAUST BRACKET RUBBER BLACK

54605068000

Unavailable

27

SPECIAL SCREW M6X21 WS=8

60035001000

Unavailable

28

RUBBER SLEEVE D=12MM

41001052000

Unavailable

29

clip nut M6

54603048100

Unavailable

30

VARIABLE ONE-EAR CLAMP 18,5MM

00050185706

Unavailable

31

DISTANCE HOLDER 10/10 BLACK

60038039000

Unavailable

36

OIL TANK BREATHING HOSE R/S

60038059130

Unavailable

37

CLAMP STD DN16

00049160121

Unavailable

38

OIL TANK BREATHING HOSE L/S

60038059083

Unavailable

40

PRESSURE PUMP CASE 03

60038010000

Unavailable

41

CONTROL SPRING LC8 3,5 BAR

60038026000

Unavailable

42

CONTROL PISTON LC8 03

60038028000

Unavailable

43

WASHER 6X12X1 HRC 40-45

0988060121

Unavailable

44

CIRCLIP DIN0472 J12

0472012010

Unavailable

45

ROTOR-SET PRESSURE PUMP 03

60038011000

Unavailable

46

OIL PUMP SHAFT 03

60038002000

Unavailable

47

needle roller NRB 4x15.8 G2

0402041580

Unavailable

48

OIL PUMP GEAR 24-T

60038001124

Unavailable

49

retaining washer DIN 6799 - 8

0799080000

Unavailable

50

washer 10x16x0.5

60038007010

Unavailable

51

ROTOR-SET 19MM 03

60038009000

Unavailable

52

SUCTION PUMP CASE 03

60038008000

Unavailable

53

Needle roll.DIN5402 NRB 4X9.8

0402040980

Unavailable

54

O-RING 13,3X2,4 VITON

0770133024

Unavailable

55

OIL SCREEN 03

60038016000

Unavailable

56

HH COLLAR SCREW M 6X40 WS=8

0015060403

Unavailable

57

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

59

o-ring 10.00x1.00 NBR70

0770010010

Unavailable

60

OIL INJECTION TUBE GEAR 05

60030065100

Unavailable

61

OIL FILTER 03

60038015000

Unavailable

62

HH COLLAR SCREW M 6X10 WS=8

0015060103

Unavailable

64

OIL TANK VALVE CPL.

60038060102

Unavailable

65

SHAFT SEAL R.10X18X4 B-VITON

0760101842

Unavailable

1

OIL TANK CPL.

60038081133

Unavailable

2

OIL DIPSTICK CPL. W. O-RING 05

60030020100

Unavailable
