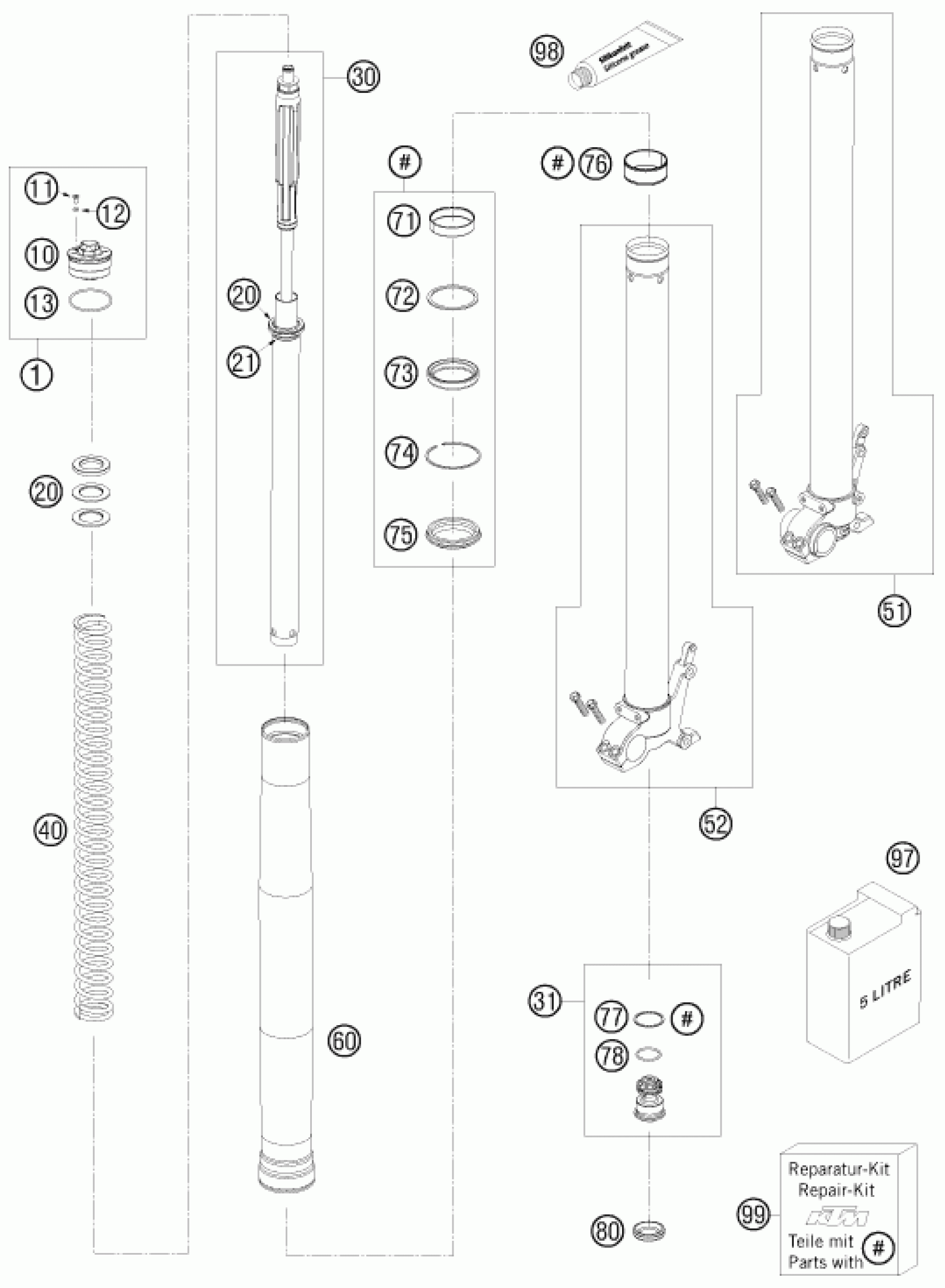

KTM 990 ADVENTURE BLACK ABS 2008 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

1

PRE-LOAD ADJ. CPL. M51X1,5 05

48600431S

$127.99

10

Screw cap M51x1,5

48600431

$127.99

11

Cross countersunk head screw M

48600481

$2.05

12

O-ring 3x1,5 NBR70

48600046

$1.49

13

O-ring 45x2 NBR70 siliconized

46810340

$1.49

20

Preload bush 26,5x42x5

48600037

$4.11

20

Preload bush 42x26,5x2,5

48600036

$2.05

20

Preload bush 26,5x42x1,5

48600053

$4.11

21

Spring retainer 33,5x43x3

48600021

$16.73

30

CARTRIDGE CPL. ADV ABS 07

48600140S

$325.06

31

TAP COMPRESSION CPL.

48600586S2

$53.01

40

Spring 4,8N/MM SET D=5.25MM

91410040S

$133.48

51

AXLE CLAMP LEFT ADV. CPL. 07

48600499S1

$210.04

99

REPAIR-KIT EXC FRONT FORK06/07

R14013

$106.21

52

AXLE CLAMP RIGHT ADV. CPL. 07

48600500S1

$244.29

60

Fork outer tube 49,127x610 dt5

48600422E

$363.56

71

DU-BUSH D48XD52X12DDL02

48600429

$12.05

72

Supportwasher 50x57,6x1,5

48600013

$3.08

73

Shaft seal SKF 48x57,8x9,5 bla

48600399

$13.64

74

Snap ring SB58x1,5 acc drawing

48600070

$2.05

75

DUST CAP D=48 58,4X11,8

48600400

$12.80

76

DU-BUSH D47XD49X20DDL02

48600428

$12.05

77

Copper disc 29,5x33,5x1

48600004

$4.11

78

O-ring 24x2 NBR70

35480320

$1.49

80

Rubber cap 35x10 NBR80

48600141

$4.11

97

FORK OIL SAE5 5L 2005

48600401S1

$149.59

98

SILICONE GREASE F. DUST STRI

T511

$34.59
