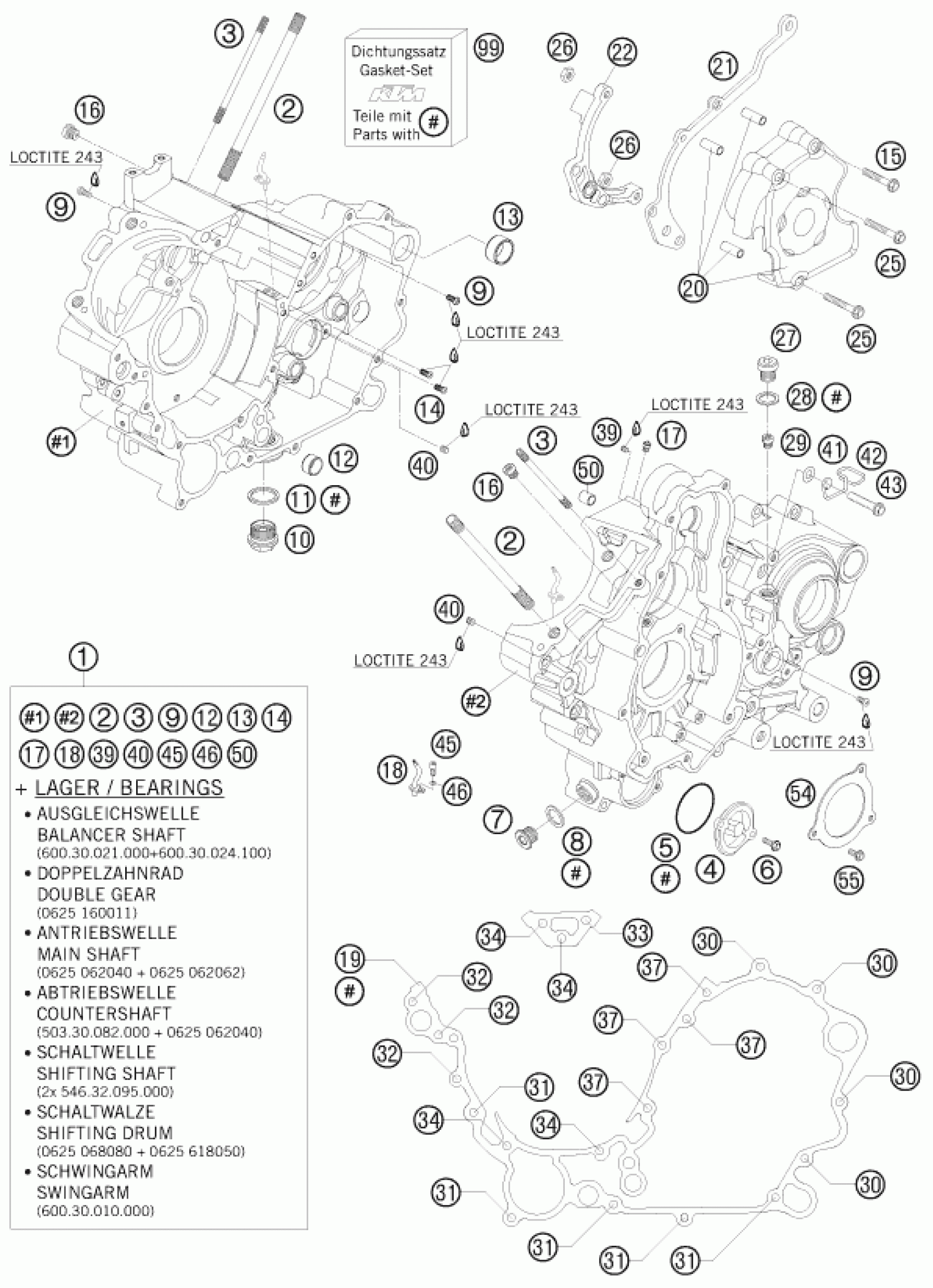

KTM 990 ADVENTURE BLACK ABS 2008 ENGINE CASE Diagram

#

Description
Price

17

oil jet 70 M5

60030063070

$8.59

40

THREAD PIN DIN0551-M 6X 5

0551060050

Unavailable

41

WASHER DIN0125-A 6,4

0125060003

$1.49

42

CABLE SUPPORT 03

60011094000

$5.23

43

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

45

AH.SCREW DIN0912-M 4X10

0912040103

$2.05

46

O-RING 3,5X2,00 NBR

0770035020

$1.49

50

DOWEL 9,8 X 7 X 10

49030090000

$2.05

12

DOWEL 17 X 14 X 9,5

58330023000

$5.51

13

DOWEL 20,1X24X12 03

60030023000

$4.11

14

INT TORX FLAT HEAD M 5X10 8.8

0019050103

$2.05

15

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

1

ENG CASE CPL. W.BEARINGS 05

60030000144

$1,746.12

2

STUD M10X161 06

60030043100

$12.05

3

STUD M 6X101 10.9 03

60030043010

$5.23

4

OIL FILTER COVER RACING

59038041000

$14.02

5

O-RING 40,00X2,50 NBR 70

0770400025

$2.05

6

HH COLLAR SCREW M 5X16 WS=8

0015050163

$2.05

16

JET 60 DELLORTO M6X0,75

59030054000

$13.08

18

OIL INJECT.TUBE CURVED ''70''

60030064000

$11.87

19

ENGINE CASE GASKET 0,5MM 05

60030039100

$21.87

20

CHAIN SPROCKET COVER CPL. 03

60030060044

$13.83

21

CHAIN FAIL. PROTECTION LC8 03

60030047000

$21.78

22

ADAPTER F. HYDR. CLUTCH 03

60032063000

$7.28

25

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

26

Self lock. nut DIN985-M6-A2

0985060003

$2.05

27

OIL DRAIN PLUG M10X1,5 AH-WS=6

49030029000

$5.79

28

sealing ring DIN 7603 10x14x1

0603100141

$2.05

29

REDUCING JET ''30'' M6X0,75

60038029200

$17.85

30

HH COLLAR SCREW M 6X40 WS=8

0015060403

$3.08

31

HH COLLAR SCREW M 6X60 WS=8

0015060603

$3.08

32

HH COLLAR SCREW M 6X65 WS=8

0015060653

$2.05

33

HH COLLAR SCREW M 6X70 WS=8

0015060703

$3.08

34

HH COLLAR SCREW M 6X75 WS=8

0015060753

$3.08

37

HH COLLAR SCREW M 6X90 WS=8

0015060903

$1.73

39

THREAD PIN DIN916 M5X4-45H

0916050042

$9.06

54

BRACKET FOR BEARING INSERT 05

60030084000

$8.01

55

HH COLLAR SCREW M 5X12 WS=8

0015050123

$3.08

99

GASKET SET CPL. 03

60030099000

$435.98

7

PLUG SCREW M14X1,5 ALU AH

60038033050

$11.12

8

CU-SEAL RING 14X20X1,5 LC8 02

0603142016

$3.08

9

INT. TORX OVAL HEAD M 5X10 8.8

0018050103

$1.49

10

DRAIN PLUG W. MAGNET

58038019050

$18.99

11

CU-SEAL RING DIN7603-22X27X2

58038017100

$3.08
