CYLINDER HEAD FRONT

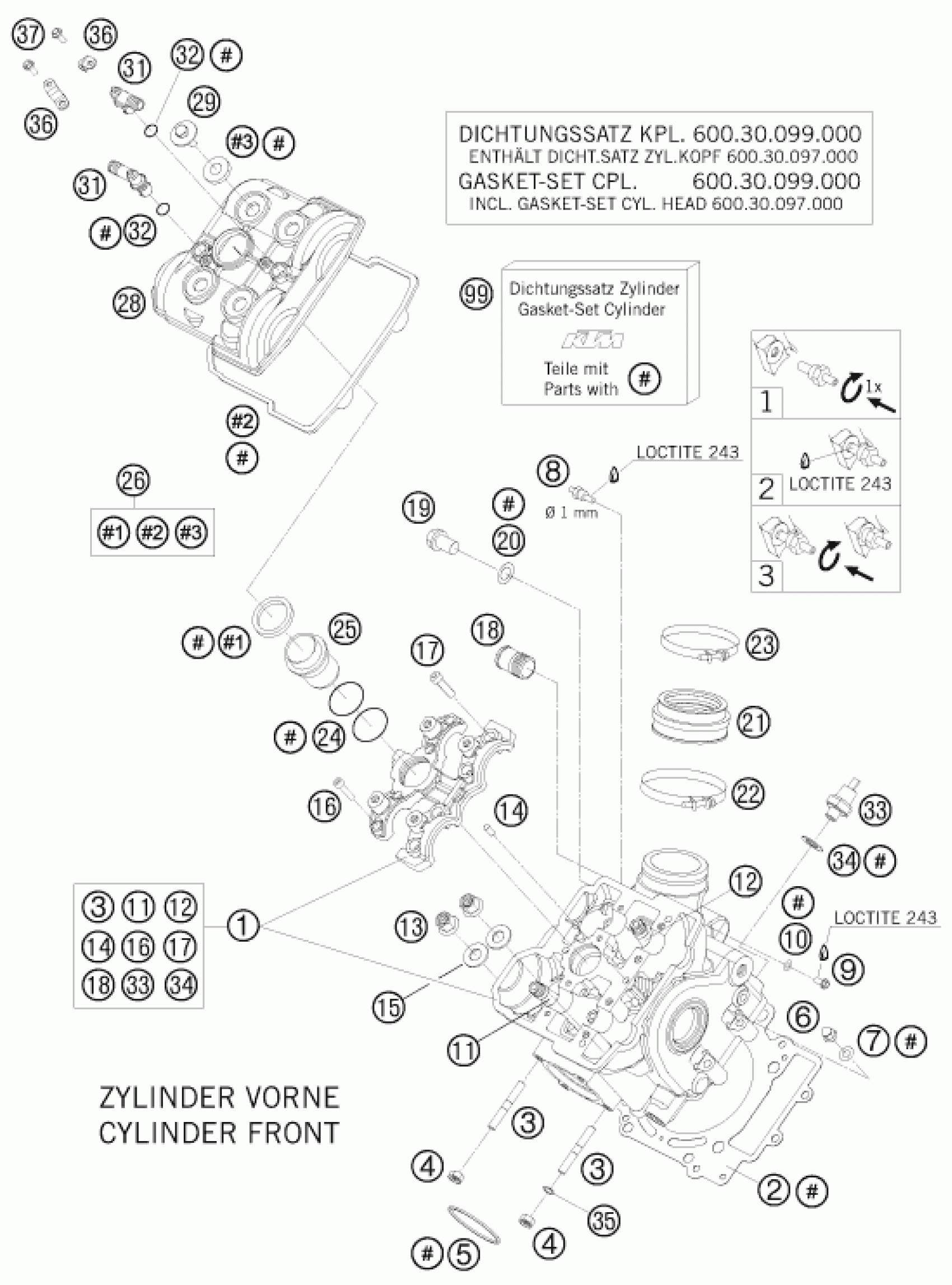

KTM 990 ADVENTURE BLACK ABS 2008 CYLINDER HEAD FRONT Diagram
#
Description
Price
1
CYLINDER HEAD CPL. FRONT
60136020044
$620.38
2
CYLINDER HEAD GASKET 0,5 101MM
60030036000
$53.57
3
STUD M 8X16 10.9
0835080165
$3.08
4
self-locking nut M8 Cu
51010086100
$3.08
5
Exhaust gasket 05
61005005000
$10.00
6
CAP NUT M6 STAINLESS STEEL
61230045000
$2.05
7
WASHER DIN0125-A 6,4
0125060003
$1.49
8
VACUUM CONECTION 2006
61036023100
$10.46
9
HH COLLAR SCREW M 6X10 WS=8
0015060103
Unavailable
10
CU-SEAL RING DIN7603-6X10X1
0603061001
Unavailable
11
VALVE GIUDE OUTLET '05
60036026100
$29.07
12
VALVE GIUDE OUTLET '05
60036025100
$11.40
13
hex collar nut M10 WS13
60036078200
$3.08
14
needle roller DIN 5402 5x9.8
0402050980
$1.49
15
SHIM 10,2X19X1,5MM 05
60036078050
$3.08
16
AH SCREW DIN0912-M 6X25 10.9
0912060255
$1.49
17
AH SCREW DIN7984-M 8X30 10.9
0984080305
$1.49
18
SCREW IN NOZZLE M20X1,5
58030010200
$8.87
19
threaded plug DIN 908 M12x1.5
0908120153
$4.11
20
CU-seal ring DIN7603-12X18X1.5
58038022000
$2.05
21
RUBBERSLEEVE INTAKE FLANGE 05
61036044000
$34.31
22
HOSE CLAMP GEMI 66MM 05
61036048000
$9.53
23
Hose clamp GEMI 63mm 05
61036047000
$7.56
24
O-RING 29,87X1,78 VITON
0770298178
$2.05
25
INSERT SPARK-PLUG SHAFT LC8 03
60036075000
$21.03
26
VALVE COVER GASKET SET FR+RR
60036099000
$32.44
28
VALVE COVER FRONT 03
60036052000
$53.36
29
collar screw M 6 WS=10 03
60036052020
$3.08
31
ANGLE CONNECTOR LC8 03
60038082000
$2.05
32
O-RING 8X2 SILICONE
0770080020
$1.49
33
OIL-PRESSURE SWITCH LC8 04
60038091100
$20.66
34
sealing ring DIN 7603 10x14x1
0603100141
$2.05
35
SPACER BUSH. 8,5X15X7,5 05
61005009000
$5.23
36
ANGLE CONNECTOR BRACKET PANEL
60038082050
$6.07
37
SPECIAL SCREW M 5,0X10
0009050103
$2.05
99
GASKET SET CYL. HEAD KPL. 03
60030097000
$283.20
