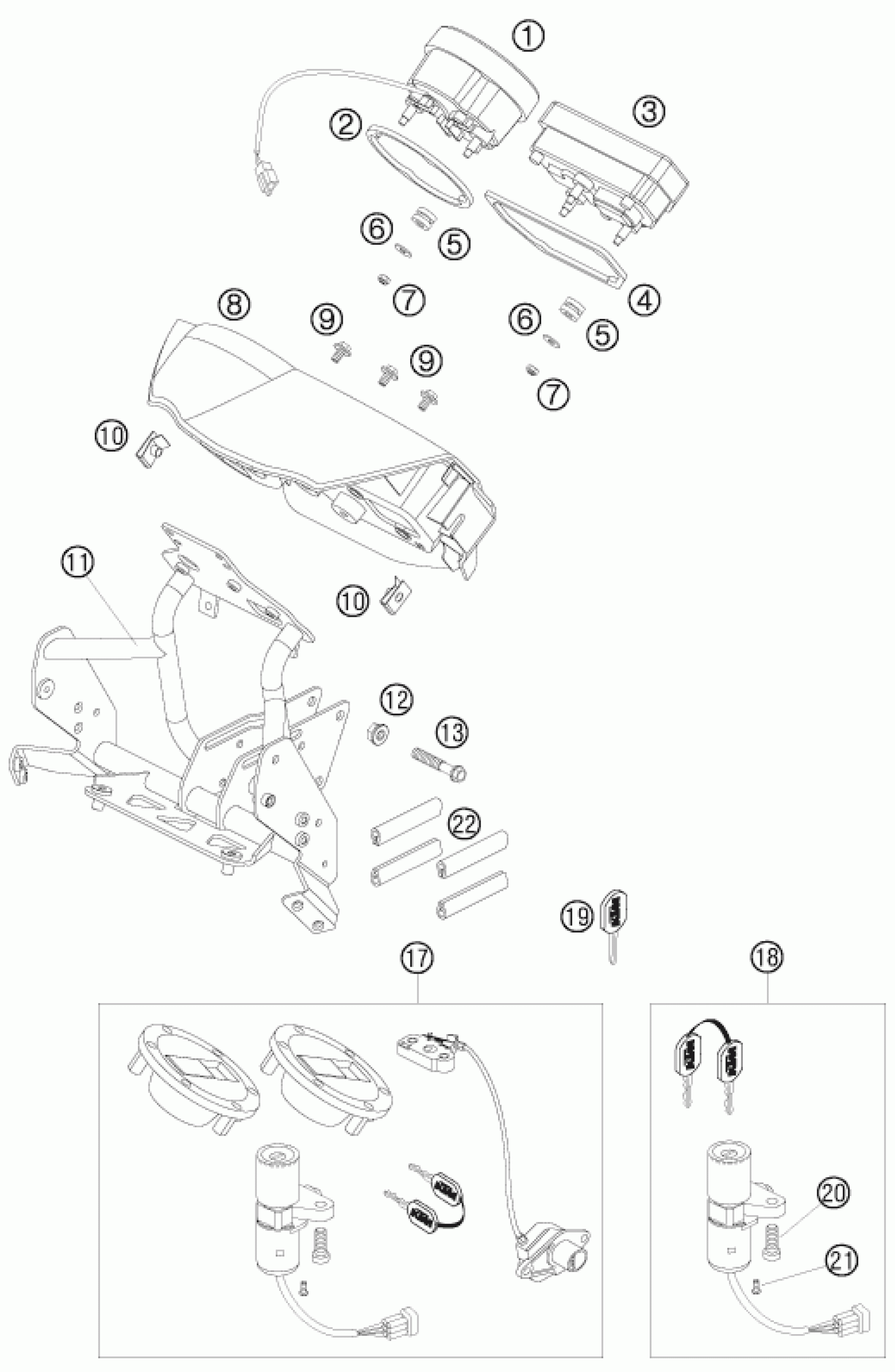

KTM 990 ADVENTURE BLACK ABS 2006 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

7

Self locking nut DIN 985 M5

0985050003

Unavailable

8

INSTRUMENT COVER ABS 06

60114070000

Unavailable

9

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

10

clip nut M6

54603048100

Unavailable

11

COCKPIT SUPPORT 06

60114010000

Unavailable

12

Self locking nut M8 10.9

54310086200

Unavailable

13

HH COLLAR SCREW M 8X45 WS=10

0015080453

Unavailable

17

LOCK SYSTEM LC8 ADV. 03

60011066044

Unavailable

18

IGNITION LOCK LC8 ADV. 03

60011066000

Unavailable

19

KEY BLANK LC4/DUKE/LC8

40011166100

Unavailable

20

TAMPERPROOF SCREW F. IGN. LOCK

60011064000

Unavailable

21

FLAT HEAD SCREW DIN7985-M 4X12

0985040123

Unavailable

22

EDGE PROTECTOR 14X9,5X66 MM 06

60114010070

Unavailable

1

REV COUNTER LC8 03

60014075000

Unavailable

2

DAMPING RING SPEEDOMETER 03

60014068100

Unavailable

3

DIGITAL SPEEDOMETER 05

61014069000

Unavailable

4

DAMPING RING TACHOMETER 03

60014068000

Unavailable

5

rubber grommet 16x10.8x3

58214069051

Unavailable

6

washer DIN 9021 A - 5.3

0021050003

Unavailable
